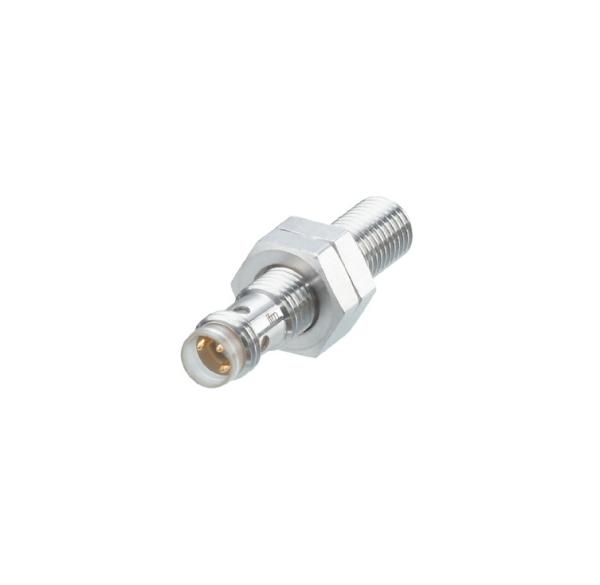

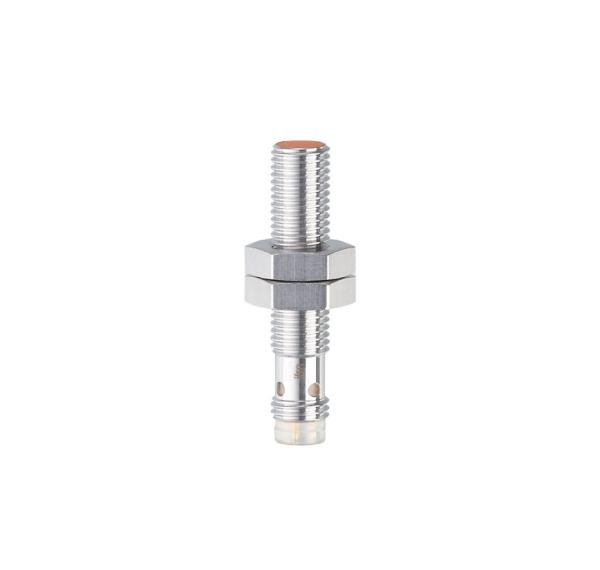

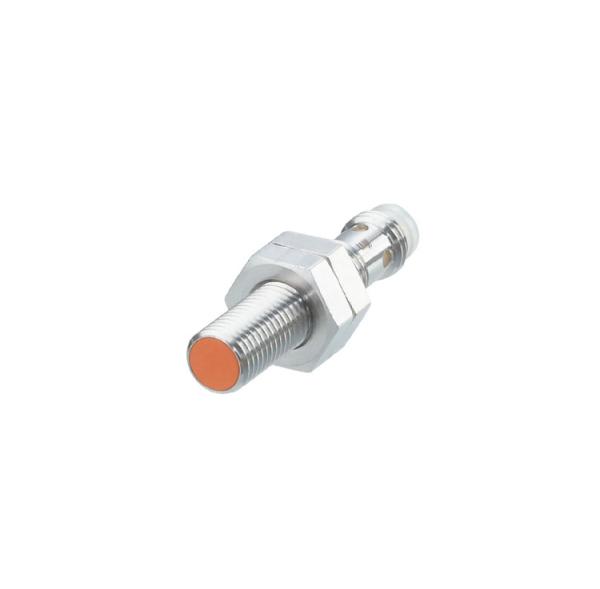

IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338
IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338
IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338
IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338
IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338
IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338
Specifications
Brand Name :
IFM
Model Number :
IE5338
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
$90/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
70*40*40mm
Electrical design :
PNP/NPN
Dimensions[mm] :
M8 x 1 / L = 40
Weight[g] :
16.5
Description
Product characteristics
Electrical design PNP/NPN
Output function normally open
Sensing range [mm] 3
Housing threaded type
Dimensions [mm] M8 x 1 / L = 40
Electrical data
Operating voltage [V] 10...30 DC
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN
Output function normally open
Max. voltage drop switching
output DC		 [V] 3.5
Minimum load current [mA] 2; (only in 2-wire operation)
Max. leakage current [mA] 0.5; (only in 2-wire operation)
Permanent current rating of
switching output DC		 [mA] 100
Switching frequency DC [Hz] 800
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range [mm] 3
Real sensing range Sr [mm] 3 ± 10 %
Operating distance [mm] 0...2.4
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr] 1...20
Switch point drift [mm] -10...10
Operating conditions
Ambient temperature [°C] 0...60
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IE5338-02 — 13.04.2023 —
