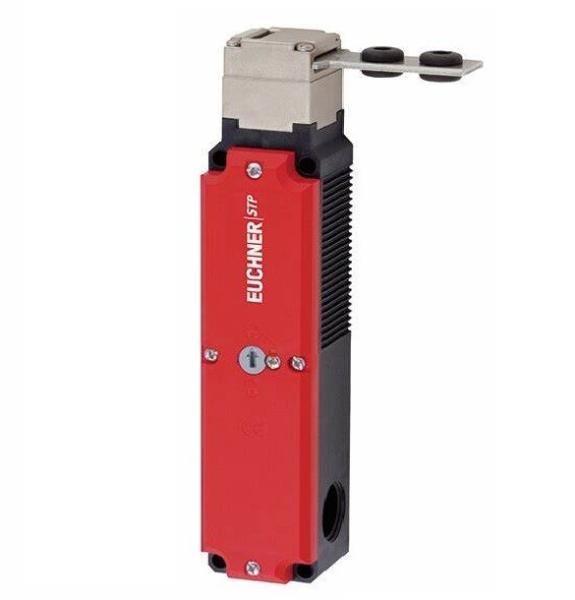

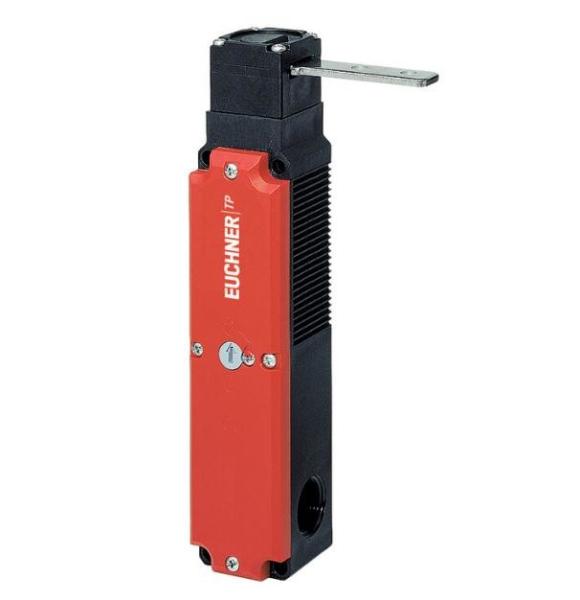

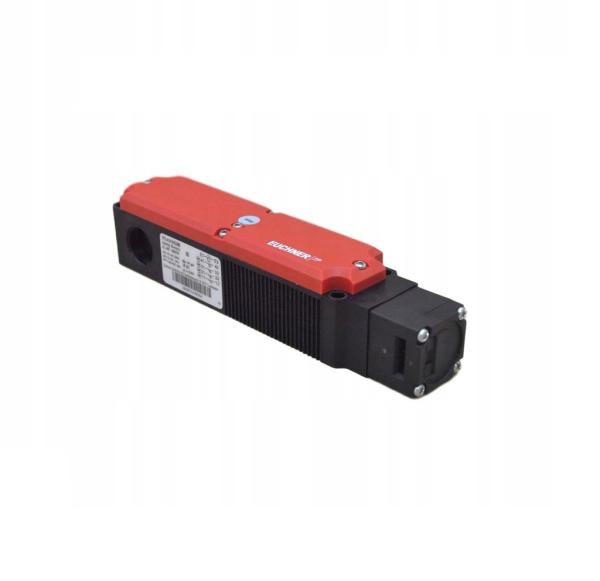

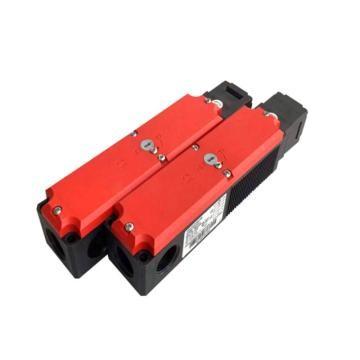

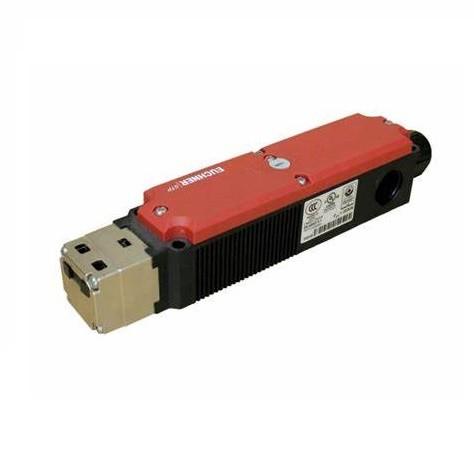

Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact
Specifications
Brand Name :
Euchner
Model Number :
TP3-2131A024M
Certification :
UL,CCC,etc.
Place of Origin :
Germany
MOQ :
1
Price :
variable
Payment Terms :
T/T
Supply Ability :
100PCS/MONTHS
Delivery Time :
Negotiate
Packaging Details :
Carton
Manufacturer :
Euchner
Product NO. :
TP3-2131A024M
Product type :
Safety switch TP
Warranty :
1 Year
Moq :
1 Set
Description

Euchner TP3-2131A024M (ORDER NO. 084142) Safety switch TP with door monitoring contact

Specification

Part Number: TP3-2131A024M
Manufacturer: Euchner
Condition : Brand New
Warranty : 12 months
Product Type Safety switch TP

Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact

Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact

Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact

Euchner TP3-2131A024M ORDER NO. 084142 Safety Switch TP With Door Monitoring Contact

Electrical connection values

Power consumption 8 W
Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 4 A 24 V
AC-15 4 A 230 V
Short circuit protection according to IEC 60269-1 4A gG
Solenoid operating voltage
AC/DC 24 V -15% ... +10%
Solenoid duty cycle 100 %
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Approach speed max. 20 m/min
Connection type
3 x M20 x 1.5
Number of door position NC contacts 1
Number of guard lock monitoring NO contacts 1
Number of guard lock monitoring positively driven contacts 2
Extraction force 20 N
Actuating force 10 N
Installation orientation any
Mechanical life 1 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... +55 °C
Material
Contact Silver alloy, gold flashed
Housing Reinforced thermoplastic
Locking force Fmax 1300 N
Locking force FZh 1000 N
Guard locking principle Closed-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10D Mission time
Monitoring of the guard position 3x106 20 y
Important! Values valid at DC-13 100 mA/24V
Monitoring of guard locking 3x106 20 y
Important! Values valid at DC-13 100 mA/24V
PL Maximum SIL Category Mission time
Control of guard locking Depending on external control of guard locking 20 y

In combination with actuator ACTUATOR-P-GNT

Horizontal overtravel 7 mm

In combination with actuator ACTUATOR-P-GT

Horizontal overtravel 2 mm
Vertical overtravel 1.5 mm
