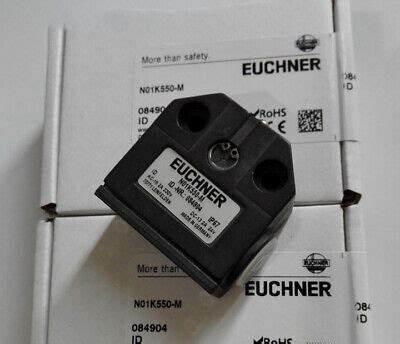

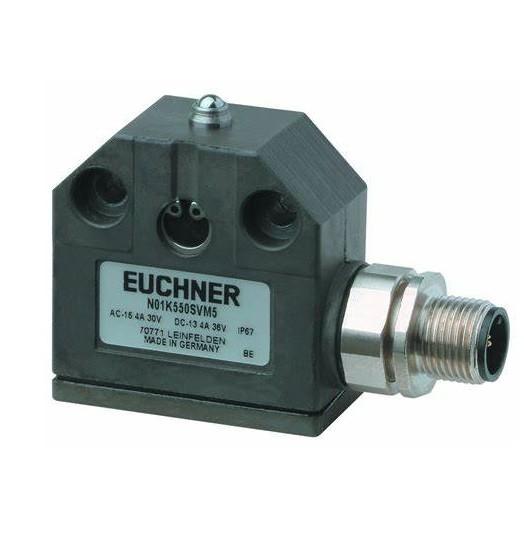

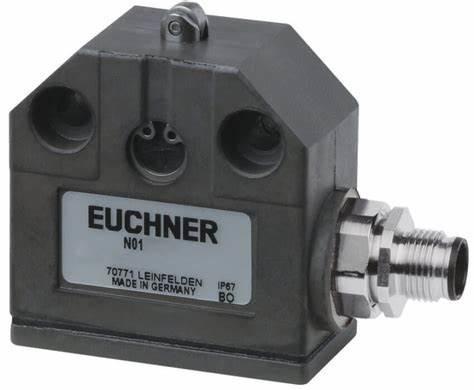

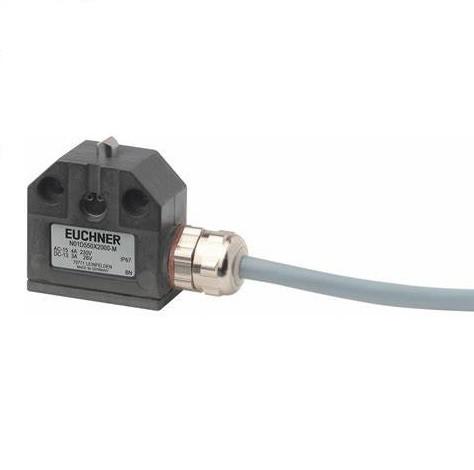

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger
Specifications
Brand Name :
Euchner
Model Number :
N01K550-M
Certification :
UL,CCC,etc.
Place of Origin :
Germany
MOQ :
1
Price :
variable
Payment Terms :
T/T
Supply Ability :
100PCS/MONTHS
Delivery Time :
Negotiate
Packaging Details :
Carton
Manufacturer :
Euchner
Product NO. :
N01K550-M
Product type :
Precision single limit switch
Warranty :
1 Year
Moq :
1 Set
Description

Euchner N01K550-M (ORDER NO. 084904) Precision single limit switch N01, ball plunger

Specification

Part Number: N01K550-M
Manufacturer: Euchner
Condition : Brand New
Warranty : 12 months
Product Type Precision single limit switch

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Electrical connection values

Connection cross section 0.14 ... 1 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 2 A 24 V
AC-15 2 A 230 V
Short circuit protection according to IEC 60269-1 6A gG
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 6 A

Mechanical values and environment

Approach speed 0.01 ... 8 m/min
Connection type
1 x M12 x 1.5
Number of door position NC contacts 1 Changeover contact
Number of door position NO contacts 1
Actuating element
Steel ball D ball = 4 mm Ball plunger
Actuating force 15 ... 20 N
Installation orientation any
Mechanical life 10 x 10⁶
Switching principle Changeover contact with snap-action function
Degree of protection IP67
Ambient temperature -5 ... +80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Cooperative Brand

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Packaging & Shipping

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball PlungerEuchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Why Choose Us

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Euchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball PlungerEuchner N01K550-M (ORDER NO. 084904) Precision Single Limit Switch N01, Ball Plunger

Xiamen ZhiCheng Automation Technology Co., Ltd
Xiamen ZhiCheng Automation Technology Co., Ltd it is a leading global supplier of control system components. We specialize in control systems and drives.
With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts. We have tens of thousands of spare partsand spare parts warehouse . Products and services to serve for installing of users control system,Distributed control systems, programmable controllers, panel controller and drive!
We major in DCS system,Sensor,PLC,Connector,Valve, and Instrument,MAGNETRON,RO Membrane. With many years of experience in the industrial sector, we consistently deliver the highest quality of spare parts.which make sure that all this jobs are perfectly.
If you have any further questions, please don't hesitate to contact us.
