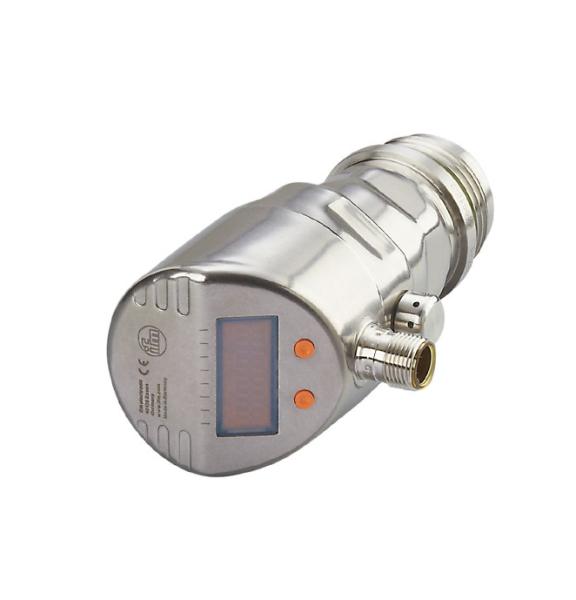

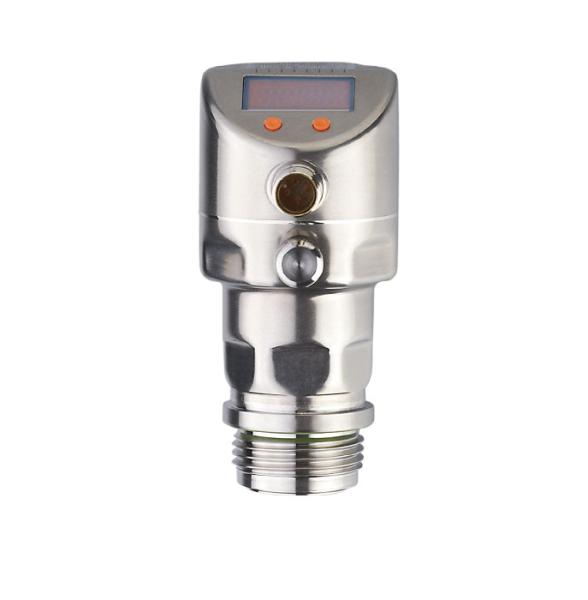

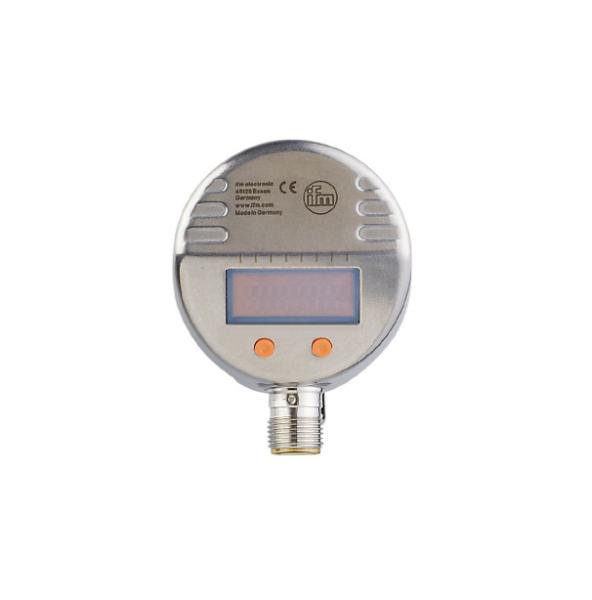

PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
PI2794 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating
Specifications
Brand Name :
IFM
Model Number :
PI2794
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
595$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
110*60*60mm
System :
gold-plated contacts
Min. bursting pressure :
150 bar 2175 psi 15 MPa
Pressure rating :
50 bar 725 psi 5 MPa
Weight[g] :
351.8
Dimensions[mm] :
Ø 50 / L = 105.8
Description
Product characteristics
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Measuring range -1...10 bar -14.5...145 psi -0.1...1 MPa
Process connection threaded connection G 1 external thread Aseptoflex Vario
Application
System gold-plated contacts
Application flush mountable for the food and beverage industry
Media viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C] -25...125; (145 max. 1h)
Min. bursting pressure 150 bar 2175 psi 15 MPa
Pressure rating 50 bar 725 psi 5 Mpa
Vacuum resistance [mbar] -1000
Type of pressure relative pressure; vacuum
No dead space yes
50 bar 725 psi 5 MPa
ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PI2794-02 — 25.07.2022 —
PI2794
Flush pressure sensor with display
PI-010-REA01-MFRKG/US/ /P
Electrical data
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Integrated watchdog yes
2-wire
Operating voltage [V] 20...32 DC
Current consumption [mA] 3.6...21
Power-on delay time [s] 1
3-wire
Operating voltage [V] 18...32 DC
Current consumption [mA] < 45
Power-on delay time [s] 0.5
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Number of analog outputs 1
Analog current output [mA] 4...20, invertible; (scalable)
Short-circuit protection yes
Type of short-circuit
protection		 yes (non-latching)
Overload protection yes
2-wire
Max. load [Ω] 300
3-wire
Max. voltage drop switching
output DC		 [V] 2
Permanent current rating of
switching output DC		 [mA] 250
Switching frequency DC [Hz] 125
Max. load [Ω] (Ub - 10 V) / 20 mA
ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PI2794-02 — 25.07.2022 —
PI2794
Flush pressure sensor with display
PI-010-REA01-MFRKG/US/ /P
Measuring/setting range
Measuring range -1...10 bar -14.5...145 psi -0.1...1 MPa
Set point SP -0.98...10 bar -14.2...145 psi -0.098...1 MPa
Reset point rP -1...9.98 bar -14.5...144.7 psi -0.1...0.998 MPa
Analog start point -1...7.5 bar -14.5...108.7 psi -0.1...0.75 MPa
Analog endpoint 1.5...10 bar 21.8...145 psi 0.15...1 MPa
Insteps of 0.01 bar 0.1 psi 0.001 MPa
Factory setting SP1 = 2.50 bar rP1 = 2.30 bar
SP2 = 7.50 bar rP2 = 7.30 bar
ASP = 0.00 bar AEP = 10.00 bar
Accuracy / deviations
Switch point accuracy
[% of the span]		 < ± 0,2; (Turn down 1:1)
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation
[% of the span]		 < ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and
repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span] < ± 0,15; (Turn down 1:1)
Hysteresis deviation
[% of the span]		 < ± 0,15; (Turn down 1:1)
Long-term stability
[% of the span]		 < ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero
point
[% of the span / 10 K]		 < ± 0,05; (0...70 °C)
Temperature coefficient span < ± 0,15; (0...70 °C)
[% of the span / 10 K]
Reaction times
Damping process value dAP [s] 0...30
Damping for the analog
output dAA		 [s] 0.01...99.99
2-wire
Step response time analog [ms] 45
output
3-wire
Min. response time of
switching output (dAP)		 [ms] 3
Step response time analog
output		 [ms] 7
ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PI2794-02 — 25.07.2022 —
PI2794
Flush pressure sensor with display
PI-010-REA01-MFRKG/US/ /P
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.0
Profiles no profile
SIO mode yes
Required master port class A
Process data analog 1
Process data binary 2
Min. process cycle time [ms] 2.3
Supported DeviceIDs Type of operation DeviceID
default 157
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 67; IP 68; IP 69K
Tests / approvals
EMC DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years] 160
Note on approval Factory certificate available as download at www.factory-certificate.ifm
Mechanical data
Weight [g] 351.8
Material stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts) ceramics (99.9 % Al2O3); stainless steel (1.4435 /
316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles 100 million
Process connection threaded connection G 1 external thread Aseptoflex Vario
Displays / operating elements
Display unit LED, green
Display Switching status LED, yellow
Function display alphanumeric display, 4-digit
Measured values alphanumeric display, 4-digit
Display unit bar; psi; MPa; % of the span
Remarks
Pack quantity 1 pcs.
Electrical connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
