PM1709

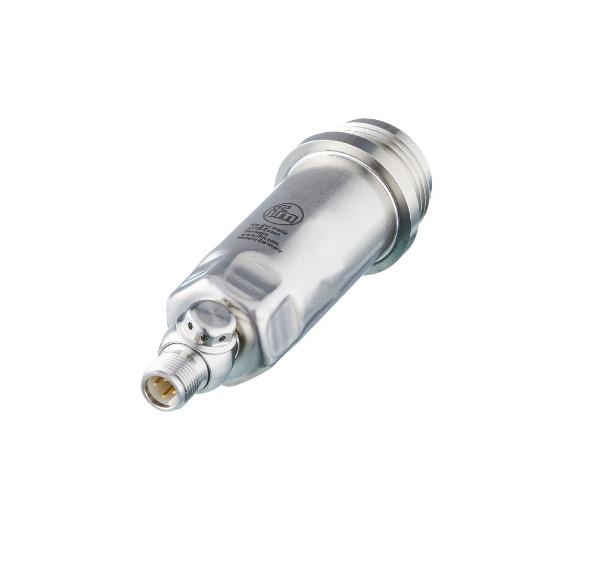

Flush pressure sensor
PM-1-1BREA01-E-ZVG/US
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Integrated watchdog yes
2-wire
Current consumption [mA] 3.5...21.5
Power-on delay time [s] 1
3-wire
Current consumption [mA] < 45
Power-on delay time [s] 0.5
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs 2
Output signal analogue signal; IO-Link; (configurable)
Number of digital outputs 1; (IO-Link)
Number of analogue outputs 1
Analogue current output [mA] 4...20; (scalable)
Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
Short-circuit proof yes
Overload protection yes
Measuring/setting range
Measuring range -1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
Analogue start point -1000...600 mbar -14.5...8.7 psi -100...60 kPa
Analogue endpoint -600...1000 mbar -8.7...14.5 psi -60...100 kPa
Insteps of 1 mbar 0.01 psi 0.1 kPa
Factory setting ASP = -1000 mbar AEP = 1000 mbar
Accuracy / deviations
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation
[% of the span]		 < ± 0,2; (linearity incl. hysteresis and repeatability,
limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span] < ± 0,15; (Turn down 1:1)
Hysteresis deviation < ± 0,15; (Turn down 1:1)
[% of the span]
Long-term stability
[% of the span]		 < ± 0,1; (Turn down 1:1; per year)
Total deviation over
temperature range		 Temperature range total deviation
-25...15 °C Characteristics deviation ± 0,05 % of the
span / 10 K
15...80 °C Characteristics deviation
80...150 °C Characteristics deviation ± 0,1 % of the span /
10 K
Notes on the accuracy /
deviation		 for further details see section Diagrams and graphs
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PM1709-01 — 31.07.2023 —
PM1709
Flush pressure sensor
PM-1-1BREA01-E-ZVG/US
Response times
Damping for the analogue [s] 0...4
output dAA
2-wire
Step response time analogue [ms] 30
output
3-wire
Step response time analogue [ms] 7
output
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
SIO mode no
Required master port type A
Process data analogue 3
Min. process cycle time [ms] 3.2
IO-Link resolution pressure [mbar] 0.5
IO-Link functions (acyclical) application specific tag; internal temperature
Supported DeviceIDs Type of operation DeviceID
default 667
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 67; IP 68; IP 69K
Tests / approvals
EMC DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years] 323
Note on approval factory certificate available as download at www.factory-certificate.ifm
UL approval UL Approval no. J021
Mechanical data
Weight [g] 306.9
Housing cylindrical
Dimensions [mm] Ø 30.2 / L = 111
Materials stainless steel (316L/1.4404); PBT
Materials (wetted parts) ceramics (99.9 % Al2O3); stainless steel (316L/1.4435);
surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles 100 million
Tightening torque [Nm] 35
Process connection threaded connection G 1 external thread Aseptoflex Vario
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PM1709-01 — 31.07.2023 —
PM1709
Flush pressure sensor
PM-1-1BREA01-E-ZVG/US
Remarks
Pack quantity 1 pcs.
Electrical connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Connection
1 connection for 2-wire operation ( analogue )
2 connection for 3-wire operation ( analogue / IO-Link )
OUT1 : IO-Link
OUT2 : analogue output
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PM1709-01 — 31.07.2023 —
PM1709
Flush pressure sensor
PM-1-1BREA01-E-ZVG/US
Diagrams and graphs
ambient temperature influence on X temperature
Y total deviation
the accuracy
