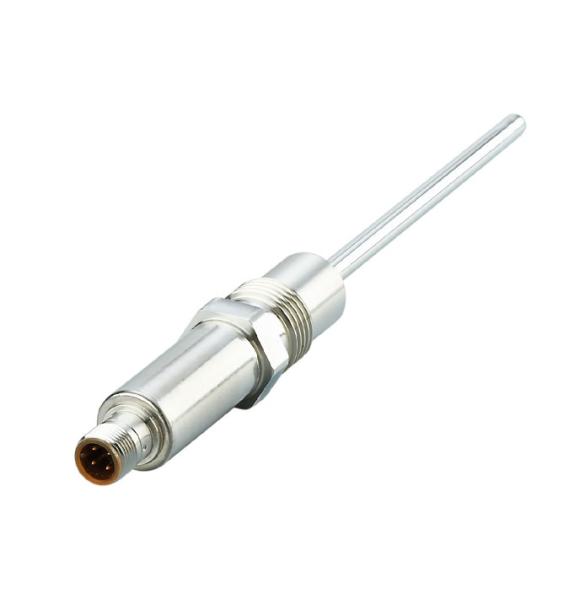

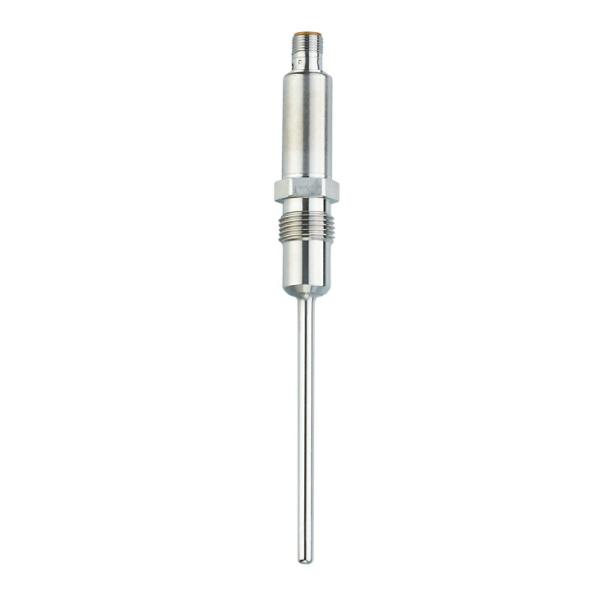

TA2532 Temperature Transmitter Ifm Robust Stainless Steel Housing With High Protection Rating High Pressure Resistance
TA2532 Temperature Transmitter Ifm Robust Stainless Steel Housing With High Protection Rating High Pressure Resistance
TA2532 Temperature Transmitter Ifm Robust Stainless Steel Housing With High Protection Rating High Pressure Resistance
TA2532 Temperature Transmitter Ifm Robust Stainless Steel Housing With High Protection Rating High Pressure Resistance
TA2532 Temperature Transmitter Ifm Robust Stainless Steel Housing With High Protection Rating High Pressure Resistance
TA2532 Temperature Transmitter Ifm Robust Stainless Steel Housing With High Protection Rating High Pressure Resistance
Specifications
Brand Name :
IFM
Model Number :
TA2532
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
140$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
110*60*60mm
Measuring element :
1 x Pt 1000; (to DIN EN 60751, class A)
Probe length L[mm] :
100
Weight[g] :
231.5
Dimensions[mm] :
Ø 18.7 / L = 198.8
Description
Product characteristics
Number of inputs and outputs Number of analogue outputs: 1
Measuring range [°C] -50...200
Communication interface IO-Link
Process connection threaded connection G 1/2 external thread sealing cone
Installation length EL [mm] 100
Application
Measuring element 1 x Pt 1000; (to DIN EN 60751, class A)
Media liquids and gases
Pressure rating [bar] 160
Pressure rating [MPa] 16
Vacuum resistance [mbar] -1000
Vacuum resistance [MPa] -0.1
MAWP (for applications [bar] 160
according to CRN)
Electrical data
Operating voltage [V] 18...32 DC; ("supply class 2" tocULus)
Current consumption [mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 2
Inputs / outputs
Number of inputs and outputs Number of analogue outputs: 1
Outputs
Total number of outputs 1
Output signal analogue signal; IO-Link; (configurable)
Number of analogue outputs 1
Analogue current output [mA] 4...20
Max. load [Ω] 250; ((18...19 V); 19...32 V: 300 Ω)
Short-circuit protection yes
Overload protection yes
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TA2532-00 — 13.04.2023 —
TA2532
Temperature transmitter
TA-100CLER12- - /US
Measuring/setting range
Probe length L [mm] 100
Measuring range
Factory setting		 [°C] -50...200
0...200 °C
Resolution
Resolution of analogue [K] 0.04
output
Accuracy / deviations
Precision analogue output [K] ± 0,3 + (± 0,1 % MS)
Temperature coefficient
[% of the span / 10 K]		 0,1; (in case of deviation from the reference condition 25 ± 5 °C)
Response times
Dynamic response T05 / T09 [s] < 0,5 / < 2
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
Operating conditions
Ambient temperature [°C] -25...80
Note on ambient temperature at medium temperature: < 160 °C
-25...60 °C
at medium temperature: < 200 °C
Storage temperature [°C] -40...100
Protection IP 67; IP 68; IP 69K
Tests / approvals
EMC DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance DIN IEC 68-2-6 10 g (10...2000 Hz)
MTTF [years] 232
Note on approval factory certificate available as download at www.factory-certificate.ifm
UL approval UL Approval no. K002
Mechanical data
Weight [g] 231.5
Housing cylindrical
Dimensions [mm] Ø 18.7 / L = 198.8
Materials stainless steel (316L/1.4404); PEI; FKM
Materials (wetted parts) stainless steel (316L/1.4404) electropolished
Tightening torque [Nm] 30...50
Process connection threaded connection G 1/2 external thread sealing cone
Surface characteristics Ra/Rz
of the wetted parts		 Ra: < 0.8
Probe diameter [mm] 6
Installation length EL [mm] 100
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TA2532-00 — 13.04.2023 —
TA2532
Temperature transmitter
TA-100CLER12- - /US
Remarks
Remarks MS = set measuring span
The values for accuracy apply to flowing water.
Pack quantity 1 pcs.
