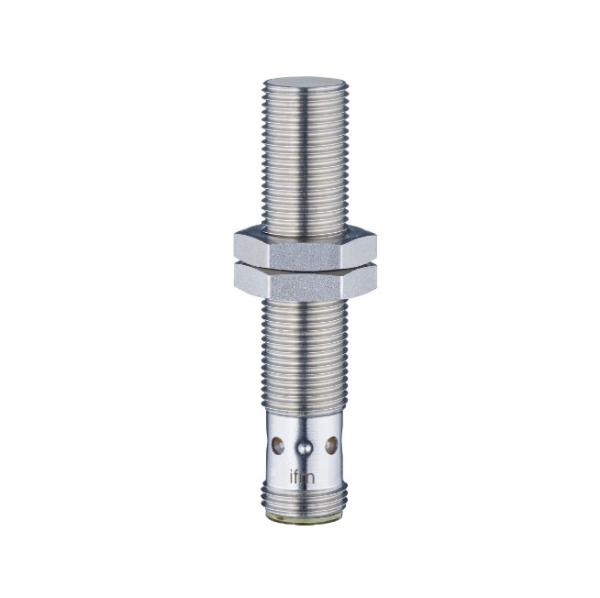

IFS304 Inductive Sensor Ifm Electronic For Industrial Mobile Cooling And Lubricating
IFS304 Inductive Sensor Ifm Electronic For Industrial Mobile Cooling And Lubricating
IFS304 Inductive Sensor Ifm Electronic For Industrial Mobile Cooling And Lubricating
IFS304 Inductive Sensor Ifm Electronic For Industrial Mobile Cooling And Lubricating
IFS304 Inductive Sensor Ifm Electronic For Industrial Mobile Cooling And Lubricating
IFS304 Inductive Sensor Ifm Electronic For Industrial Mobile Cooling And Lubricating
Specifications
Brand Name :
IFM
Model Number :
IFS304
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
70$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
103 x 45 x 46mm
Output function :
normally open
Dimensions[mm] :
M12 x 1 / L = 60
Weight[g] :
26.9
Description
Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 4
Housing threaded type
Dimensions [mm] M12 x 1 / L = 60
Application
Special feature Gold-plated contacts; Increased sensing range;
Correction factor K = 1; Magnetic-field immune
Application material handling; refrigerated warehouse / shock freezing; Suitable for industrial,
mobile, cooling and lubricating applications; Industrial applications / factory automation
Magnetic-field immune yes
Max. magnetic field immunity [mT] 300
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 20
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching
output DC		 [V] 2.5
Permanent current rating of
switching output DC		 [mA] 100
Switching frequency DC [Hz] 2000
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range [mm] 4
Real sensing range Sr [mm] 4 ± 10 %
Operating distance [mm] 0...3.24
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IFS304-00 — 13.04.2023 —
IFS304
Inductive sensor
IFK3004BBPKG/K1/V4A/US-104
Increased sensing range yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1
Hysteresis [% of Sr] 3...15
Switch point drift [% of Sr] -10...10
Correction factor K = 1 yes
Operating conditions
Ambient temperature [°C] -40...85
Protection IP 65; IP 66; IP 67; IP 68; IP 69K
Tests / approvals
EMC EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
Vibration resistance EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1
octave per minute, in 3 axes
Shock resistance EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every
direction of the 3 coordinate axes
Continuous shock resistance EN 60068-2-27 40 g 6 ms; 4000 shocks each in every
direction of the 3 coordinate axes
Fast temperature change EN 60068-2-14 Na TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = <
10 s; 50 cycles
Salt spray test EN 60068-2-52 Kb severity level 5 (4 test cycles)
MTTF [years] 473
Embedded software included yes
UL approval Ta -25...70 °C
Enclosure type Type 1
power supply Limited Voltage/Current
UL Approval no. A005
File number UL E174191
Mechanical data
Weight [g] 26.9
Housing threaded type
Mounting flush mountable
Dimensions [mm] M12 x 1 / L = 60
Thread designation M12 x 1
Materials stainless steel (316L/1.4404); sensing face: LCP white;
LED window: PEI; lock nuts: stainless steel (316L/1.4404)
