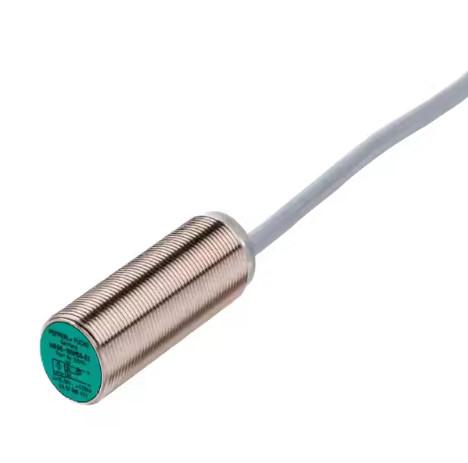

Pepperl+Fuchs NBB10-30GM50-E0 Inductive Proximity Sensor | 30mm Range, 10-30V DC, IP67, CE Certified for Material Handling Systems
Pepperl+Fuchs NBB10-30GM50-E0 Inductive Proximity Sensor | 30mm Range, 10-30V DC, IP67, CE Certified for Material Handling Systems
Pepperl+Fuchs NBB10-30GM50-E0 Inductive Proximity Sensor | 30mm Range, 10-30V DC, IP67, CE Certified for Material Handling Systems
Pepperl+Fuchs NBB10-30GM50-E0 Inductive Proximity Sensor | 30mm Range, 10-30V DC, IP67, CE Certified for Material Handling Systems
Pepperl+Fuchs NBB10-30GM50-E0 Inductive Proximity Sensor | 30mm Range, 10-30V DC, IP67, CE Certified for Material Handling Systems
Pepperl+Fuchs NBB10-30GM50-E0 Inductive Proximity Sensor | 30mm Range, 10-30V DC, IP67, CE Certified for Material Handling Systems
Specifications
Brand Name :
Pepperl+Fuchs
Model Number :
NBB10-30GM50-E0
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
205$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
100*100*100mm
Standard Target Plate :
100 mm x 100 mm
Manufacturer :
Siemens
Required Slots :
2
Metal Factor :
None
Condition :
100% Original
Isolation Voltage :
500V
Output Delay Time :
0.1 ms
Description

Exceptional Sensing Precision for Industrial Tasks

The Pepperl+Fuchs NBB10 - 30GM50 - E0 is an inductive proximity sensor engineered for outstanding non - contact metal detection. With a rated operating distance of 10 mm in flush mounting, it offers highly accurate positioning. Its 3 - wire DC PNP output (normally open) works within a 10 - 30 V DC voltage range. The sensor features a switching frequency of up to 400 Hz and a 5% hysteresis, which ensures stable signals even in high - speed industrial processes such as conveyor belt systems and robotic assembly lines.

Robust Build for Harsh Industrial Environments

Designed to withstand the rigors of industrial settings, the NBB10 - 30GM50 - E0 has a durable housing. It is made of high - quality materials and holds an IP67 protection rating, making it resistant to dust and water. The sensor can operate in a wide temperature range from - 25°C to + 70°C (ambient), and - 40°C to + 85°C (storage). Its compact M30 cylindrical design simplifies installation in various industrial machines, even in confined spaces.

Global Compatibility and Long - Term Reliability

The NBB10 - 30GM50 - E0 is designed for global industrial applications. It complies with international standards like EN IEC 60947 - 5 - 2. It has metal reduction factors that allow it to detect different types of metals effectively. With certifications such as cULus listing and RoHS compliance, it meets safety and environmental requirements. The sensor's long MTTFd and a 20 - year mission time ensure reliable performance over an extended period in non - safety - integrated systems.

Attribute

Details

General Information

Product Type

Inductive Proximity Sensor

Model

NBB10 - 30GM50 - E0

Manufacturer

Pepperl+Fuchs

Sensing Characteristics

Rated Operating Distance

10 mm (flush mounting)

Assured Operating Distance

0 - 8.1 mm

Metal Reduction Factors

Aluminum (0.5), Copper (0.42), Stainless Steel 304 (0.74), Brass (0.52)

Switching Function

Normally Open (NO)

Electrical Parameters

Supply Voltage

5 - 36 V DC

Output Type

3 - wire DC NPN

Nominal Operating Current

0 - 200 mA

Off - State Current

Max. 20 µA

No - Load Supply Current

≤ 10 mA

Voltage Drop

≤ 1 V

Switching Frequency

0 - 1100 Hz

Hysteresis

Typ. 5%

Electrical Protection

Reverse polarity protection; pulsing short - circuit protection

Indicators

LEDs

Multi - hole yellow LED for switching state indication

Mechanical Design

Housing Material

Brass, white bronze coated

Sensing Face Material

PBT, green

Dimensions

Length 67 mm, diameter 30 mm

Mass

156 g

Mounting

With nuts, M30, tightening torque 0 - 30 Nm

Connection Type

Connector plug, M12 x 1, 3 - pin

Environmental Ratings

IP Rating

IP65 / IP66 / IP67 / IP68

Operating Temperature Range

- 40 °C to + 85 °C

Storage Temperature Range

- 40 °C to + 85 °C

Certifications & Approvals

Standards

EN IEC 60947 - 5 - 2

Approvals

cULus listed, general purpose, class 2 power source; CCC approval not required for products rated ≤ 36 V; DNV GL TA00003 AK marine approval

Functional Safety

MTTFd

1707 a

Mission Time (Tm)

20 a

Diagnostic Coverage (DC)

0%
