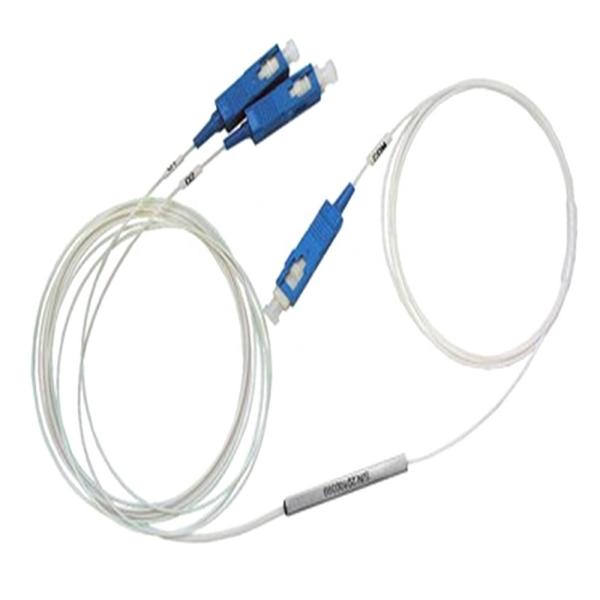

Steel Tube Fiber Optic Splitter With SC UPC Connector 1x2 Type Low Insertion Loss
Steel Tube Fiber Optic Splitter With SC UPC Connector 1x2 Type Low Insertion Loss
Steel Tube Fiber Optic Splitter With SC UPC Connector 1x2 Type Low Insertion Loss
Steel Tube Fiber Optic Splitter With SC UPC Connector 1x2 Type Low Insertion Loss
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
fiber optic splitter
Certification :
ISO9001:2008
MOQ :
50-249 Pieces
Price :
Negotiable
Product name :
fiber optic splitter
Application :
FTTH FTTB FTTX Network
Type :
Singlemode
Color :
White
Wavelength :
1260-1650nm
Fiber Type :
G657A G652D
Material :
PC ABS
Connector :
SC LC FC ST
Operating temperature :
40~+85
Selling Units :
Multiple of
Package size per batch  :
36X30X6 cm
Gross weight per batch :
2.11 kg
Package Type :
Plastic envelope packaging, carton packaging
Description
Product display

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Key Features:

1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength: 1260-1650nm

6) Wide Operating Temperature: -40°C - 85°C

7) High Reliability and Stability

Application :

1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

5) Local Areal Networks (LAN)
6) Fiber Communication Systems

Specification:
Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type

1x2

 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16
Insertion Loss (dB) Max. ≤4.2 ≤7.5 ≤10.6 ≤13.7 ≤17.2 ≤21 ≤7.8 ≤10.8 ≤13.9
Uniformity (dB) Max ≤0.6 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.5 ≤1.0 ≤1.5 ≤2.0
PDL(dB)Max <0.2 <0.2 <0.2 <0.3 <0.3 <0.4 <0.3 <0.3 <0.4
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -45~ +85
Storage Temperature (°C) -5~ +75
Fiber length 1m or custom length
Fiber Type Corning G656A1 or Fiberhome G657A1
Connector Type Custom specified

Power Handling (mW)

 300
Related Product

Steel Tube Fiber Optic Splitter With SC UPC Connector 1x2 Type Low Insertion Loss Steel Tube Fiber Optic Splitter With SC UPC Connector 1x2 Type Low Insertion Loss

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
