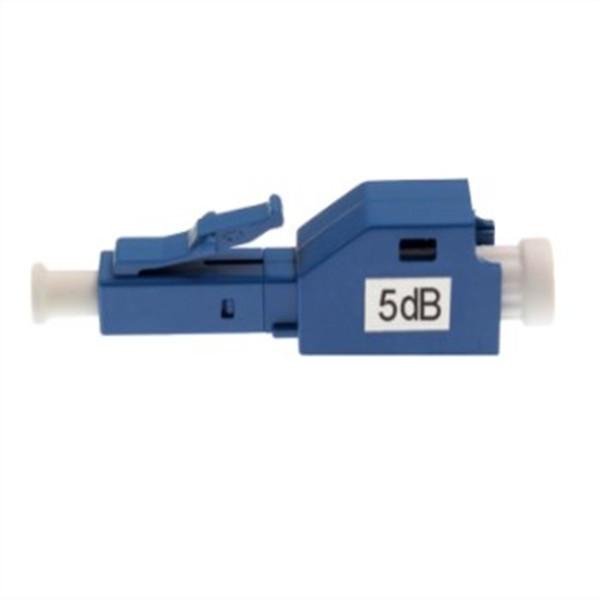

Singlemode ROHS LC UPC 5dB Fiber Optic Attenuator Male To Female
Singlemode ROHS LC UPC 5dB Fiber Optic Attenuator Male To Female
Specifications
Brand Name :
CY/OEM
Place of Origin :
Hubei
MOQ :
1-10
Price :
0.47-2.5usd/pcs Can negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western
Supply Ability :
50000/week
Delivery Time :
in 3 days
Packaging Details :
Pack according to customer requirements
values :
5dB
Certification :
IS09001-2015.ROHS
Model Number :
LC/UPC
Product name :
optical fiber attenuation,variable optical attenuator
Description

Singlemode ROHS LC UPC 5dB Fiber Optic Attenuator Male To Female

18dB Singlemode Male to Female LC / UPC Fiber Optic Attenuator , 3 / 20dB Optical Attenuator

Quick Detail:

Name: LC

values: 5dB

Return Loss:UPC >55dB APC >65dB

Brand Name: DYS/OEM

LC/UPC attenuator :

1: Fixed plug in optical attenuators (Fixed Build-out or Fixed Male to Female) use doped fiber to provide fixed level of optical attenuation.

2: Typical attenuation values are between 3 and 20 dB.

3: It is used in optical systems where the optical power from a source is too high for the test equipment in use.

4: Fixed plug type fiber attenuator provides a connector plug (male) and an adapter socket (female) to connect between fiber patch cord and fiber adapter.

5: Fixed plug type optical attenuator introduces an in-line fixed loss that will reduce the source power to an acceptable detection level.

6: The attenuation level should be stable with temperature and wavelength for a stable reliable system.

Detail:

Our Fixed plug type Optical Attenuators and our Fixed In-Line Optical Attenuators are devices that convert optical power into heat using specialty Metal Ion Doped Optical Fibers allowing the optical power to be attenuated to a desired level.

Specifications:

Attenuation Value 1dB ~ 30dB

Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)

Premium

Return Loss

UPC >55dB

APC >65dB

Attenuation

Accuracy

1 ~ 7 dB ±0.5dB

8 ~ 12 dB ±0.7dB

13 ~ 17 dB ±1.0dB

18 ~ 25 dB ±1.3dB

Maximum Optical Input Power 1000mW

Polarization Dependent Loss ≤0.1dB

Operating Temperature Range -40 to 75

Storage Temperature Range -40 to 85

Humidity 95%RH

Competitive advantages

Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly implements the ISO9001 quality management system. The company has good facilities and qualified human resource management personnel to ensure stable product quality and excellent performance; and with good after-sales service, it has won customers’ Trust, products are exported to Europe, America and Southeast Asia countries.
