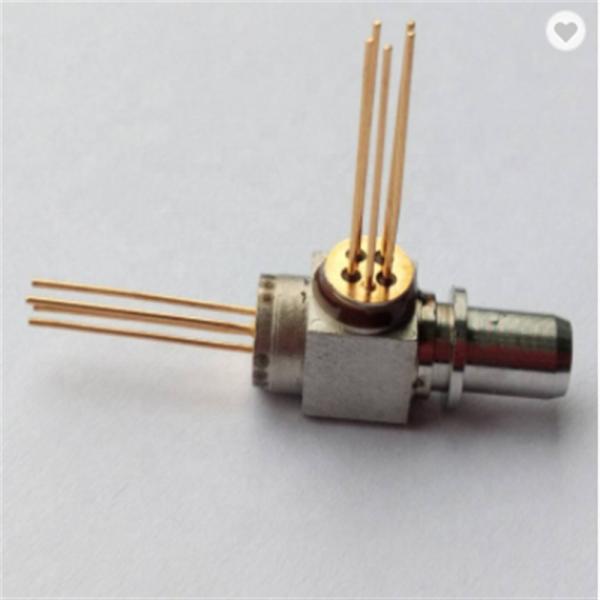

SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation
SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation
SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation
SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation
SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation
SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
bosa dfb 10g 1310
Certification :
ISO9001:2008
Supply Ability :
100000 Piece/Pieces per Month bosa dfb 10g 1310
Packaging Details :
Plastic box packaging or plastic bag packaging
MOQ :
10 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Product name :
bosa dfb 10g 1310
Application :
FTTH FTTB FTTX Network
Wavelength :
1310nm/1490nm/1550nm
Type :
BOSA
Power supply :
3.3V
Supply Current :
44mA
Single Ended Resp :
1.5uW
Operating temperature :
40~+85
Brand :
CY
Port :
Shanghai port Shenzhen port
Description
Product display
Features

High Responsivity

Small dark current

High reliability

Applications

FTTH,SDH,SONET

Optical&Electrical Characteristics

Parameters Symbol Min Typ Max Unit Test conditions
Power Supply Vcc 3.0 3.3 3.6 V
Supply Current Icc 44 60 mA no loads
Differential Responsivity Rd 1.4 3.0 mW/uW

Rload=100ohm

P=-18dBm,λ=1310nm
Single Ended Responsivity Rs 0.7 1.5 mV/uW

Rload=50ohm

P=-18dBm,λ1310nm
Small-Signal Bnadwidth BW 1.65 GHz
Low-Frequency Cut off LF 5 kHz
Rise/Fall Time(20%~80%) tr/tf 150 200 ps P=-18dBm,λ1310nm
Saturation Power Psat -3 dBm λ=1310nm

Single Ended Output

Impedance

 Ro 40 50 60 ohm

Wavelength

 λ 1270 1620 nm
Sensitivity -22 dBm

λ=1310nm,@2.5Gbps,

PRVS7,ER=10dB,BER=1E-10

Related Product

SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation
Packaging & Shipping

SONET 10g Tosa Rosa Bosa For FTTH FTTB FTTX Network Easy Operation

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
