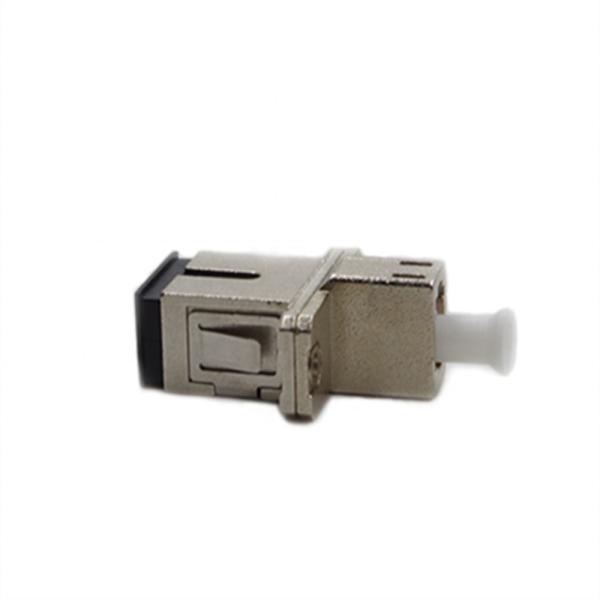

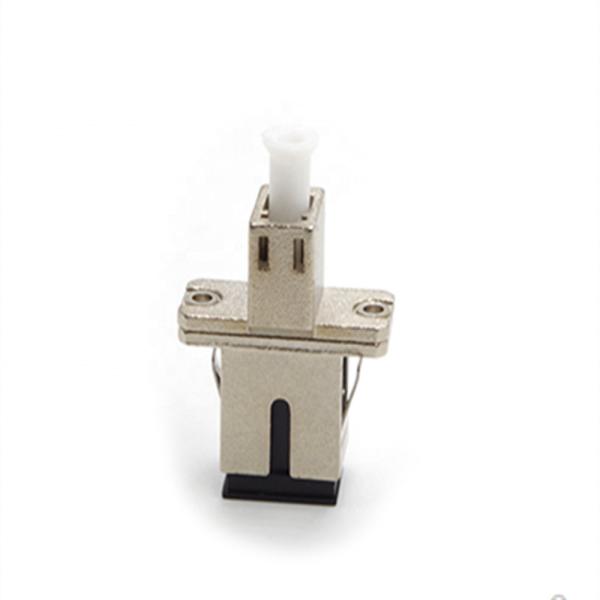

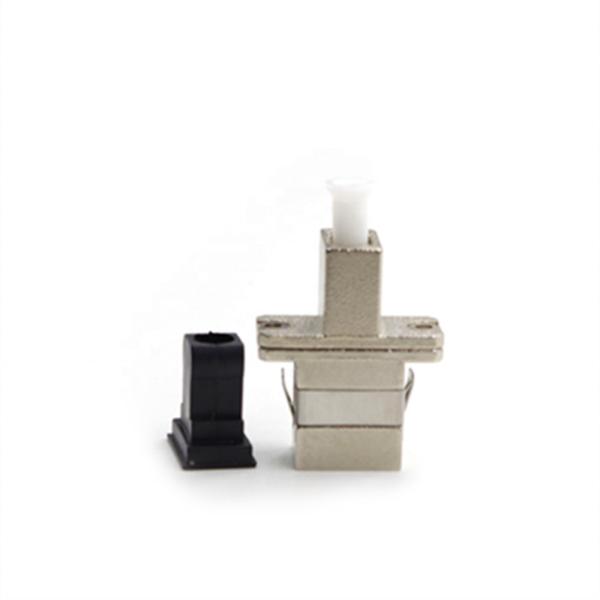

Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
fiber optic adapter
Certification :
ISO9001:2008
Supply Ability :
500000 Piece/Pieces per Month fiber optic adapter
Packaging Details :
Blister box packaging or customer requirements
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Product name :
fiber optic adapter
Application :
FTTH FTTB FTTX Network
Type :
Single Mode
Color :
Silvery White
Wavelength :
1260-1650nm
Material :
Mental
Connector :
SC LC FC ST
Operating temperature :
40~+85
Insertion loss :
IL<0.2db
Port :
Shenzhen port Shanghai port
Description
Product Details

Features:

Zirconia ceramic ferrule with high durability and reliability.

UPC/APC type available

Applications:

Telecommunication networks.

CATV systerm

FTTH (fiber to the home)

Connector Type

 FC, SC, ST, LC, MPO, etc.
Operating Wavelength 1260nm-1650nm
Insertion Loss ≤0.2dB, max 0.3dB
Return Loss PC≥45dB ,UPC≥50dB,APC≥65dB
Exchangeability ≤0.20dB
Vibration 10-60Hz, 1.5mm ≤0.10dB
Tensile ≤0.10dB (0-15Hg, except Ø0.9mm)
Plug times >1000 (Times), ≤0.20dB
Storage Temperature -40°C ~ +85°C
Operating Temperature -40°C ~ +85°C
Relative humidity 95%, (+25°C~ +65°C, after 100h)

Related Product

Metal Fiber Optic Adapter , SC Duplex Adapter For Telecommunication Networks

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
