Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Certification :
ISO9001:2008
Supply Ability :
30000 Piece/Pieces per Month
Packaging Details :
One pair per polybag,or as required package
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Product name :
plc splitter
Application :
FTTH FTTB FTTX Network
Type :
1*2/1*4/1*8/1*16/1*32/1*64
Color :
White
Wavelength :
1260-1650nm
Fiber Type :
G657A G652D
Material :
PVC ABS
Connector Type :
SC FC ST LC UPC
Operating temperature :
40~+85
Port :
shanghai port shenzhen port
Description

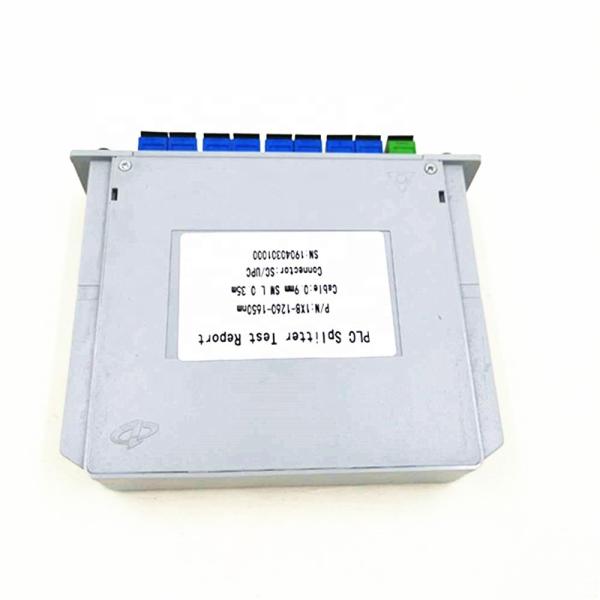

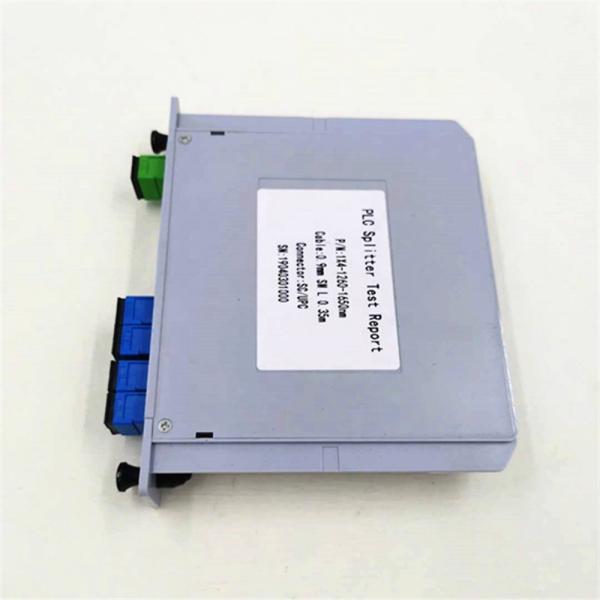

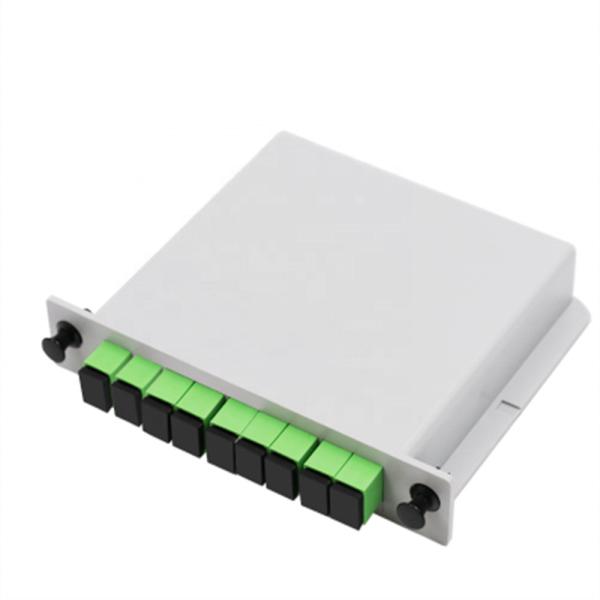

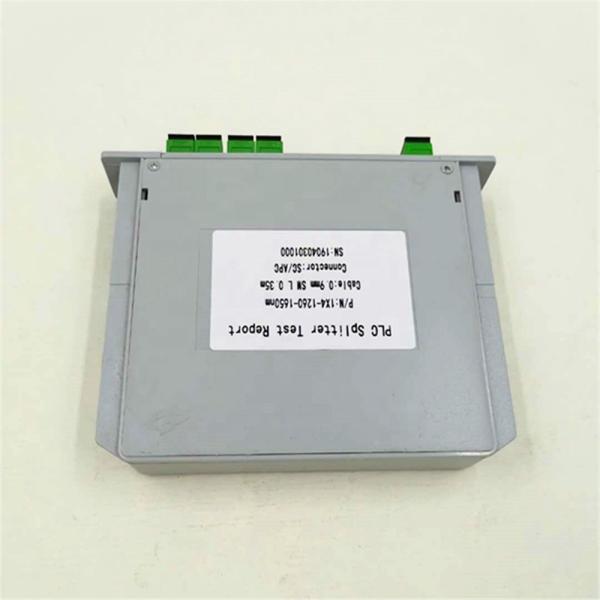

Product display
Product Features:
  • Good uniformity and low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical
  • Stability Telcordia GR-1221 and GR-1209

Application:

  • Fiber to The Home (FTTH)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment

Specification:

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type

1x2

 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16
Insertion Loss (dB) Max. ≤4.2 ≤7.5 ≤10.6 ≤13.7 ≤17.2 ≤21 ≤7.8 ≤10.8 ≤13.9
Uniformity (dB) Max ≤0.6 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.5 ≤1.0 ≤1.5 ≤2.0
PDL(dB)Max <0.2 <0.2 <0.2 <0.3 <0.3 <0.4 <0.3 <0.3 <0.4
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -45~ +85
Storage Temperature (°C) -5~ +75
Fiber length 1m or custom length
Fiber Type Corning G656A1 or Fiberhome G657A1
Connector Type Custom specified

Power Handling (mW)

 300
Related Product

Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box Good Uniformity Outdoor Cable Splitter , 1x8 Fiber Optic Distribution Box

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
