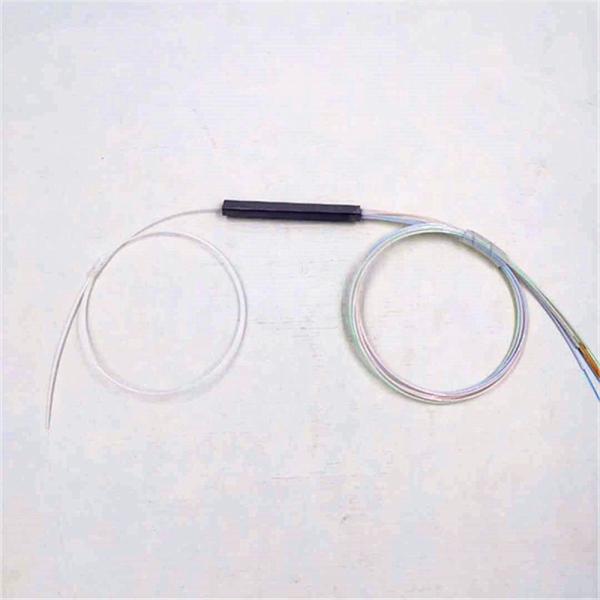

Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity
Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity
Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity
Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity
Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity
Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity
Specifications
Place of Origin :
Hubei, China
Brand Name :
CY
Model Number :
PLC Splitter
Certification :
ISO9001:2008
Supply Ability :
1000 Piece/Pieces per Month PLC Splitter
Packaging Details :
One pair per polybag,or as required package
MOQ :
1 Piece/Pieces
Price :
Negotiable
Product name :
PLC Splitter
Application :
FTTH FTTB FTTX Network
Wavelength :
1260-1620nm
Fiber Type :
G657A G652D
Connector :
SC LC FC ST
Operating temperature :
40~+85
Material :
PVC LSZH
Color :
White
Type :
1*2/1*4/1*8/1*16/1*32/1*64
Port :
Shanghai port Shenzhen port
Description
Product display

Description

1. Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3.It provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE

4. It offers both tree and star type inline couplers/splitters with Rack mount box.

5. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).

Features

1. Low Insertion loss and PDL

2. Compact Design

3. Good channel-to-channel uniformity

4. Wide Operating Wavelength: From 1260nm to 1650nm

5. High Reliability and Stability

Applications

1. FTTX Systems

2. PON Networks

3. CATV

4. Optical Signal Distribution

Specification:
Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type

1x2

 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16
Insertion Loss (dB) Max. ≤4.2 ≤7.5 ≤10.6 ≤13.7 ≤17.2 ≤21 ≤7.8 ≤10.8 ≤13.9
Uniformity (dB) Max ≤0.6 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.5 ≤1.0 ≤1.5 ≤2.0
PDL(dB)Max <0.2 <0.2 <0.2 <0.3 <0.3 <0.4 <0.3 <0.3 <0.4
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -45~ +85
Storage Temperature (°C) -5~ +75
Fiber length 1m or custom length
Fiber Type Corning G656A1 or Fiberhome G657A1
Connector Type Custom specified

Power Handling (mW)

 300
Related Product

Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity Low Insertion Loss 1x2 PLC Splitter , FBT Optical Splitter Good Uniformity

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
