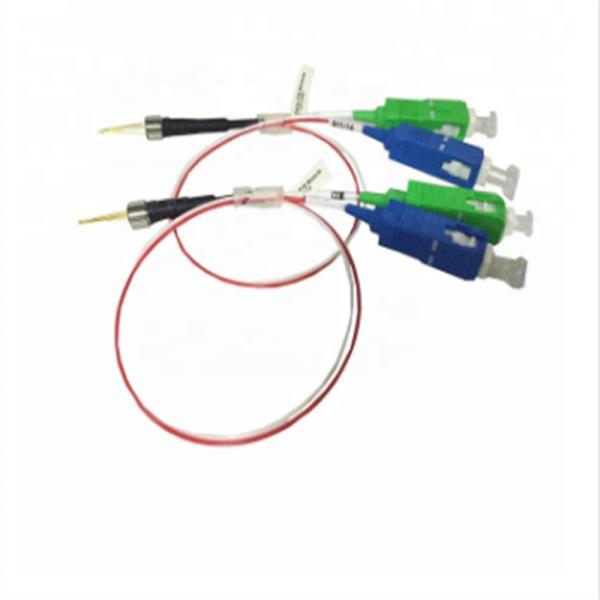

1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
PWDM PD Photodiode Mdoule
Certification :
ISO9001:2008
Supply Ability :
100000 Piece/Pieces per Month PWDM PD Photodiode Mdoule
Packaging Details :
Plastic box packaging or plastic bag packaging
MOQ :
10 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Product name :
PWDM PD Photodiode Mdoule
Application :
FTTH FTTB FTTX Network
Type :
WDM PD
Wavelength :
1310nm/1550nm 1490nm
Return Loss :
35dB
Insertion loss :
0.8dB
lsolation :
18dB
Exeternal Source :
30dB
Brand :
CY
Port :
Shanghai port Shenzhen port
Description
Product display

Features

High sensitivity

Crosstalk:>30dB

Pass lsolation:>30dB

Reflect lsolation:>18dB

Applications

G/EPON network

RFoG and Cable PON applications

1550nm Analog Receiver(Tc=25℃,unless otherwise noted)

Parameter Symbol Condition Min Typ Max Unit
lnput Wavelength λpd Tc=25℃ 1540 1550 1560 nm
Responsivity R

Tc=-40~+85℃,

@1550nm

 0.80 0.85 -- A/W
Capacitance Cpd Vr=5V,F=1MHz -- -- 0.80 pF
Dark Current ld Vr=5V -- -- -70 dBc

Second Order

lnter-Modulation Distortion

 lMD2

λ=1550nm(*1) ,

Vpd=12V

Tc=-40~+85℃

 35 -- -- dB
Optical Return Loss ORL

λ=1550nm-1560nm,

Tc=-40~+85℃

 35 -- -- dB

Optical lsolation from

Exeternal Source

 lSO1

λ=1260nm-1360nm,

Tc=-40~+85℃

40 -- -- dB
lSO1

λ=1490nm-1500nm

Tc=-40~+85℃

30 -- -- dB

Optical Crosstalk from

lnternal LASER

 Xopt Tc=-40~+85℃(*2) -- -- -28 dB

GPON/EPON ONT 1310/1490

Parameter Note Min Typ Max Unit
lnsertion Loss @1310nm -- -- 0.8 dB
lnsertion Loss @1490nm -- -- 0.8 dB
lsolation @1550nm 18 -- -- dB
lsolation @1590nm 18 -- -- dB
1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule

Related Product

1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule

Packaging & Shipping

1310 1490 1550nm Tosa Rosa Bosa High Sensitivity PWDM PD Photodiode Modoule

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
