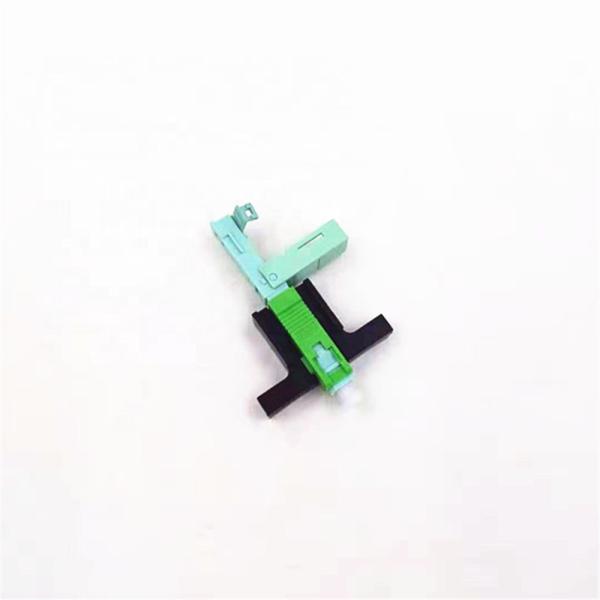

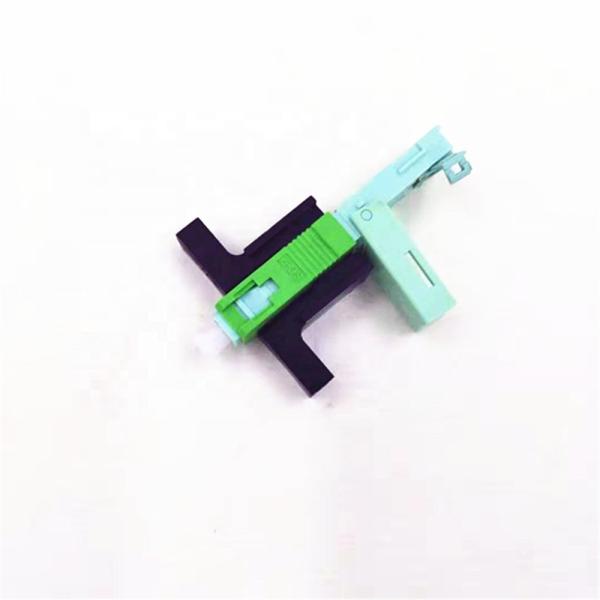

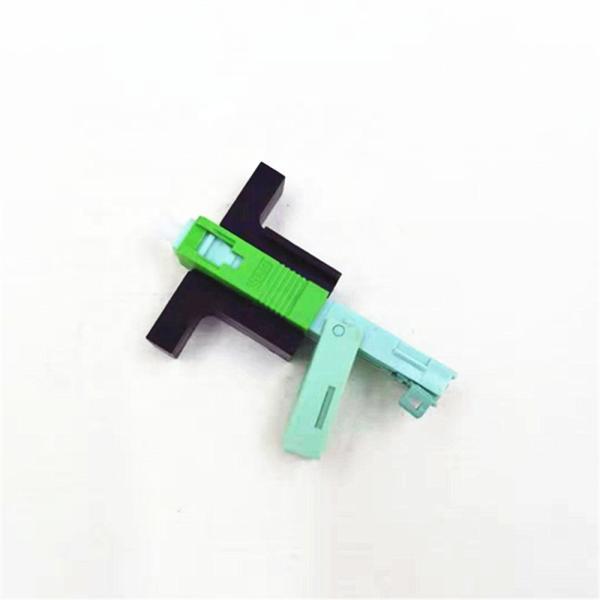

Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss
Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss
Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss
Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss
Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss
Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
Fiber Optic Connector
Certification :
ISO9001:2008
Supply Ability :
100000 Piece/Pieces per Month
Packaging Details :
Individual Package or plastic box
MOQ :
10 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Product name :
Fiber Optic Connector
Application :
FTTH FTTB FTTX Network
Type :
APC
Color :
Green
Fiber Type :
G657A
Connector :
SC LC FC ST
Operating temperature :
40~+85
Return Loss :
APC>65dB
Insertion loss :
0.3dB
Port :
Shenzhen port Shanghai port
Description
Product display

Product Description:

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Key Features:

1) Factory-installed fiber stub.

2) No epoxy and polishing required, No special tools needed when installed.

3) Allows up to three re-termination result.

4) Easily installed, Quick and easy fiber termination in the field.

5) Only 30 seconds needed to learn the process of installation and making.

6) Cost effective, Warranty: One year.

7) Fast connecting and repeat, No special tools needed when installed.

8) Can be made on-site without splicing connectors.

9) Eliminates cable excess length and pigtail splice storage.

10) Can be intalled and maked repeatedly thus avoiding loss.

Specification:

ITEM Technical Parameters
Applicable for Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0.5dB RL ≤ 5dB
Related Product

Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss

Packaging & Shipping

Green Single Mode Fiber Connectors For Digital Communications 0.3dB Insertion Loss

FAQ

Q1: How e warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
