Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network
Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network
Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network
Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network
Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network
Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
fast connector
Certification :
ISO9001:2008
Supply Ability :
100000 Piece/Pieces per Month
Packaging Details :
Individual Package or plastic box
MOQ :
10 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Product name :
fast connector
Application :
FTTH FTTB FTTX Network
Type :
SC
Color :
Blue
Fiber Type :
G657A
Connector :
SC LC FC ST
Operating temperature :
40~+85
Return Loss :
UPC 55dB
Insertion loss :
0.3dB
Port :
Shenzhen port Shanghai port
Description

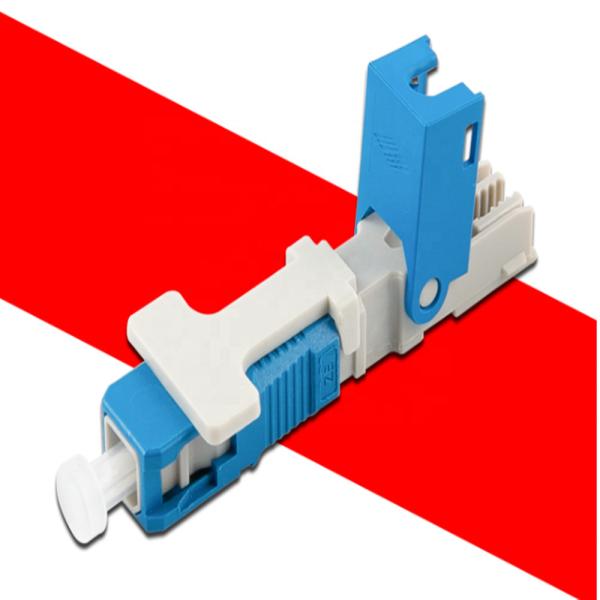

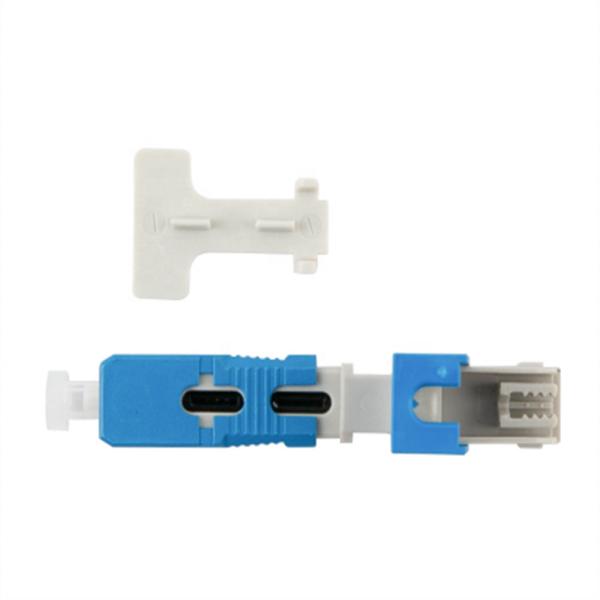

Product display

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Feature:

·Low insertion loss ,high return loss;

·Reliable optical performance;

·Good connection stability;

·Convenient for field installation;

·Installs fast,Operates easy ;

·Low cost.

Item Parameter
Cable Scope 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Size 51*9*7.55mm
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≤ -50dB for UPC, ≤ 55dB for APC
Success Rate >98%
Reusable Times >5 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >30 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test IL ≤ 0.3dB
Related Product

Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network

Packaging & Shipping

Waterproof Fiber Optic Connectors Field Assembly For FTTH FTTB FTTX Network

FAQ

Q1: How e warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
