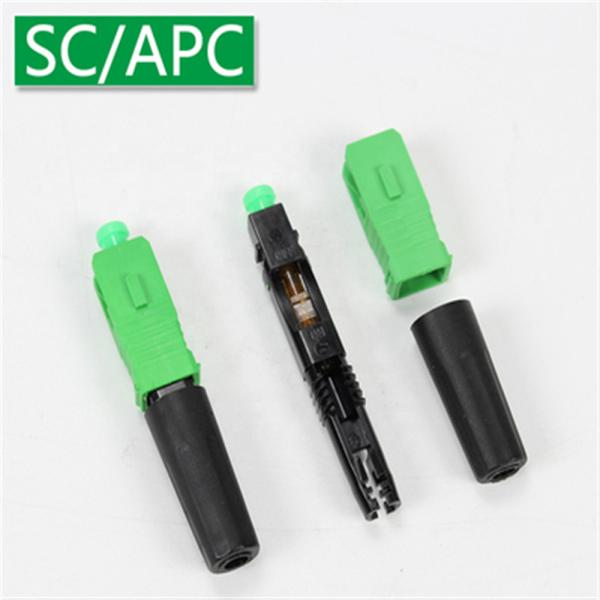

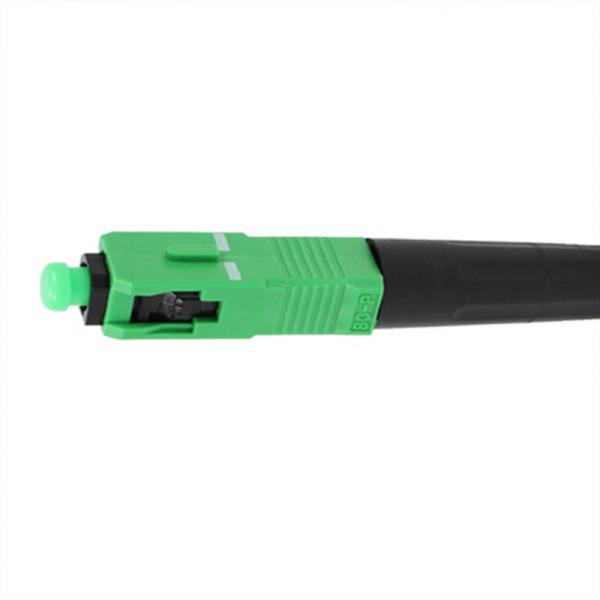

Factory free sample FTTH filed assembly SC APC fiber optic fast connector
Factory free sample FTTH filed assembly SC APC fiber optic fast connector
Factory free sample FTTH filed assembly SC APC fiber optic fast connector
Factory free sample FTTH filed assembly SC APC fiber optic fast connector
Factory free sample FTTH filed assembly SC APC fiber optic fast connector
Factory free sample FTTH filed assembly SC APC fiber optic fast connector
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
fast connector
Product name :
fast connector
Application :
FTTH FTTB FTTX Network
Type :
APC
Color :
Green
Certification :
ISO9001:2008
Fiber Type :
G657A
Connector Type :
SC FC ST LC
Operating temperature :
40~+85
Return Loss :
APC>65dB
Insertion loss :
100%<0.3dB
Supply Ability :
100000 Piece/Pieces per Month
Packaging Details :
Individual Package or plastic box
Port :
Shanghai port Shenzhen port
MOQ :
10 Piece/Pieces
Price :
$0.27 - $0.60 / Pieces
Description
Product display

1.Description

Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.

2.Features

1.Factory-installed fiber stub

2.No epoxy or polishing required

3.Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage

4.Eliminates cable excess length and pigtail splicestorage

5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable

3.Specification

Fast Connector Specification
ModeSM MM
PolishUPCAPCPC
Insertion Loss

ypical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB
Return Loss≥50dB≥65dB≥35dB
Interchangeability≤0.2dB
Repeatability≤0.1dB
Durability≤0.2dB (1000 times mating)
Tensile Strengh> 10kg
Temperature≤0.2dB (-40+85 sustain 100 hours)
Humidity≤0.2dB (+25+65 93 R.H.100 hours)

Factory free sample FTTH filed assembly SC APC fiber optic fast connectorFactory free sample FTTH filed assembly SC APC fiber optic fast connector

Related Product

Factory free sample FTTH filed assembly SC APC fiber optic fast connector

Company Information

Factory free sample FTTH filed assembly SC APC fiber optic fast connector

Exhibition

Factory free sample FTTH filed assembly SC APC fiber optic fast connector

Certifications

Factory free sample FTTH filed assembly SC APC fiber optic fast connector

Packaging & Shipping

Factory free sample FTTH filed assembly SC APC fiber optic fast connectorFactory free sample FTTH filed assembly SC APC fiber optic fast connector

FAQ

Q1: How e warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
