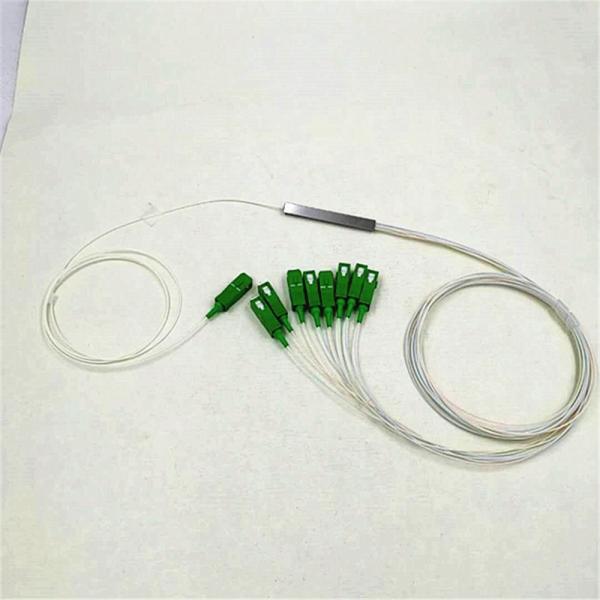

Good quality Steel tube type with sc apc 1x8 fiber optic splitter chip
Good quality Steel tube type with sc apc 1x8 fiber optic splitter chip
Good quality Steel tube type with sc apc 1x8 fiber optic splitter chip
Good quality Steel tube type with sc apc 1x8 fiber optic splitter chip
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
fiber optic splitter
Product name :
fiber optic splitter
Application :
FTTH FTTB FTTX Network
Type :
1*2/1*4/1*8/1*16/1*32/1*64
Color :
White
Wavelength :
1260-1650nm
Certification :
ISO9001:2008
Connector :
SC LC FC ST
Material :
PC ABS
Fiber Type :
G657A G652D
Operating temperature :
40~+85
Selling Units :
Multiple of
Package size per batch  :
36X3X6 cm
Gross weight per batch :
2.1 kg
Package Type :
Plastic envelope packaging, carton packaging
MOQ :
40-199 Pieces
Price :
$3.00
Description
Product display
Product Features:
  • Good uniformity and low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical
  • Stability Telcordia GR-1221 and GR-1209

Application:

  • Fiber to The Home (FTTH)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment

Specification:

ParameterSpecification
Operating Wavelength (nm)1260 ~ 1650
Type

1x2

1x41x81x161x321x642x42x82x16
Insertion Loss (dB) Max. ≤4.2≤7.5≤10.6≤13.7≤17.2≤21≤7.8≤10.8≤13.9
Uniformity (dB) Max≤0.6≤0.8≤1.0≤1.5≤2.0≤2.5≤1.0≤1.5≤2.0
PDL(dB)Max<0.2 <0.2<0.2 <0.3 <0.3<0.4 <0.3<0.3<0.4
Directivity (dB) Min 55
Return Loss (dB) Min55(50)
Operating Temperature (°C) -45~ +85
Storage Temperature (°C) -5~ +75
Fiber length 1m or custom length
Fiber Type Corning G656A1 or Fiberhome G657A1
Connector TypeCustom specified

Power Handling (mW)

300
Good quality Steel tube type with sc apc 1x8 fiber optic splitter chipGood quality Steel tube type with sc apc 1x8 fiber optic splitter chip
Related Product

Good quality Steel tube type with sc apc 1x8 fiber optic splitter chip

Company Information

Good quality Steel tube type with sc apc 1x8 fiber optic splitter chip

Exhibition

Good quality Steel tube type with sc apc 1x8 fiber optic splitter chip

Packaging & Shipping

Good quality Steel tube type with sc apc 1x8 fiber optic splitter chipGood quality Steel tube type with sc apc 1x8 fiber optic splitter chip

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
