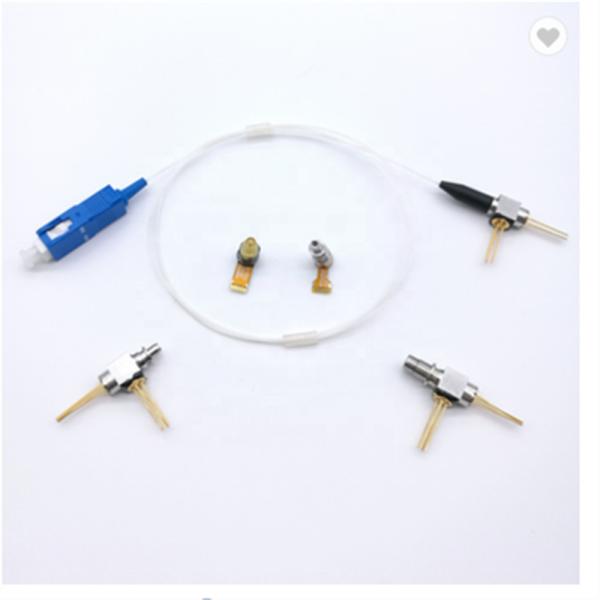

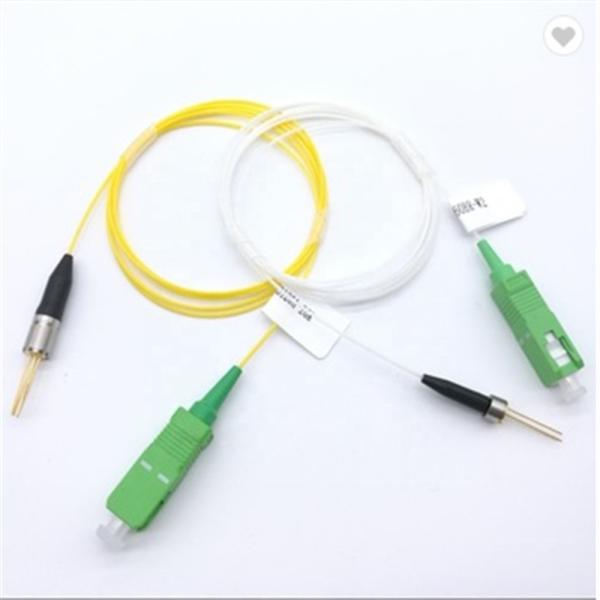

For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
BOSA Pigtail
Product name :
BOSA Pigtail
Application :
FTTH FTTB FTTX Network
Type :
Tosa bosa rosa
Certification :
ISO9001:2008
Wavelength :
1310nm/1490nm/1550nm
Power Supply :
3.3V
Reverse voltage :
30V
Supply Current :
44mA
Brand :
CY
Operating temperature :
40~+85
Supply Ability :
100000 Piece/Pieces per Month BOSA Pigtail
Packaging Details :
Plastic box packaging or plastic bag packaging
Port :
Shanghai port Shenzhen port
MOQ :
10 Piece/Pieces
Price :
$1.00 - $10.00 / Pieces
Description
Product display
Features

High Responsivity

Small dark current

High reliability

Applications

FTTH,SDH,SONET


Optical&Electrical Characteristics

ParametersSymbolMinTypMaxUnitTest conditions
Power SupplyVcc3.03.33.6V
Supply CurrentIcc 4460mAno loads
Differential ResponsivityRd1.4 3.0mW/uW

Rload=100ohm

P=-18dBm,λ=1310nm

Single Ended ResponsivityRs0.7 1.5mV/uW

Rload=50ohm

P=-18dBm,λ1310nm

Small-Signal BnadwidthBW1.65 GHz
Low-Frequency Cut offLF 5kHz
Rise/Fall Time(20%~80%)tr/tf 150200psP=-18dBm,λ1310nm
Saturation PowerPsat-3 dBmλ=1310nm

Single Ended Output

Impedance

Ro 40 5060 ohm

Wavelength

λ1270 1620nm
Sensitivity -22 dBm

λ=1310nm,@2.5Gbps,

PRVS7,ER=10dB,BER=1E-10

For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA PigtailFor BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail

Related Product
For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail
Company Information

For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail

Packaging & Shipping

For BiDirectional Transmission on one fiber GPON EPON OLT ONU 1310nm 1490nm 1550nm BOSA Pigtail

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
