1310nm 10g Tosa/Rosa Pigtail laser diode module
1310nm 10g Tosa/Rosa Pigtail laser diode module
1310nm 10g Tosa/Rosa Pigtail laser diode module
1310nm 10g Tosa/Rosa Pigtail laser diode module
1310nm 10g Tosa/Rosa Pigtail laser diode module
1310nm 10g Tosa/Rosa Pigtail laser diode module
1310nm 10g Tosa/Rosa Pigtail laser diode module
1310nm 10g Tosa/Rosa Pigtail laser diode module
Specifications
Place of Origin :
Hubei, China
Brand Name :
OEM
Model Number :
Tosa Rosa Pigtail laser diode module
Product name :
Tosa Rosa Pigtail laser diode module
Application :
FTTH FTTB FTTX Network
Certification :
ISO9001:2008
Type :
tosa rosa
Power Supply :
3.3V
Reverse voltage :
30V
Supply Current :
44mA
Brand :
CY
Operating temperature :
40~+85
Wavelength :
1310nm/1490nm/1550nm
Supply Ability :
100000 Piece/Pieces per Month Tosa Rosa Pigtail laser diode module
Packaging Details :
Plastic box packaging or plastic bag packaging
Port :
Shanghai port Shenzhen port
MOQ :
10 Piece/Pieces
Price :
$1.00 - $10.00 / Pieces
Description

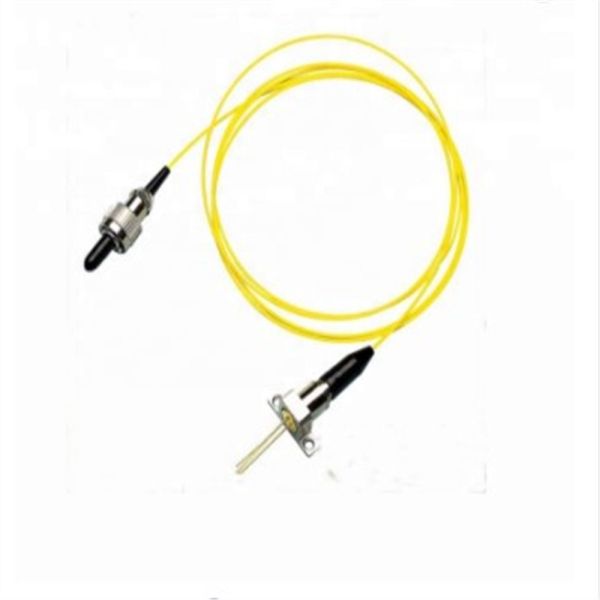

Product display
Features

High Responsivity

Small dark current

High reliability

Applications

FTTH,SDH,SONET


Optical&Electrical Characteristics

ParametersSymbolMinTypMaxUnitTest conditions
Power SupplyVcc3.03.33.6V
Supply CurrentIcc 4460mAno loads
Differential ResponsivityRd1.4 3.0mW/uW

Rload=100ohm

P=-18dBm,λ=1310nm

Single Ended ResponsivityRs0.7 1.5mV/uW

Rload=50ohm

P=-18dBm,λ1310nm

Small-Signal BnadwidthBW1.65 GHz
Low-Frequency Cut offLF 5kHz
Rise/Fall Time(20%~80%)tr/tf 150200psP=-18dBm,λ1310nm
Saturation PowerPsat-3 dBmλ=1310nm

Single Ended Output

Impedance

Ro 40 5060 ohm

Wavelength

λ1270 1620nm
Sensitivity -22 dBm

λ=1310nm,@2.5Gbps,

PRVS7,ER=10dB,BER=1E-10

1310nm 10g Tosa/Rosa Pigtail laser diode module1310nm 10g Tosa/Rosa Pigtail laser diode module

Related Product
1310nm 10g Tosa/Rosa Pigtail laser diode module
Company Information

1310nm 10g Tosa/Rosa Pigtail laser diode module

Packaging & Shipping

1310nm 10g Tosa/Rosa Pigtail laser diode module

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
