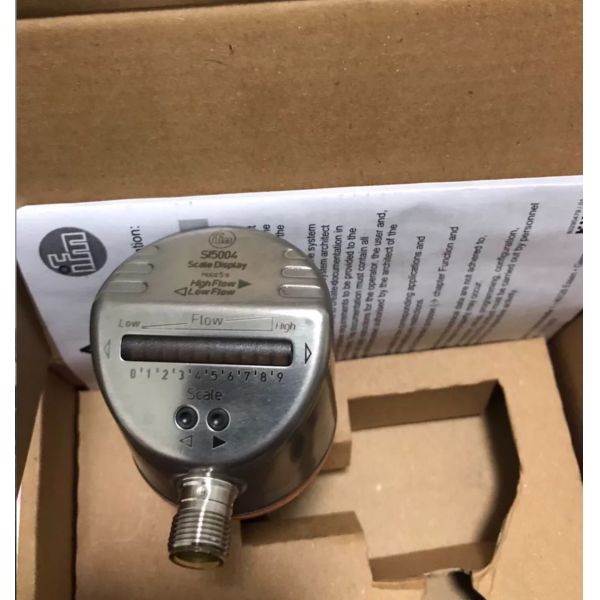

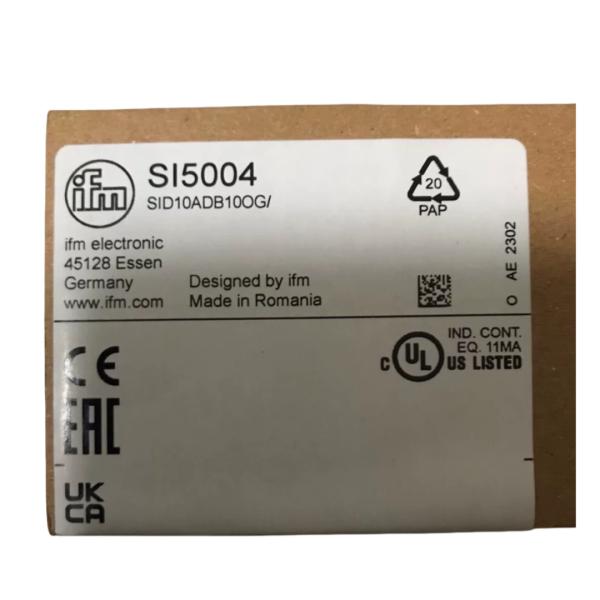

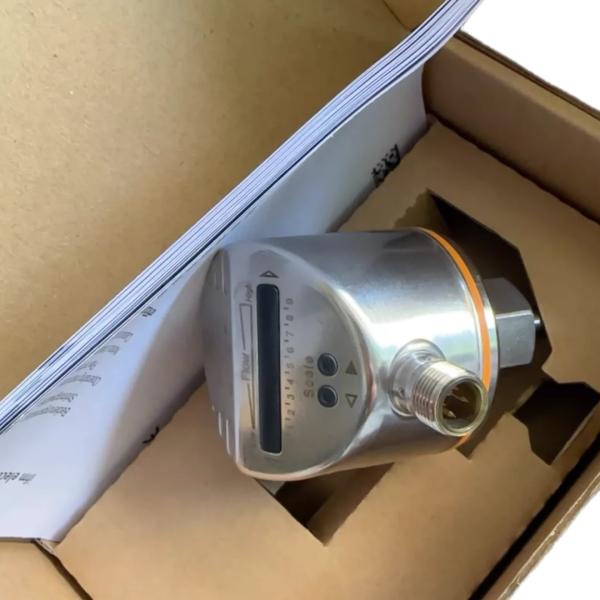

SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread
SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread
SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread
SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread
SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread
SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread
Specifications
Brand Name :
IFM
Model Number :
SI5004
Certification :
CE
Place of Origin :
GERMANY
MOQ :
1
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
1000PS
Delivery Time :
3-5DAYS
Packaging Details :
10*8*6
Description

IFM Flow transmitter SI5004 SID10ADB10OG M18 x 1,5 internal thread

Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Quick set-up of the sensor
Robust stainless steel housing for use in harsh industrial environments
LED bar graph display for indicating the flow state

Product characteristics

Number of inputs and outputsNumber of analogue outputs: 1
Process connectionM18 x 1,5 internal thread

Application

MediaLiquids
Medium temperature [°C]-25...80
Pressure rating [bar]300
MAWP (for applications according to CRN) [bar]208

Liquids

Medium temperature [°C]-25...80

Electrical data

Operating voltage [V]19...36 DC
Current consumption [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time [s]10

Inputs / outputs

Number of inputs and outputsNumber of analogue outputs: 1

Outputs

Total number of outputs1
Output signalanalogue signal
Number of analogue outputs1
Analogue current output [mA]4...20
Max. load [Ω]500
Overload protectionyes

Measuring/setting range

Probe length L [mm]45

Liquids

Setting range [cm/s]3...300
Greatest sensitivity [cm/s]3...100

Accuracy / deviations

Repeatability [cm/s]1...5
Note on repeatability
for water 5...100 cm/s; 25 °C
Factory setting
Temperature drift [cm/s x 1/K]0.1; (for water 5...100 cm/s; 10...70 °C)
Measuring error [% of the final value]± 2...± 10

Response times

Response time [s]1...10

Liquids

Response time [s]1...10

Operating conditions

Ambient temperature [°C]-25...80
Storage temperature [°C]-25...100
ProtectionIP 67

Tests / approvals

EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-2750 g (11 ms)
Vibration resistance
DIN EN 60068-2-620 g (55...2000 Hz)
MTTF [years]259

Mechanical data

Weight [g]230
Dimensions [mm]M18 x 1.5
Thread designationM18 x 1.5
Materialsstainless steel (316L/1.4404); stainless steel (304/1.4301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)stainless steel (316L/1.4404); O-ring: FKM 80 Shore A
Process connectionM18 x 1,5 internal thread

Displays / operating elements

Display
function10 x LED, three-colour

Remarks

Pack quantity1 pcs.

Electrical connection

ConnectionConnector: 1 x M12; coding: A


SI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal ThreadSI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal ThreadSI5004 IFM Flow Monitor Sensors Switch Transmitter SID10ADB10OG M18 X 1 5 Internal Thread
