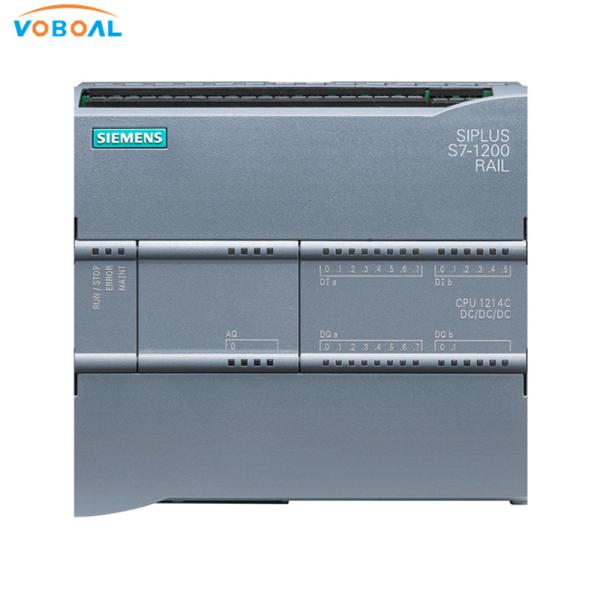

OEM SIEMENES PLC SIMATIC S7-1200 CPU Profibus 1214C AC/DC/Relay 6ES7 214-1BE30-0XB0
OEM SIEMENES PLC SIMATIC S7-1200 CPU Profibus 1214C AC/DC/Relay 6ES7 214-1BE30-0XB0
Specifications
Brand Name :
SIEMENS
Model Number :
6ES7 214-1BE30-0XB0
Certification :
CE
Place of Origin :
GERMANY
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
5pc
Delivery Time :
5-10days
Packaging Details :
16,00 x 17,00 x 10,00 CM
Description

SIEMENES PLC CPU 1214C DC/DC/DC 6ES7 214-1BE30-0XB0 SIMATIC S7-1200

OEM SIEMENES PLC SIMATIC S7-1200 CPU Profibus 1214C AC/DC/Relay 6ES7 214-1BE30-0XB0

CPU 1214C Specifications

Technical Specifications
Model CPU 1214C
AC/DC/Relay		 CPU 1214C
DC/DC/Relay		 CPU 1214C
DC/DC/DC
Order number (MLFB) 6ES7 214-1BE30-0XB0 6ES7 214-1HE30-0XB0 6ES7 214-1AE30-0XB0
General
Dimensions W x H x D (mm) 110 x 100 x 75
Weight 475 grams 435 grams 415 grams
Power dissipation 14 W 12 W
Current available (SM and CM bus) 1600 mA max. (5 VDC)
Current available (24 VDC) 400 mA max. (sensor power)
Digital input current consumption
(24VDC)		 4 mA/input used
CPU Features
User memory 50 Kbytes Work memory / 2 Mbytes Load memory/ 2 Kbytes Retentive memory
On-board digital I/O 14 inputs/10 outputs
On-board analog I/O 2 inputs
Process image size 1024 bytes of inputs/1024 bytes of outputs
Signal modules expansion 8 SMs max.
Signal board expansion 1 SB max.
Communication module expansion 3 CMs max.
High-speed counters 6 total
Single phase: 3 at 100 kHz and 3 at 30 kHz clock rate
Quadrature phase: 3 at 80 kHz and 3 at 20 kHz clock rate
Pulse outputs 2 at 1Hz pulse rate 2 at 100 kHz pulse rate
Pulse catch inputs 14
Time delay / cyclic interrupts 4 total with 1 ms resolution
Edge interrupts 12 rising and 12 falling (14 and 14 with optional signal board)
Memory card SIMATIC Memory Card (optional)
Real time clock accuracy +/- 60 seconds/month
Real time clock retention time 10 days typ./6 days min. at 40°C (maintenance-free Super Capacitor)
Performance
Boolean execution speed 0.1 μs/instruction
Move Word execution speed 12 μs/instruction
Real Math execution speed 18 μs/instruction
Communication
Number of ports 1
Type Ethernet
Data rates 10/100 Mb/s
Isolation (external signal to PLC
logic)		 Transformer isolated, 1500 VDC
Cable type CAT5e shielded
Technical Specifications
Model CPU 1214C
AC/DC/Relay		 CPU 1214C
DC/DC/Relay		 CPU 1214C
DC/DC/DC
Power supply
Voltage range 85 to 264 VAC 20.4 to 28.8 VDC
Line frequency 47 to 63 Hz --
Input current
CPU only at max. load
CPU with all expansion accessories
at max. load		 100 mA at 120 VAC
50 mA at 240 VAC
300 mA at 120 VAC
150 mA at 240 VAC		 500 mA at 24 VDC
1500 mA at 24 VDC
Inrush current (max.) 20 A at 264 VAC 12 A at 28.8 VDC
Isolation (input power to logic) 1500 VAC Not isolated
Hold up time (loss of power) 20 ms at 120 VAC
80 ms at 240 VAC		 10 ms at 24 VDC
Internal fuse, not user replaceable 3 A, 250 V, slow blow
Sensor power
Voltage range 20.4 to 28.8 VDC L+ minus 4 VDC min.
Output current rating (max.) 400 mA (short circuit protected)
Maximum ripple noise (<10 MHz) < 1 V peak to peak Same as input line
Isolation (CPU logic to sensor power) Not isolated
Digital inputs
Number of inputs 14
Type Sink/Source (IEC Type 1 sink)
Rated voltage 24 VDC at 4 mA, nominal
Continuous permissible voltage 30 VDC, max.
Surge voltage 35 VDC for 0.5 sec.
Logic 1 signal (min.) 15 VDC at 2.5 mA
Logic 0 signal (max.) 5 VDC at 1 mA
Isolation (field side to logic) 500 VAC for 1 minute
Isolation groups 1
Filter times 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, and 12.8 ms (selectable in groups of 4)
HSC clock input rates (max.)
(Logic 1 Level = 15 to 26 VDC)		 Single phase: 100 KHz (Ia.0 to Ia.5) and 30 KHz (Ia.6 to Ib.5)
Quadrature phase: 80 KHz (Ia.0 to Ia.5) and 20 KHz (Ia.6 to Ib.5)
Number of inputs on simultaneously 14
Cable length (meters) 500 shielded, 300 unshielded, 50 shielded for HSC inputs
Analog inputs
Number of inputs 2
Type Voltage (single-ended)
Range 0 to 10 V
Full-scale range (data word) 0 to 27648 (Refer to Analog input representation for voltage (Page 310))
Overshoot range (data word) 27,649 to 32,511 (Refer to Analog input representation for voltage (Page 310) )
Overflow (data word) 32,512 to 32767 (Refer to Analog input representation for voltage (Page 310) )
Resolution 10 bits
Maximum withstand voltage 35 VDC
Technical Specifications
Model CPU 1214C
AC/DC/Relay		 CPU 1214C
DC/DC/Relay		 CPU 1214C
DC/DC/DC
Smoothing None, Weak, Medium, or Strong (refer to Analog input response time (Page 310)
for step response times)
Noise rejection 10, 50, or 60 Hz (refer to Analog input response time (Page 310) for sample rates)
Impedance ≥100 KΩ
Isolation (field side to logic) None
Accuracy (25°C / 0 to 55°C) 3.0% / 3.5% of full-scale
Common mode rejection 40 dB, DC to 60 Hz
Operational signal range Signal plus common mode voltage must be less than +12 V and greater than -12 V
Cable length (meters) 10 twisted and shielded
Digital outputs
Number of outputs 10
Type Relay, dry contact Solid state - MOSFET
Voltage range 5 to 30 VDC or 5 to 250 VAC 20.4 to 28.8 VDC
Logic 1 signal at max. current -- 20 VDC min.
Logic 0 signal with 10 KΩ load -- 0.1 VDC max.
Current (max.) 2.0 A 0.5 A
Lamp load 30 W DC / 200 W AC 5 W
ON state resistance 0.2 Ω max. when new 0.6 Ω max.
Leakage current per point -- 10 μA max.
Surge current 7 A with contacts closed 8 A for 100 ms max.
Overload protection No
Isolation (field side to logic) 1500 VAC for 1 minute (coil to contact)
None (coil to logic)		 500 VAC for 1 minute
Isolation resistance 100 MΩ min. when new --
Isolation between open contacts 750 VAC for 1 minute --
Isolation groups 2 1
Inductive clamp voltage -- L+ minus 48 VDC, 1 W
dissipation
Switching delay (Qa.0 to Qa.3) 10 ms max. 1.0 μs max., off to on
3.0 μs max., on to off
Switching delay (Qa.4 to Qb.1) 10 ms max. 50 μs max., off to on
200 μs max., on to off
Pulse Train Output rate
(Qa.0 and Qa.2)		 1 Hz max. 100 KHz max.
Lifetime mechanical (no load) 10,000,000 open/close cycles --
Lifetime contacts at rated load 100,000 open/close cycles --
Behavior on RUN to STOP Last value or substitute value (default value 0)
Number of Outputs On
simultaneously		 10
Cable length (meters) 500 shielded, 150 unshielded
