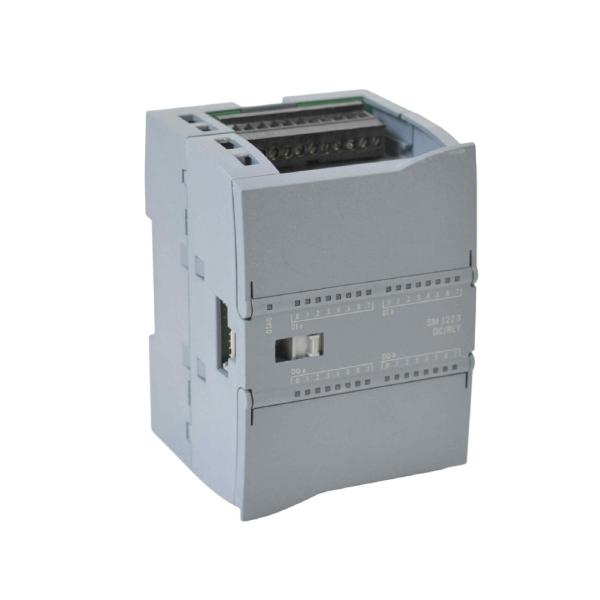

SIEMENS SIMATIC PLC S7-1200 6ES7 223-1PL30-0XB0 SM 1223 16 x 24 VDC Input / 16 x Relay Output Signal modules

Product Name: SIEMENS SIMATIC PLC S7-1200 6ES7 223-1PL30-0XB0 SM 1223 16 x 24 VDC Input / 16 x Relay Output Signal Modules

Introduction:
The SIEMENS SIMATIC PLC S7-1200 6ES7 223-1PL30-0XB0 SM 1223 is a signal module designed to provide 16 digital input channels and 16 relay output channels. It is part of the SIMATIC S7-1200 series, known for its reliability, flexibility, and ease of use.

This signal module allows for the connection of various input and output devices to the SIMATIC S7-1200 programmable logic controller (PLC). It is suitable for applications that require precise and reliable control of digital input and output signals.

The 16 digital input channels can receive 24VDC signals from devices or sensors, providing information to the PLC for further processing. The module also features 16 relay output channels, which can be used to control external devices such as motors, valves, or alarms.

The relay outputs can switch up to 250V AC or 30V DC with a maximum current of 2A per channel. This allows for precise and reliable control of connected devices. The module offers a response time of up to 10ms for the relay outputs, ensuring quick and accurate switching.

The module is designed for easy installation on the SIMATIC S7-1200 PLC, providing seamless integration into the automation system. It is equipped with status LEDs for quick visual indication of the input and output channel status and diagnostic information.

Product Features:
- Product Name: SIEMENS SIMATIC PLC S7-1200 6ES7 223-1PL30-0XB0 SM 1223
- Signal Module Type: SM 1223
- Number of Inputs: 16
- Input Voltage: 24VDC
- Number of Outputs: 16
- Output Type: Relay
- Maximum Switching Voltage: 250V AC / 30V DC
- Maximum Switching Current: 2A per channel
- Output Delay: Max. 10 ms
- Isolation: Non-isolated
- Communication Interface: -
- Mounting Type: Snap-on to the S7-1200 PLC
- Dimensions (W x H x D): 30 mm x 100 mm x 75 mm
- Weight: Approximately 90 g

Applications:
- Industrial automation
- Machine control systems
- Process control
- Building automation
- Material handling systems
- Packaging systems
- Conveyor systems

The SIEMENS SIMATIC PLC S7-1200 6ES7 223-1PL30-0XB0 SM 1223 with 16 x 24VDC input channels and 16 x relay output channels is an ideal solution for applications that require precise control of digital input and output signals. Its compatibility with the SIMATIC S7-1200 PLC, reliable performance, and ease of use make it a versatile choice for various industrial automation applications.
