Pleated 120mm Acrylic Filter Bag For Dust Collectors
Pleated 120mm Acrylic Filter Bag For Dust Collectors
Pleated 120mm Acrylic Filter Bag For Dust Collectors
Pleated 120mm Acrylic Filter Bag For Dust Collectors
Pleated 120mm Acrylic Filter Bag For Dust Collectors
Pleated 120mm Acrylic Filter Bag For Dust Collectors
Pleated 120mm Acrylic Filter Bag For Dust Collectors
Pleated 120mm Acrylic Filter Bag For Dust Collectors
Specifications
Brand Name :
17s
Model Number :
120mm
Certification :
ISO
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
TBD
Delivery Time :
TBD
Packaging Details :
Polybag and Pallets
Filter area :
Extend Filter Surface
Felt :
Acrylic
Diameter :
120mm
No. of Pleats :
12 pleats
head :
Seal Cuff
Metal Hoop :
304 Stainless Steel
Bottom :
Two layers
Length :
Customized
Description

Acrylic Star Filter Bag Acrylic Pleat Dust Collect Bag Extend Filter Area Bag 120mm Diameter Star Bag

Specification

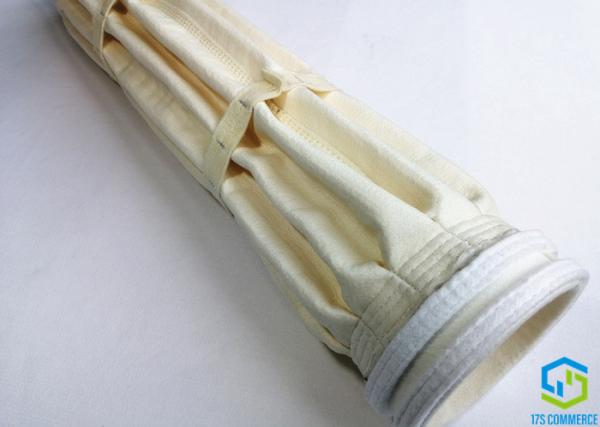

Star filter bags (Star bags) is a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes.

 The design of the pleated/star bag filter is suitable for dust collectors of various sizes and ensures easy installation and replacement. They are easy to install in various sizes of cell boards for top load dust collectors. Replace the traditional round filter bag used in many dust collectors.
Style star bag, pleat bag, extend surface/area bag
Pleats No. 8 / 12 pleats
Material Arcylic
Diameter 120 mm
Length TBD mm
Strap / band Type cut felt strap
afixing thread sewing to bag
Width 25 mm
Distance 250 mm
Top Opening 120 mm

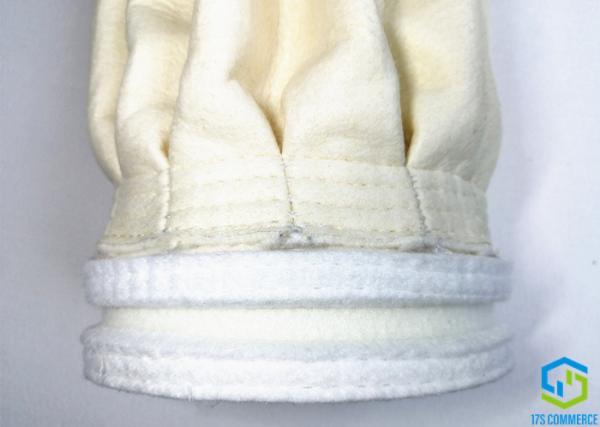

Cuff Type seal cuff
Width 10-12mm
Thickness 8-10mm
Distance 4-8mm
Metal hoop inside of top yes
material 304 stainless steel
width 25-30mm
Fix sew to bag body
Boot / Bottom Diameter 120 mm
Height 100-120 mm
Reinforcement two layers
Bottom disc two layers
Metal hoop no, 20-25mm 304 stainless steel if yes
Fix sew to bag body
Seam Type thread sewing
Bag panel/body triple rows sewing
Cuff panel 2 double rows sewing
boot upper 2 double rows sewing
boot bottom double rows sewing
Pack Poly bag and pallet, or carton and pallet

advantage

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

filter surface Dianmter mm Bag Length
1m 2m 3m 4m 5m 6m
8 pleats 120 38.64 55.97 61.75 64.64 66.37 67.52
12 pleats 120 70.91 92.28 99.40 102.96 105.10 106.52

Product Flow

Pleated 120mm Acrylic Filter Bag For Dust Collectors Pleated 120mm Acrylic Filter Bag For Dust Collectors Pleated 120mm Acrylic Filter Bag For Dust Collectors

Pleated 120mm Acrylic Filter Bag For Dust Collectors Pleated 120mm Acrylic Filter Bag For Dust Collectors Pleated 120mm Acrylic Filter Bag For Dust Collectors
