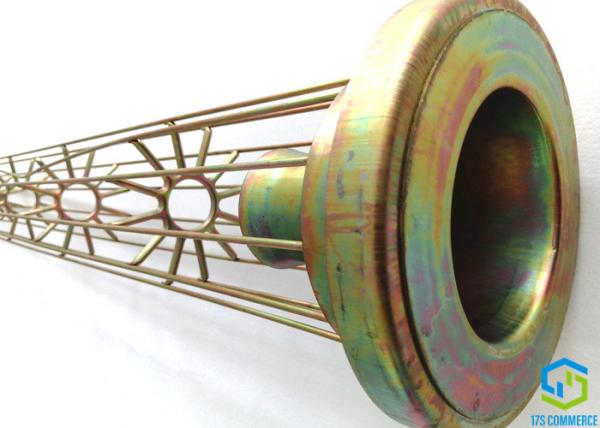

12 Pleat PPS Bag 110mm Dust Collector Filter Cage
12 Pleat PPS Bag 110mm Dust Collector Filter Cage
12 Pleat PPS Bag 110mm Dust Collector Filter Cage
12 Pleat PPS Bag 110mm Dust Collector Filter Cage
12 Pleat PPS Bag 110mm Dust Collector Filter Cage
12 Pleat PPS Bag 110mm Dust Collector Filter Cage
12 Pleat PPS Bag 110mm Dust Collector Filter Cage
12 Pleat PPS Bag 110mm Dust Collector Filter Cage
Specifications
Brand Name :
17s
Model Number :
12 pleat star cage
Certification :
ISO
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Supply Ability :
TBD
Delivery Time :
TBD
Packaging Details :
steel crates
Material :
mild steel, stainless steel, galvanized wire
Finish Treatment :
Silicon Coating, zinc ,electrophoresis coating
Spiders :
press spider
Diameter :
110mm, 120mm, 138mm and Customized
No. of Vertical Wire :
12pcs
Crate :
steel crate
MOQ :
Negotiable
Description

12 Pleat PPS Star Filter Bag Cage Pleat Bag Cage Spider Cage Bag House PPS Star Bag Cage

1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

2. Overview

Style star cage / pleat cage / spider cage
Pleats No. 12 pleats
Material Q235 mild steel
Diameter 110, 120, 138 mm
Vertical Wire Number 12 pcs
Thickness 4 mm
Spider Type press 12 Pleat PPS Bag 110mm Dust Collector Filter Cage
Thickness 1.5 mm
Distance 150-250 mm
Length TBD mm
Structure one section
Joining Method No
Top Cap Type weld U shape top cap
Size be up to customers mm
Thickness 1-1.2 mm
Fix weld to cage
Venturi Size no mm
Thickness 1 mm
Fix weld to top cap 　
Bottom Cap Type press bottom cap
Size 102,112,130 mm
Thickness no mm
Fix no
Finishing Type silicon coating
Thickness 90-140 um
Color black
Pack steel crate

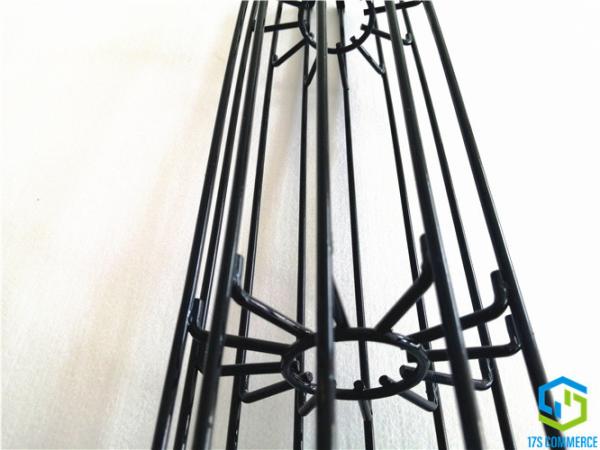

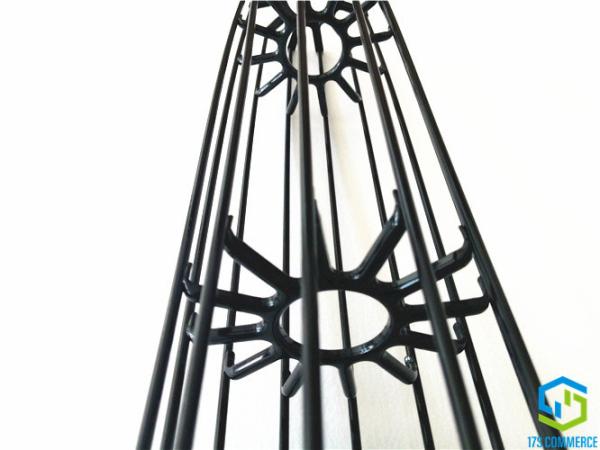

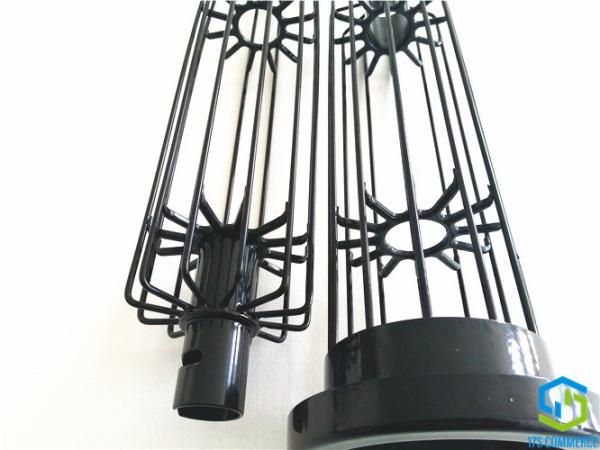

two more spider alternatives

12 Pleat PPS Bag 110mm Dust Collector Filter Cage 12 Pleat PPS Bag 110mm Dust Collector Filter Cage

3. Why Choose Us

1) over ten years experience in this field

2) very strict quality control management

3) perfect feed back from customers about quality,service,shipping etc

4) we have own factory, easy control of quality, leadtime, workmanship and IP protection

5) many big and famous customers buy our products consistently

6) strong R&D team, design and develop and product ability

7) QC and QA inspection before shipping

8) 100% products exported, know customers’ requires

9) Zero complain and claim of our products till now

4. Shipping of cage

Normally shipping by sea, we can ship by air if urgent needed. for samples shipping press is the best choice.

12 Pleat PPS Bag 110mm Dust Collector Filter Cage

5. Contact of us

Zhangjiagang 17s Commerce Co., Ltd

Email: alex.wu@17sindustry.com

Momible/Whatsapp: +86 137 7626 4607

12 Pleat PPS Bag 110mm Dust Collector Filter Cage
