PTFE Star Bag Dust Collector Filter Cage Spider Cage
PTFE Star Bag Dust Collector Filter Cage Spider Cage
PTFE Star Bag Dust Collector Filter Cage Spider Cage
PTFE Star Bag Dust Collector Filter Cage Spider Cage
PTFE Star Bag Dust Collector Filter Cage Spider Cage
PTFE Star Bag Dust Collector Filter Cage Spider Cage
PTFE Star Bag Dust Collector Filter Cage Spider Cage
PTFE Star Bag Dust Collector Filter Cage Spider Cage
Specifications
Brand Name :
17s
Model Number :
8 pleat star cage
Certification :
ISO
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Supply Ability :
TBD
Delivery Time :
TBD
Packaging Details :
steel crates
Material :
mild steel, stainless steel, galvanized wire
Finish Treatment :
Silicon Coating, zinc ,electrophoresis coating
Spiders :
wire spider
Diameter :
110mm, 120mm, 138mm, 144mm, 150mm and Customized
Pleats :
8 pleats
No. of Vertical Wire :
16pcs
Top Cap :
various options
Crate :
steel crate
MOQ :
Negotiable
Shipping Date :
Negotiable
Pay Terms :
T/T L/C
Description

48 Pleat PTFE Star Filter Bag Cage Pleat Bag Cage Spider Cage Bag House PTFE Star Bag Cage

1. Specification

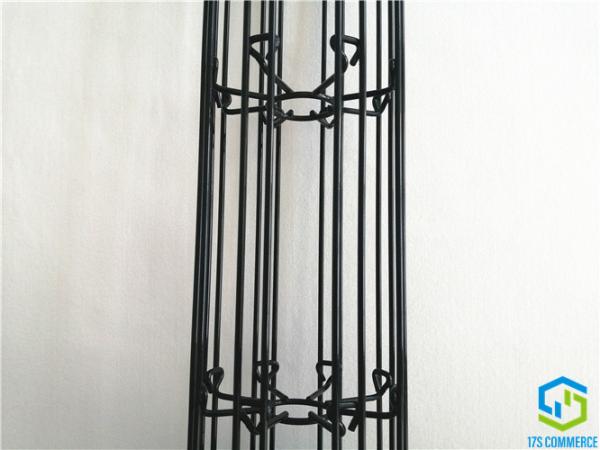

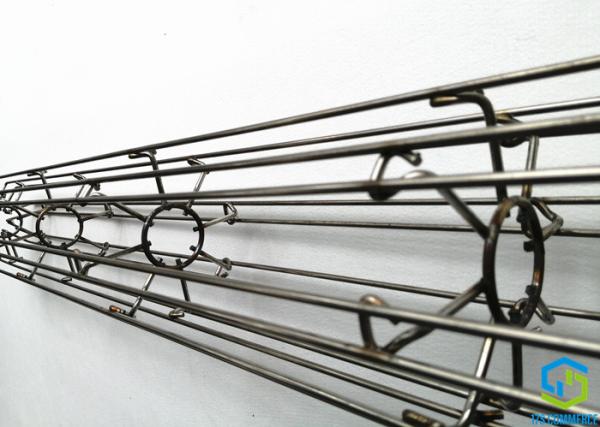

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

2. Datasheet

Style star cage / pleat cage / spider cage
Pleats No. 8 pleats
Material Q235 mild steel
Diameter 110, 120, 138, 144, 150 mm
Vertical Wire Number 16 pcs
Thickness 4 mm
Spider Type wire PTFE Star Bag Dust Collector Filter Cage Spider Cage
Thickness 4 mm
Distance 150-250 mm
Length TBD mm
Structure one section / two sections
Joining Method No

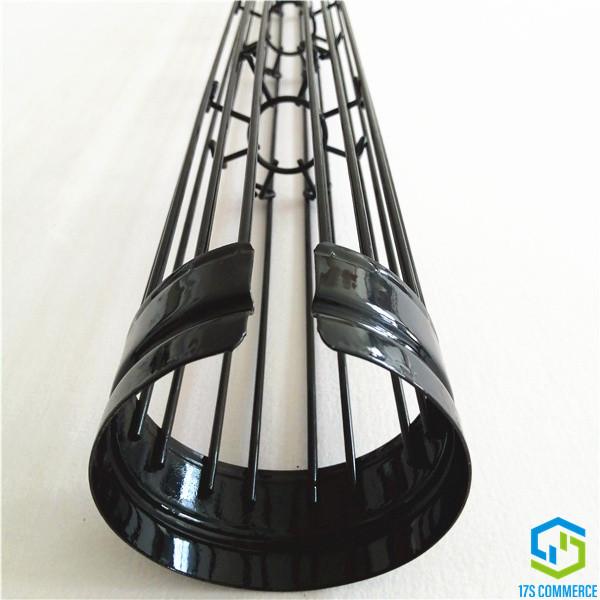

Top Cap Type weld U shape top cap, various choices
Size be up to cage mm
Thickness 1-1.2 mm
Fix weld to cage
Venturi Size no mm
Thickness 1 mm
Fix weld to top cap 　

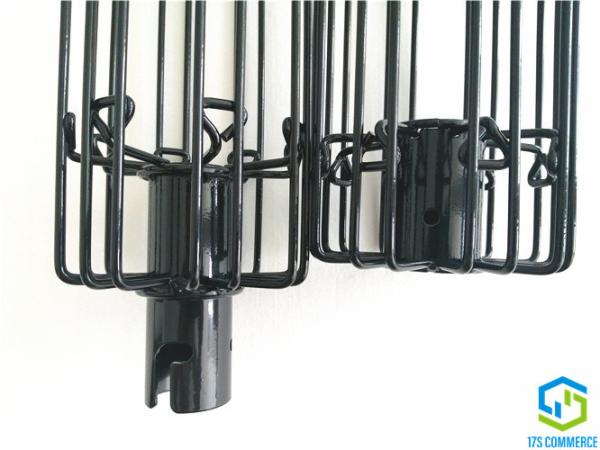

Bottom Cap Type wire bent inworder
Size 120 mm
Thickness no mm
Fix no
Finishing Type silicon coating
Thickness 90-140 um
Color black
Pack steel crate

3. Advantage

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

filter surface Dianmter mm Bag Length
1m 2m 3m 4m 5m 6m
8 pleats 120 38.64 55.97 61.75 64.64 66.37 67.52
130 42.09 59.85 65.77 68.73 70.50 71.69
150 54.06 73.31 79.73 82.94 84.87 86.15
160 73.57 95.26 102.49 106.11 108.28 109.73
12 pleats 120 70.91 92.28 99.40 102.96 105.10 106.52
130 74.82 96.67 103.95 107.59 109.78 111.24
150 72.23 93.76 100.93 104.52 106.68 108.11

So
• longer bag service life

• increase the air volume of existing dust collectors to increase production capacity

• lower emission

• reduce energy consuption

• reduce operation cost

• reduce pressure drop

• lower pulse jet pressure and frequence

• small bag house and building area

• lower the filter velocity

4. The Match of Star bags and Cages

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.

Match Of Star Bags and Star Cages

Cage Pleats Wire QTY Diameter (mm) Remark
cage bag
8 pleats 16 110 120 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm
120 130
138 150
144 155
150 160
12 pleats 12 110 120 4mm vertical wires
120 130
138 150
10 pleats 10 110 120 4mm vertical wires
120 130
138 150
144 155
150 160

5. Application

PTFE Star Bag Dust Collector Filter Cage Spider Cage PTFE Star Bag Dust Collector Filter Cage Spider Cage PTFE Star Bag Dust Collector Filter Cage Spider Cage PTFE Star Bag Dust Collector Filter Cage Spider Cage
