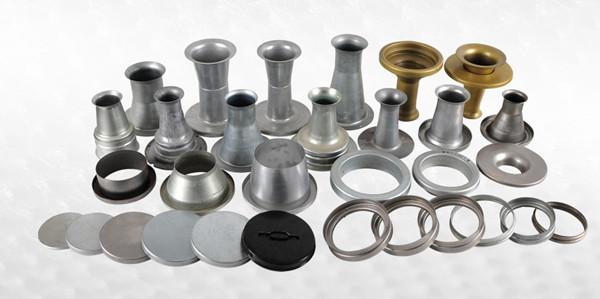

Aluminum Venturi Carbon Venturi Spinning Venturi Stainless Steel Top Cap Galvanized Bottom Clamp

Venturi

Venturi is a component of dust filter cage, which is always used at the top of cage.

The venturis combinate to cage top or CPO (cell plate hole) by welding, riveting, twist, fastening and so on.

．Venturi Material: aluminum, carbon steel, galvanized and stainless steel.

．Venturi workmanship: aluminum mold venturi, metal spinning (flow forming) venturi, stretch venturi, press (punch) venturi and son on

．Venturi Function: a) support the cages and bags

b) if the spray torch (top blowing) is not straight venturi can adjust the compressed air flow, so reduce the scour to dust filter bags directly to extend the life of bags

c) make sure compress air reach deeper in bags to achieve a better dust cleaning

Quick Detail

Top Cap

Top cap is a function part of dust filter cage, which weld to vertical wires of cages and hangs on CPO (cell plate opening).

．Top cap material: carbon steel, galvanized and stainless steel

．Top cap workmanship: stretch top cap, press (punch) top cap

．Top cap construction: integrated top cap, single top cap

Quick Detail

Bottom Cap

Bottom cap is a function part of dust filter cage, which weld or crimp to the vertical wires of cages. It supports the cage and protect dust filter bags. Bottom cap is made of carbon steel, galvanized plate and stainless steel

Quick Detail

Joint

Joint is part of long dust filter cages, which join two or three sections of cages into one when cages install. It is made of carbon steel, galvanized plate and stainless steel. There are kinds of joints for cages, which is up to the cage dsign.

Clamp

Clamp is a kind of fastener. It is used to fasten bags to hanging top cap or cage body or top cap or venturi. Clamp is made of stainless steel.

Package

Shipping Service

Normally shipping by sea, we can ship by air if urgent needed. for samples shipping press is the best choice.
