Dust Collector PPS Filter Bags 160mm Expand Filter Area
Dust Collector PPS Filter Bags 160mm Expand Filter Area
Dust Collector PPS Filter Bags 160mm Expand Filter Area
Dust Collector PPS Filter Bags 160mm Expand Filter Area
Dust Collector PPS Filter Bags 160mm Expand Filter Area
Dust Collector PPS Filter Bags 160mm Expand Filter Area
Dust Collector PPS Filter Bags 160mm Expand Filter Area
Dust Collector PPS Filter Bags 160mm Expand Filter Area
Specifications
Brand Name :
17s
Model Number :
PPS Star / Pleat filter bag
Certification :
ISO
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
TBD
Delivery Time :
TBD
Packaging Details :
Polybag and Pallets or carton and pallet
Name :
Star / Pleat bag, Extend filter surface bag
Felt :
PPS
Diameter :
120mm,130mm,150mm,155mm,160mm
No. of Pleats :
8 pleats, 12 pleats, 10 pleats
head :
Seal Cuff / Bead Cuff
Metal Hoop :
304 Stainless Steel
Bottom :
Two layers
Length :
Customized
Description

PPS Star Bag PPS Dust Filter Bag Bag House PPS Pleat Bag Dust Collector PPS Felt Star Bag Expand Filter Area Star Bag

Description

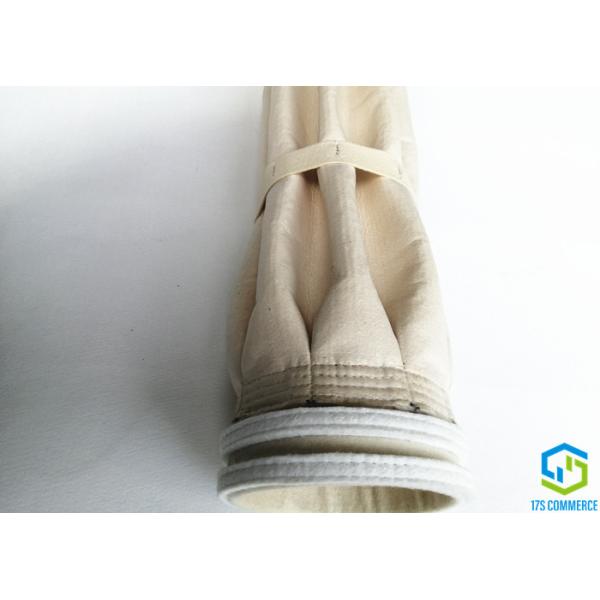

Star filter bags (Star bags) is named pleat bag or extend filter surface bag, a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. It is also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

Characteristics

Stylestar bag, pleat bag, extend surface/area bag
Pleats No.8 pleats, 12 pleats
MaterialPPS
Diameter120,130,150,160mm
LengthTBDmm
Strap / bandTypecut felt strap
afixingthread sewing to bag
Width25mm
Distance250mm
TopOpening120,130,150,155,160mm
CuffTypeseal cuff / bead cuff
Width10-12mm
Thickness8-10mm
Distance4-8mm
Metal hoopinside of topyes
material304 stainless steel
width25-30mm
Fixsew to bag body
Boot / BottomDiameter120,130,150,155,160mm
Height100-120mm
Reinforcementtwo layers
Bottom disctwo layers
Metal hoopno, 20-25mm 304 stainless steel if yes
Fixsew to bag body
SeamTypethread sewing
Bag panel/bodytriple rows sewing
Cuff panel2 double rows sewing
boot upper2 double rows sewing
boot bottomdouble rows sewing
PackPoly bag and pallet, or carton and pallet


Filter surface increase (%) and advantage

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below

filter surfaceDianmter mmBag Length
1m2m3m4m5m6m
8 pleats12038.6455.9761.7564.6466.3767.52
13042.0959.8565.7768.7370.5071.69
15054.0673.3179.7382.9484.8786.15
16073.5795.26102.49106.11108.28109.73
12 pleats12070.9192.2899.40102.96105.10106.52
13074.8296.67103.95107.59109.78111.24
15072.2393.76100.93104.52106.68108.11

So
• longer bag service life

• increase the air volume of existing dust collectors to increase production capacity

• lower emission

• reduce energy consuption

• reduce operation cost

• reduce pressure drop

• lower pulse jet pressure and frequence

• small bag house and building area

• lower the filter velocity
