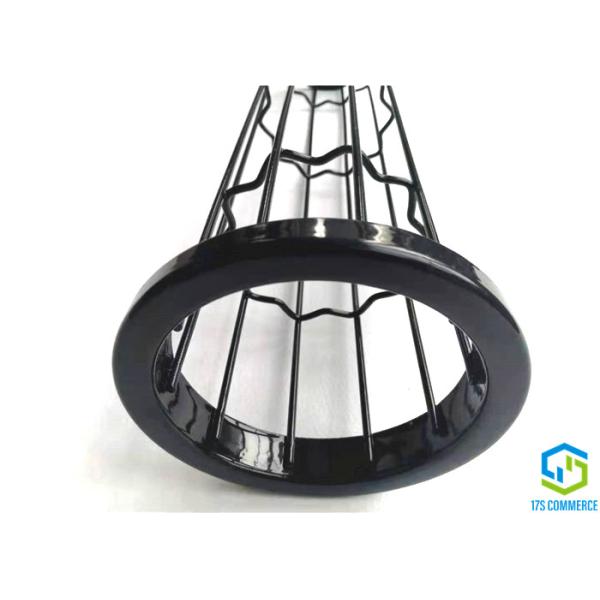

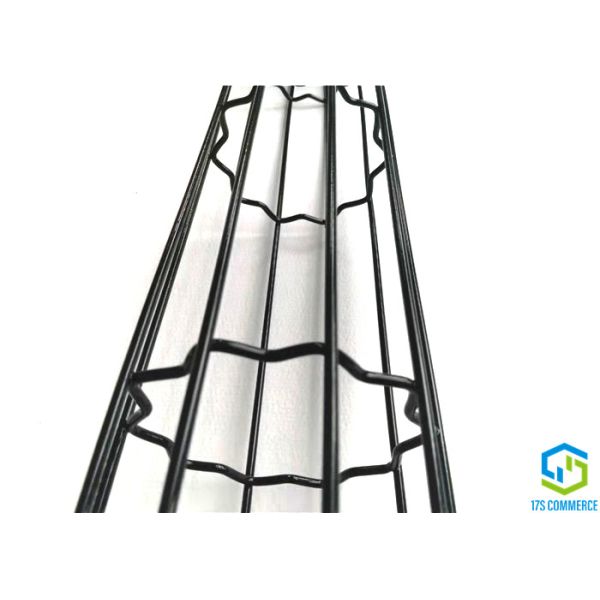

Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
Specifications
Brand Name :
17s
Model Number :
17SRC014
Certification :
ISO
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Supply Ability :
TBD
Delivery Time :
TBD
Packaging Details :
steel crates
Material :
Carbon Steel
Finish Treatment :
silicon Coating
Supporting Ring Shape :
star ring
Diameter :
Customized
Vertical Wires No. :
8 To 24 PCS
Top Cap :
U shape weld to cage
Vertical Wire Thickness :
3-4mm
Description

Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage

Instruction

Style star ring filter cage
Item 17SRC014
Material Q235 wild steel
Diameter see below mm
Vertical / Longitudinal Wire Number 8-24 pcs
Thickness 3-4 mm
Support / Latitudinal Ring Type star ring
Thickness 3.5-4 mm
Distance 150-350 mm
Length TBD mm
Structure one section
Joining Method no
Top Cap Type U shape top cap
Size 　per cage size mm
Thickness 1-1.2 mm
Fix weld to cage
Venturi Size no mm
Thickness no mm
Fix no 　
Bottom Cap Type punch plate
Size 　per cage diameter mm
Thickness 1 mm
Fix weld to cage
Finishing Type silicon coating
Thickness 80-140 um
Color black
Pack steel crate


Star Ring Spec

Star Ring Star Ring Cage Diameter (3.5 mm ventical wire) Star Ring Cage Diameter (4 mm ventical wire)
8 124.5 125.5
123 124
152 153
159 160
10 123 124
123.5 124.5
137 138
145.5 146.5
12 125 126
148 149
146 147
144 145
154 155
16 126.6 127.6
127.1 128.1
137 138
145 146
134 135
124.2 125.2
20 127 128
152.6 153.6
159 160
160.8 161.8

Product Show

Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage Star Ring Dust Collect Filter Cage Silicon Coating Filter Cage Anti-Corrosion Coating Cage
