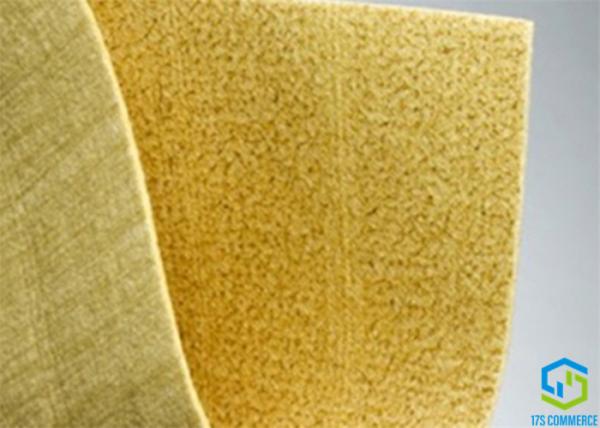

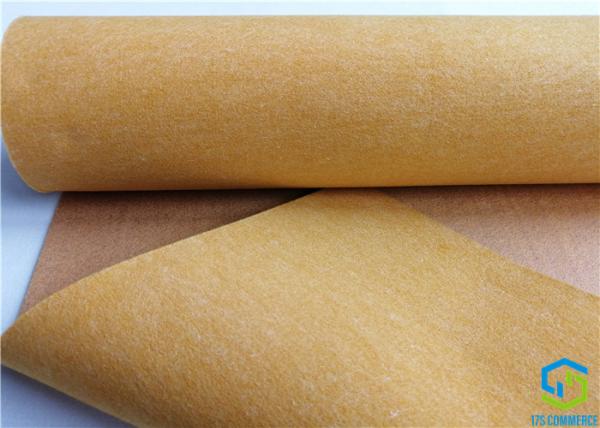

P84 High Temperature Needle Punch Filter Fabric 2.5mm
P84 High Temperature Needle Punch Filter Fabric 2.5mm
P84 High Temperature Needle Punch Filter Fabric 2.5mm
P84 High Temperature Needle Punch Filter Fabric 2.5mm
P84 High Temperature Needle Punch Filter Fabric 2.5mm
P84 High Temperature Needle Punch Filter Fabric 2.5mm
P84 High Temperature Needle Punch Filter Fabric 2.5mm
P84 High Temperature Needle Punch Filter Fabric 2.5mm
Specifications
Brand Name :
17s
Model Number :
P84N550
Certification :
ISO
Place of Origin :
China
Price :
negotiable
Supply Ability :
negotiable
Delivery Time :
TBD
Packaging Details :
Roll
Item :
17SP84N550
Construction :
Punched three layers
Air Permeability :
12 L/m2/s
Working Temperature :
260
Broken Strength :
2.4 Mpa/min
Finishing :
Heat-setting,Singeing
Weight :
550 g/m²
Thickness :
2.5 mm
Description

550g P84 High Temperature Needled Felt P84 Punched Filter Bag Fabric P84 High Efficient Felt

P84 is fiber made by Degussa Inspec Fibres, and is a high temperature polyimide fibre. P84 can withstand up to 260℃ in dry heat conditions or 195 where high moisture is present. Unlike most other fibres, P84 has a trilobal cross section which makes its particle capture and filtration efficiency very high. In some industries P84 is used in the filtration surface of other filter media to improve the filtration efficiency. In the cement industry, P84 is the most commonly used fibre where the off gases from the kiln or clinker cooler are high.

According to the different requirements of the different working conditions, we could do various functional processing on P84 fiber high-temperature resistance needled felt, such as water and oil repellent, PTFE impregnation, coating, lamination and so on.

Features

• Excellent steady under high temperature and resistance to acid
• P84 can operate continuously, under practical and low acid working conditions, at temperatures up to 500°F(260 °C).
• High filtration efficiency, high tensile strength.
• The complex cross sectional shapes create 30-90% more collection surface area when compared to round or oval shaped fibers.
• Low back washing pressure, maximun flexibility
• The unique tri-lobal fiber structure of P84 provides customers with high efficiency filtration, low pressure drop, and reduced cleaning energy.
• Excellent dust cake release
• P84 has irregular, tri-lobal fibers that provide better collection efficiencies and enhanced dust cake release properties.

Physical Parameter of Needling felt P84N550

Item 17SP84N550
Name P84 needling felt 550g
Construction Needling
Composition P84 fiber
Scrim P84
Weight (g/m2) 550
Thickness (mm) 2.5
Air permeability (L/m2/s) 12
Tensile strength (N/5×20cm) Warp ≥800
Weft ≥1300
Tensile elongation (%) Warp <35
Weft <55
Broken strength (Mpa/min) 2.4
Working temperature (℃) ≤ 260
Short time working temperature (℃) 280
The stability of water solution Medial
Finishing treatment High temperature hot pressing,Singeing

P84 High Temperature Needle Punch Filter Fabric 2.5mm

Chemical Resistance

Hydrolysis Biological (mildew, bacteria) Alkalis Mineral Acids Orgnic Acids Oxidising Agents Orgnic Solvents
fair no effect fair very good very good very good excellent


Production Facilities

P84 High Temperature Needle Punch Filter Fabric 2.5mm P84 High Temperature Needle Punch Filter Fabric 2.5mm P84 High Temperature Needle Punch Filter Fabric 2.5mm P84 High Temperature Needle Punch Filter Fabric 2.5mm
