Stainless Steel Y Strainer Filter , 20um Extra Fine Mesh Strainer
Stainless Steel Y Strainer Filter , 20um Extra Fine Mesh Strainer
Specifications
Brand Name :
FLD
Model Number :
Customized
Certification :
IATF 16949
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000+Piece+Per Month
Delivery Time :
10-20Days
Packaging Details :
Plastic Bubble Film + Wooden Box
Material :
Stainless Steel, Monel, Hastelloy, Ti Alloy, .etc
Shape :
Y Shape
Pressure :
≥0.5Mpa
Diameter :
φ20-1000mm
Length :
≤4000mm
Work Temperature :
-60℃-300℃
Description

Working principle and characteristics

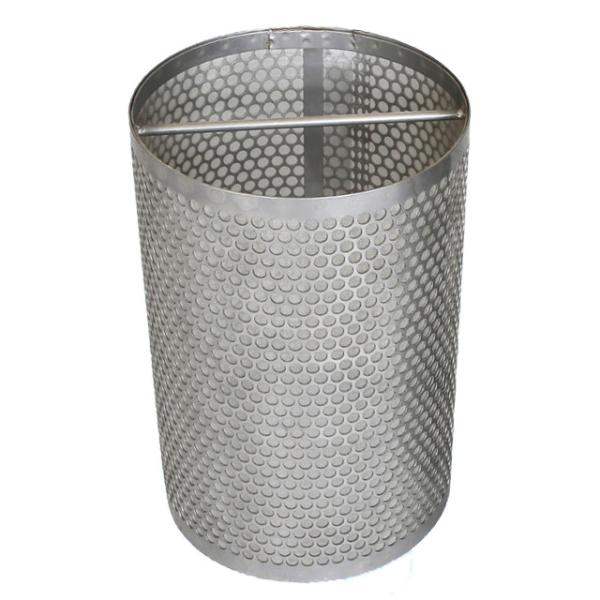

Y type filter basket is the main part of the Y type filter, usually installed in the pressure relief valve, pressure off valve, water level valve or other equipment of the import side, used to remove impurities in the media to protect the normal use of the valve and equipment. Y type filter is with the characteristics of advanced structure, small resistance, convenient sewage and so on. Y type filter can be used for water, oil and gas filtration. General mesh used for water: 18~30mesh, for gas: 10~100 mesh, for oil: 100~480 mesh. When the liquid passes the main tube to enter the basket filter, the solid impurity particles are blocked in the basket filter, and then the clean fluid goes through the basket filter, and discharged from the filter outlet.
Application:
Mainly used in agricultural irrigation, water filtration system, circulating water filtration, petroleum chemical industry, mechanical and electrical, ion exchange medicine pretreatment, especially plays a vital role in sanitary waste water and industrial waste water treatment, with the design and various advantages of the usage, the precious water resources has been effectively reused, also saving a lot of water resources. At the same time, after the treatment by Y type filter, the water quality can not only meet the national emission standards, but also achieve the purpose of recycling usage.
Structure and application device:

Product tags

stainless steel mesh tube filter

,

double mesh stainless steel strainer

,

stainless steel fine mesh strainer
