Specifications
Brand Name :
ZYD
Model Number :
ZYD-WM20
Certification :
CE
Place of Origin :
Ningbo
MOQ :
1000pcs
Price :
USD6
Payment Terms :
T/T, L/C
Supply Ability :
100000PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON BOX
BODY MATERIAL :
BRASS
DN SIZE :
15MM
MIN. Flow rate :
0.03m3/h
Weight :
1.65kg
Trnsitional flow rate(Q2) :
0.12 m3/h
Permanent flow :
1/5m3/h
Overload flow rate :
3 m3/h
Water temperature :
40-90℃
Water pressure :
1.0 Mpa ,1.6Mpa
Usage :
Wahsing machine
Description

Output Capsule Sealing Anti Theft Security Seal Mechanism Electronic Hardness Tap Flow bluetooth Water Meter

DESCRIPTION:

This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.

Compliance with standard: ISO 4064 Class B

SPECIFICATION:

Handheld 4-20ma output capsule sealing anti theft for security seal mechanism electronic hardness tap flow bluetooth water meter
Type
Class
Min flow rate Q₁(m³/h)
Transitional flow rate Q₂(m³/h)
Permanent flow rate Q₃(m³/h)
Overload
flow rate
Q4(m³/h)
WM-15
B
0.03
0.12
1.5
3
WM-20
B
0.05
0.2
2.5
5
WM-25
B
0.07
0.28
3.5
7
WM-32
B
0.12
0.48
6
12
WM-40
B
0.2
0.8
10
20
WM-50
B
0.45
3
15
30

Working condition:Water temperature: 0.1℃～40℃ for cold water meter .0.1℃～90℃ for hot water meter.

Water pressure : ≤1.0Mpa or1.6Mpa

Output Capsule Sealing Anti Theft Security Seal Mechanism Electronic Hardness Tap Flow bluetooth Water Meter Output Capsule Sealing Anti Theft Security Seal Mechanism Electronic Hardness Tap Flow bluetooth Water MeterOutput Capsule Sealing Anti Theft Security Seal Mechanism Electronic Hardness Tap Flow bluetooth Water Meter

Maximum permissible error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2%;
Hot water meter ±3%
Type
Wheel (pcs)
Length (mm)
Width (mm)
Height (mm)
Weight (kg)
Qty/ctn (pcs)
carton size (m³)
WM-15B
5
165
98
113
1.65
10
0.025
WM-15M
8
165
87
100
1.3
20
0.041
WM-20B
5
195
98
115
1.85
12
0.033
WM-20M
8
190
87
99
1.5
20
0.048
WM--25B
5
225
104
123
2.6
5
0.024
WM--32B
5
260
104
116
3
10
0.043
WM--40B
5
300
125
156
5.5
2
0.017
WM-50B
5
300
125
165
7.5
2
0.017

Main Features:

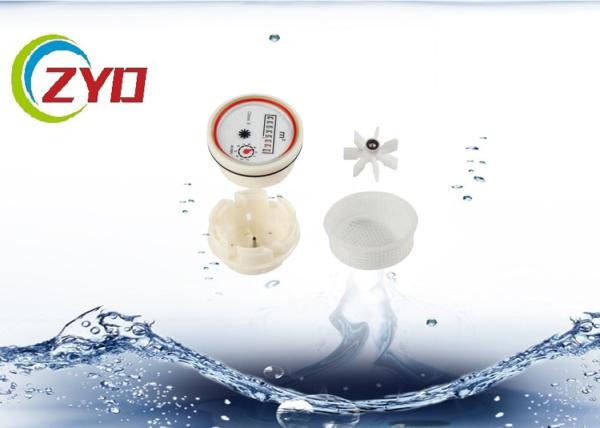

1) Multi-jet, dry-dial, easy for maintenance

2) Magnetic drive reliable characteristic, long working life

3) Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service

4) Technical data conform to international standard ISO4064 Class B

Quality and inspection :

*We promise supply you high quanlity and durable goods for you.
*Our worker will check everyone accessories before hand-assembled
*Our quality inspector will check everyone product one by one before packing
*Regular checking on line from production in each workshop

Packaging and Shipping:

1) The package standard : standart export carton, box .

2) If customer has special requirement. it is available to provide

the colorful package against the design of customer.
