1.5 Inch PN16 Washer Hose Bib , Silver Nickel Plated Washing Machine Tap
1.5 Inch PN16 Washer Hose Bib , Silver Nickel Plated Washing Machine Tap
1.5 Inch PN16 Washer Hose Bib , Silver Nickel Plated Washing Machine Tap
1.5 Inch PN16 Washer Hose Bib , Silver Nickel Plated Washing Machine Tap
Specifications
Brand Name :
ZYD
Model Number :
ZYD-450
Certification :
CE
Place of Origin :
Ningbo
MOQ :
1000pcs
Price :
USD0.5
Payment Terms :
T/T
Supply Ability :
100000PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON BOX
BODY MATERIAL :
BRASS
Handle :
Iron with plastic cover
Weight :
122G
Seal :
PTFE
Ball :
Brass polsihed
Size :
1/2"
Working pressure :
1.6Mpa
Working temperature :
-10~100℃
Installation :
Wall mounted
Usage :
Wahsing machine
Description

Wall Mounted Pb Less Forging Brass Ball Stem Nickel Plated PN16 1/2" inch Brass Tap Bibcock With Steel Handle

DESCRIPTION:

(1) It's bottom loaded stem designed , this anti-blow-out stem also prevents teampering with the internals of the valve

when in the line .

(2) It have a double seal with elastic O-RINGS chosen for their high resistance to ageing.

(3) Perfect seal at low and high pressureand wear resistant, solid and reliable for life-time use.

SPECIFICATION:

1 )code: ZYD-450
2) size: 1/2"-1"
3) max pressure: 25bar

4) Temp.:-10<t<100

5) suitable medium: water

6) material: brass body , brass ball , steel handle.

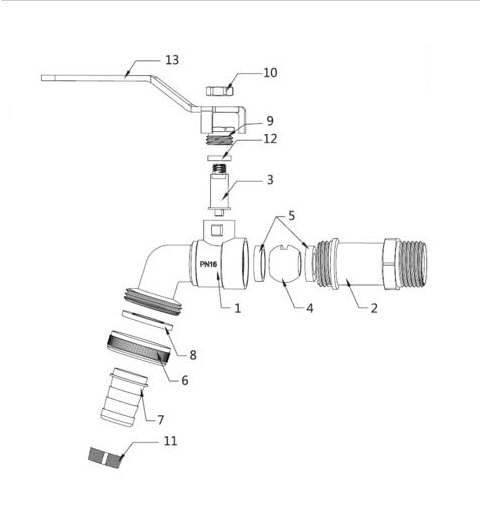

1 Parts Material Drawing picture
2 Body Brass 1.5 Inch PN16 Washer Hose Bib , Silver Nickel Plated Washing Machine Tap
3 Cap Brass
4 Stem Brass
5 Ball Brass
6 Ball seats PTFE
7 Hose Union Brass
8 Hose Brass
9 Gasket NBR
10 Press Nut Brass
11 Nut Brass
12 Water plastic filter HDPE
13 PTFE sea PTFE
14 Handle Iron

ADVATAGE:

1. Hot forged body, a. longer durable lifetime & b. better leaking tight performance;

2. Easy operation lever handle;

3. Nickel plated surface, in nice looking apprearance & also anti-corrosive after long time using;

4. Annealing treatment body & bonnet after forging, avoid the crack risk, guarantee long lifetime & better temperature & pressure resistant performance;

5. 100% pressure test to guarantee no leakage;

6. Material: Brass body, bonnet & ball; Virgin teflon ball seat; NBR Shore 70 O-Ring; Steel lever handle with plastic cover;

(Brass designation: HPb58-2.5, C37710, CW617N, CW614N, CW602N etc.)

7. Well-equipped Test & Inpsection laboratory.

Quality and inspection :

Fegular checking on line from production in each workshop, one

special inspector inspect the goods in random during the period time

of production.

Packaging and Shipping:

1) The package standard : standart export carton, box .

2) If customer has special requirement. it is available to provide

the colorful package against the design of customer.
