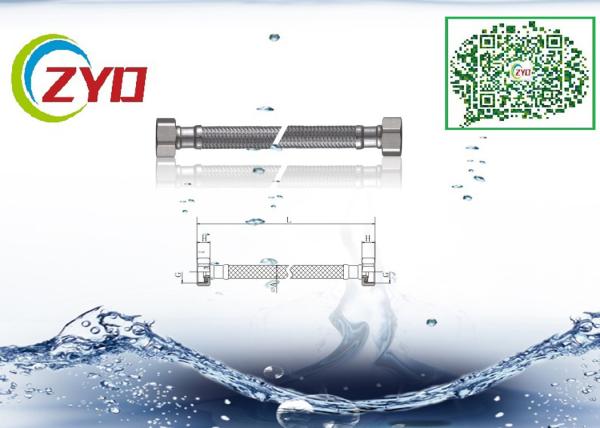

Sink Faucet Braided Hose High Durability 59 Brass Forging Outer Screw
Sink Faucet Braided Hose High Durability 59 Brass Forging Outer Screw
Specifications
Brand Name :
ZYD
Model Number :
ZYD-BH17
Certification :
CE
Place of Origin :
YUYAO
MOQ :
1000PCS
Price :
USD0.8
Payment Terms :
T/T
Supply Ability :
100000PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON BOX
Hose Size :
F1/2xF1/2 60cm
Length :
60mm
Structure :
Bradied wire 304 /201 Stainless Steel
Working temperature :
0-90 degree
Working pressure :
Less than 4.5Mpa
Application :
connecting bidet,toilet,etc.
Screw :
F1/2"XF1/2" BSP thread brass 59#
Seal :
Epdm pad
Inner tube :
PEX/EPRM
Description

F1/2"XM10/1 201 Stainless Steel Wire Flexible Metal Braided Knitted Hose For Kitchen Sink Faucet Connector High Pressure

Description:
The toilet braided hose outer layer is made of high quality 7 line diameter 0.18mm 304 stainless steel wire, It is not easy get rust under normal use, and the bursting pressure up to 4.5Mpa,inner pipe adopts high quality EPDM rubber pipe, which is clean, environmental , no bad smell, high temperature resistance up to 90 degrees, effectively reducing explosion accident.inner core and the outer screw are made of 59brass forging process, has advantages of strong ,durability and environmental protection.good connection,and will not get broken easily.EPDM or NBR O RING,Good sealing, non-toxic and tasteless.
all the hose made by us all passed water pressure testing.Strict quality control from raw materials to finished products, have to undergo rigorous testing, every steps checking to ensure high quality
Specification:
Sink Faucet Braided Hose High Durability 59 Brass Forging Outer Screw

A.ConnectingScrew: F1/2;F3/8;F9/16;M1/2 brass/stainlesssteel/zinc/iron B.Washer: silicon/EPDM/NBR/rubber

(plain/cone) C.brass/stainless steel/aluminum D.PEX/silicon jel/EPDM/NBR/rubber/PVC E.Wire:AISI304/301//201

F.Sleeve:brass/AISI304;301;202;201 G."o" ring: EPDM,NBR H. nozzle:57/59/62 Brass,Stainless steel,Zinc

Product Name: 304 /201 Stainless Steel Braided/ Knitted Hose
MODEL NO.: ZYD-BH017
Length: 20cm,30cm,45cm,60cm,90cm,100cm,120cm,150cm
Knitted Thread: 7/8 threads or optional
Material: 304/201 stainless steel wire optional
Pipe Diameter: Support different sizes:12mm,13mm,14mm,15mm...
Size of Nuts: Support different sizes:Female/Male 1/2",3/4",3/8".....
Nuts Material: Plastic,Zinc,Brass,Stainless Steel
Insert Core: Plastic,Brass
Inner Tube: PVC,EPDM or are your request
Hose Type: braided hose for connection toilet,kitchen faucet,water heater etc.
Package: Plastic bag,Plastic bag with card,Double Blister,Color box
Usable range: connection for water pipes / plumbings
OEM: Supported (package,laser,printing,carton according to your request.)

Production process:

Sink Faucet Braided Hose High Durability 59 Brass Forging Outer Screw

Sink Faucet Braided Hose High Durability 59 Brass Forging Outer Screw

Sink Faucet Braided Hose High Durability 59 Brass Forging Outer Screw

Quality control:

Incoming Materials -> IQC ( Incoming Quality Control ) -> Materials to be stored in warehouse -> Production Dept. take the materials -> Production Dept. makes pre-production sample -> Sales Dept. confirms the samples -> Production Dept. start mass production -> IPQC ( Input Quality Control ) -> LQC ( Line Quality Control ) -> FQC ( Finished Quality Control ) -> OQC ( Outgoing Quality Control ) -> Goods ready for shipment

Usage:

Kitchen faucet,Basin faucet,Toilet,water heaters, water tanks, air –conditionings and washing machines etc.

Packing and delivery:

Each one put into PE bag blister,50pcs/ctn.shipped in 25days after receive deposit.
