Specifications
Brand Name :
ZYD
Model Number :
ZYD-GV201
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD2
Payment Terms :
T/T
Supply Ability :
1000000PCS/MONTH
Delivery Time :
35DAYS
Packaging Details :
EACH ONE PACK ONE PLASTIC BAG,CERTAIN QTY ONE SMALL BOX,AND THEN CARTON BOX
Material :
CW617N forged Brass
Temperature :
-20℃/ 120℃
Media: :
Air Water Oil Gas
Size Range :
1/2”-4”
Connection :
FemaleThread, BSP.NPT
OEM :
Available
PN :
16-100
Process technical :
Hot Forging
Description

CW617/59#57# Forged brass bronze water gate valve , With Non-rising Stems,Threaded Bonnet With DN design

Specification:

Product Name Brass Gate Valve
Size 1/4"-4"
Material Brass
Field of Application Water
Working Pressure 20Bar/ 290Psi
Guarantee Time 10 Years
Working Pressure -20℃ to 120℃
Service 7*24 Hours
Insurance $10 Million
Package Standard export package or Customized
Payment L/C,D/P,T/T,Western Union,Credit Card
Delivery Ningbo Port,28 days after payment
Connection End Female Thread
Handle Color Redt
Place of Origin Zhejiang, China (Mainland)
Brand Name ZYD
Certificate BS5154
Body and Ball Material Brass
Function Kitchen, Home, Commercial, Garden
and General
Valve guarantee 10000 Times 10 Years

Main technical parameters:

1. We select high quality copper material and apply hot forging process in the production process.

2. The main working medium are water,oil.gas.etc.

3. Working temperature range from -20℃ to 120℃

4. Thread standard:ISO228

Each nominal working pressure of our gate valve are 2.5Mpa,2.0Mpa and 1.6Mpa

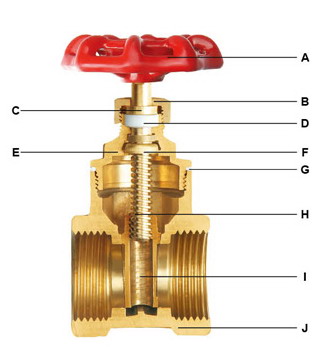

Description(structure of gate valve):

CW617N Forged Brass Plumbing Valves Non Rising Stem Threaded Bonnet DN Design

A.Handwheel B.Gland nut C. Gaskets D. PTFE E.Bonnet F. O ring G. Gaskets H. Stem I. Wedge disc J.Body

Pic. Size Weight Packing L W H
CW617N Forged Brass Plumbing Valves Non Rising Stem Threaded Bonnet DN Design 1/2” 196g 120pcs 42.5 21.5 32.5
3/4” 281g 80pcs 34.5 22 32.5
1 411g 60pcs 31 27.8 37.5
1-1/4” 638g 32pcs 34.5 22 32.5
1-1/2” 761g 24pcs 26.5 26 36.5
2” 1362g 20pcs 42.5 21.5 32.5
2-1/2” 2200g 12pcs 37 25 37.5
3” 3300g 8pcs 42.5 25.5 27.5
4” 5000g 4pcs 34 30 30

Quality control :

The production follow the valve standard strictly. Toyota Lean Production line used by Valogin aim to improve the quality.
We test each piece valve during the production, quality control in forge, machine, assemble and all the process in order to guarantee the quality.

Competitive Advantage:

1. Small resistance with the fluid

2. Small force is needed when open and close the valve

3. Unlimited by the direction of flow medium

4. Resistance between the working medium and the sealing surface is smaller than that of stop valve’s when the valve is opened completely

we can copperate with customer to build a warehouse with mutual benefit, save the purchase time

CW617N Forged Brass Plumbing Valves Non Rising Stem Threaded Bonnet DN Design
