Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Butterfly Handle Plumbing Ball Valve , M1/2 X 16 Full Port Brass Gas Valve
Specifications
Brand Name :
ZYD
Model Number :
ZYD-BV034
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD1
Payment Terms :
T/T
Supply Ability :
100000PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON BOX
Material :
CW617 OR 57,59 BRASS
Surface :
Niclke-chrome plated
Handle :
Butterfly with red color butterfly Aluminum handle
Stem :
Brass with two O ring
Ball :
with millor surface chrome plated
Weight :
135g
Port Size :
16mm
Pressure :
Medium Pressure
Description
Full Port Hot Forged Male Female Nickle-Plated Brass Ball Valve For Water , Oil, Gas

Description:

ZYD Ball valve with male-female connections.For plumbing systems,CW617N nickel-plated brass.Full port steel butterfly handle(red).Brass stem with double O-ring,brass ball with chrome-plated with mirror surface.Nut with anti-corrosion,Max.working pressure at 20℃ with water and not dangerous gas,4.2Mpa for 1/2”,3/4”,3.5Mpa for 1”,1-1/4”,1-1/2”,2”. Min.working temperature:-20℃ with 50% glycol solutions.Max.working conditions dry saturated steam:185℃with 1,05Mpa
Components:

NO.
Component
Material
1
Body
C37700
2
Bonnet
C37700
3
Ball
C37700
4
Seat Ring
Teflon
5
Stem
C37700
6
Packing Rings
Teflon
7
Washer
C37700
8
Handle
Steel & Aluminium
9
Nut
Steel
Fatures:

Normal presure:1.6MPa

Working medium:water

Working temperature:-20≤T≤120 centigrade

Ball valve are bottom loaded stem designed , this anti-blow-out stem also prevents teampering

with the internals of the valve when in the line

ball valve have a double seal with elastic O-RINGS chosen for their high resistance to ageing

Perfect seal at low and high pressureand wear resistant, solid and reliable for life-time use .

Thread: ISO228/1:2000

Quality and inspection:


Fegular checking on line from production in each workshop, one special inspector inspect the goods in random during the period time of production. we are able to provide you test certificate and mill certificate if required.

Production step:

1) purchasing the material and forged the semi-products .

2) processing the semi-products in workshop .

3) assembling the goods .

4) testing the sealing in pressure and checking quality of the goods

5) package

6) deliveing the goods on time .

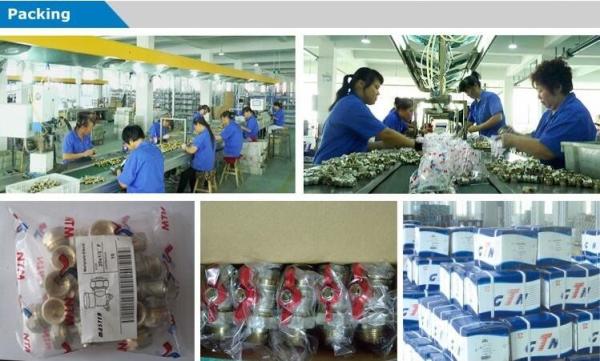

Packing:

1) the package standard : standart export carton, box .

2) if customer has special requirement. it is available to provide the colorful package against the design of customer .
