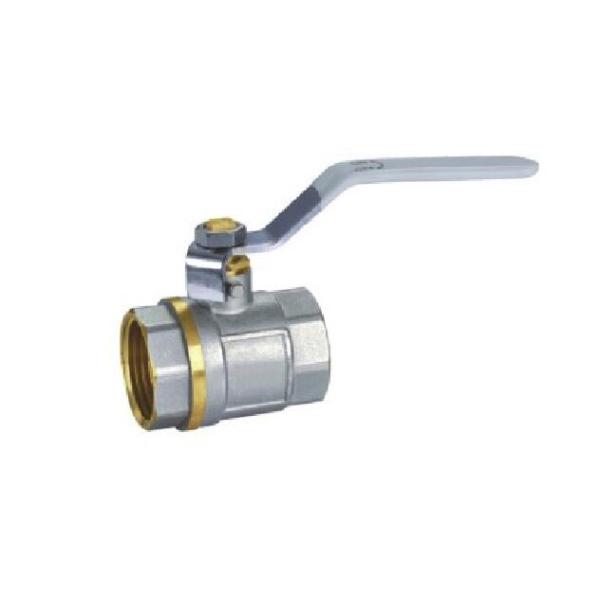

Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve
Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve
Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve
Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve
Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve
Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve
Specifications
Brand Name :
ZYD
Model Number :
ZYD-BV044
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD2
Payment Terms :
T/T
Supply Ability :
1000000PCS/MONTH
Delivery Time :
35DAYS
Packaging Details :
EACH ONE PACK ONE PLASTIC BAG,CERTAIN QTY ONE SMALL BOX,AND THEN CARTON BOX
Material :
CW617N forged Brass
Temperature :
-20℃/ 120℃
Media: :
Air Water Oil Gas
Size Range :
1/2”-4”
Connection :
FemaleThread, BSP.NPT
OEM :
Available
PN: :
16-100
Handle :
Level Handle
Ball :
Brass
Description

CW617N DN20 F1/2"Xf1/2" Forged Brass bronze water Ball Valve Threaded Bonnet Yellow Nickle Plated PB less

Description:

Name:Brass ball valve
Material: Brass & DZR brass(chrome plated)
We have different kinds of specification:
1/2",3/4",1'',1-1/4'',1-1/2'',2'',2-1/2'',3'',4''
Working Pressure: 1.6Mpa
Medium: water, gas
Working Temperature: -30℃

Motorized ball valve&Motorized valve&fan coil thermostat valve
Top quality,factory price.
Material: brass body,brass ball,aluminum handle.

Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve

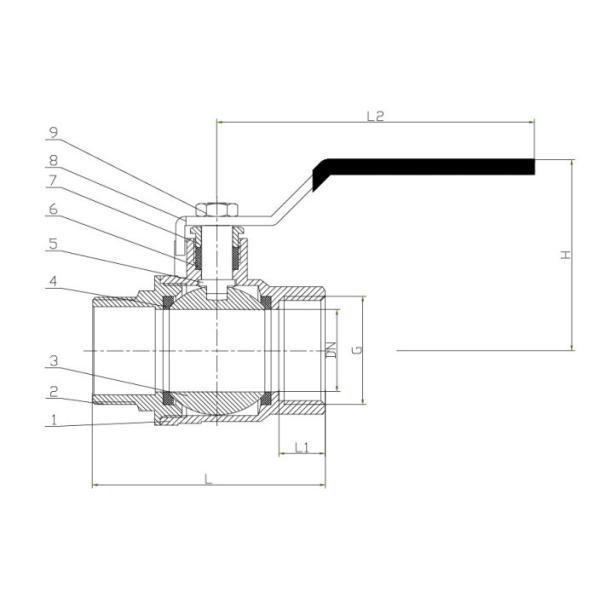

SIZE DN L L1 H L2
1/4" 10 45 85 44 11
3/8" 10 45 85 44 11
1/2" 15 54 91 49 14.5
3/4" 19 61 100 55 15
1" 25 73 122 64 17
1-1/4" 32 81 122 72 17.5
1-1/2" 40 94 150 88 18
2" 50 108 150 97 20
2-1/2" 64 136 235 119 22.5
3" 79 156 235 130 26.5
4" 99 184 260 146 30.5


Technical Standard:

No. Component Material
1 Body Brass
2 Bonnet Brass
3 Ball Brass
4 Seat Ring Teflon
5 Stem Brass
6 Packing Rings Teflon
7 Gland Nut Brass
8 Handle Steel
9 Nut Steel

1. Normal pressure:PN25

2. Working medium:water,gas,oil.

3. Working temoerature:-20℃≤T≤150℃

4. Thread standard:ISO228

Application:

HVAC system

heating system

water treatment system

industrial equipments

Advantage:

1. Full range size and differents connection for option

2. 100% test before delivery

3. High quality with competitive price

4. Final Inspection report sent to customers for record

5. Quality gurantee more than 50years

Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve Forged Brass Bronze Ball Valve , 1 / 2” - 4” Threaded Bonnet Brass Water Valve
