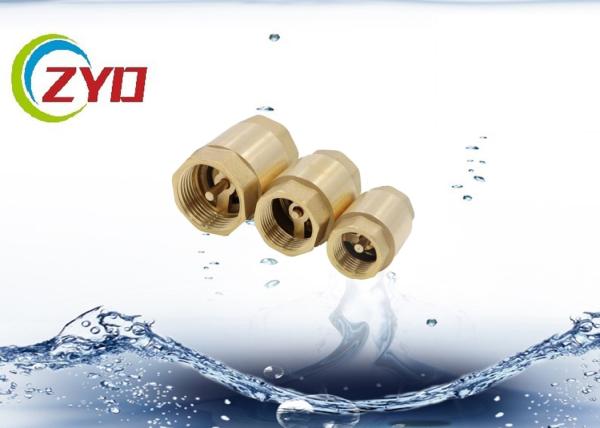

Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2 - 4 Size
Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2 - 4 Size
Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2 - 4 Size
Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2 - 4 Size
Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2 - 4 Size
Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2 - 4 Size
Specifications
Brand Name :
ZYD
Model Number :
ZYD-SCV022
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD1
Payment Terms :
T/T, L/C
Supply Ability :
100000PCS/MONTH
Delivery Time :
35DAYS
Packaging Details :
EACH ONE PUT INTO ONE PLASTIC BAG,THEN CERTAIN QTY ONE SMALL BOX,OURSIDE CARTON BOX
Working media :
Air ,Gas,Water
Material :
Brass
Size :
1/2"-4"
Temperature :
-20℃/ 120℃
Pressure :
16-100Mpa
Treatment :
Sand blasting polishing
Screw Type :
According buyer requirements
Technical :
Hot forged
Description

1/2"-2" All copper Silencing Spring Lifting Type Check Calve With Spring Brass Core Vertical Water Meter Pump Valve

Specification:

1. We select high quality copper material and apply hot forging process in the production process.

2. The main working medium are water,oil.gas.etc.

3. Working temperature range from -20℃ to 100℃

4. Thread standard:ISO228

5. Each nominal working pressure of our gate valve are 2.5Mpa,2.0Mpa and 1.6Mpa

6. Working pressure 16 bar (232 psi)
7. Thread ISO228 (equivalent to DIN 259 and BS2779)

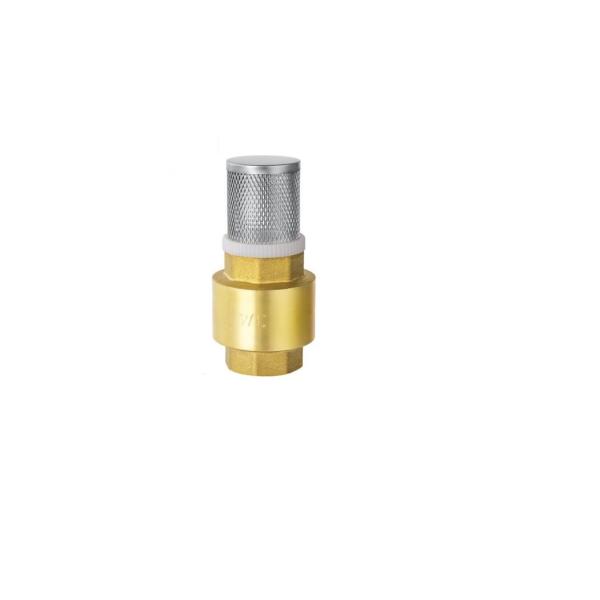

Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2

Materials:

Body:Brass inernal seat:stainless steel plate 304AISI fitted with BBR ,Cover plate and rod in brass

Working temperatures:

Air:-20℃ to 110℃

Water:0℃ to 90℃

Gas:-20℃ to 60℃

DN SIZE H L Kpa
15 1/2” 46.5 34.5 1172
20 3/4” 53 34.5 1172
25 1” 58 42 1172
32 1-1/4” 66.5 59.5 1172
40 1-1/2” 68 68 965
50 2” 77 86.5 965

Main technical parameters:

Main technical parameters:

Pic. Size Weight Packing L W H
Silencing Spring Lifting Brass Plumbing Valves Vertical Type 1/2 1/2” 120g 120pcs 35 18.5 24.5
3/4” 180g 80pcs 28 18.5 24.5
1 270g 60pcs 35 18.5 24.5
1-1/4” 530g 32pcs 32 18 27.5
1-1/2” 590g 24pcs 29 23 27.5
2” 900g 20pcs 47 23 27.5
2-1/2” -- -- -- -- --

Applications:

Applicable medium: water, oil, gas, steam and so on.such as machinery and equipment, chemical equipment, general parts, industrial equipment, plumbing equipment, papermaking equipment, pharmaceutical equipment, general equipment, petrochemical equipment, power equipment, powder metallurgy equipment, mining equipment, electronic industry and other municipal.
