Automatic Feeding Milling Drilling Machine Vibrating Disk Slot For Brass Valve
Automatic Feeding Milling Drilling Machine Vibrating Disk Slot For Brass Valve
Automatic Feeding Milling Drilling Machine Vibrating Disk Slot For Brass Valve
Automatic Feeding Milling Drilling Machine Vibrating Disk Slot For Brass Valve
Specifications
Brand Name :
ZYD
Model Number :
ZYD-XC32
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD7000
Payment Terms :
T/T
Supply Ability :
50PCS/MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN PALLET
Workpiece dia. :
-Φ14-32mm
Processing speed :
15-20pcs/min
Processing range :
The ball with axle hole and axle handle
Work procedure :
Lather,cut,chamfer
Diameter tolerance :
≤±0.02mm
Surface roughness :
1.6
Spindle speed :
1400r/min
Motor power :
Automatic
Voltage :
380V 50HZ
Weight :
500kg
Description

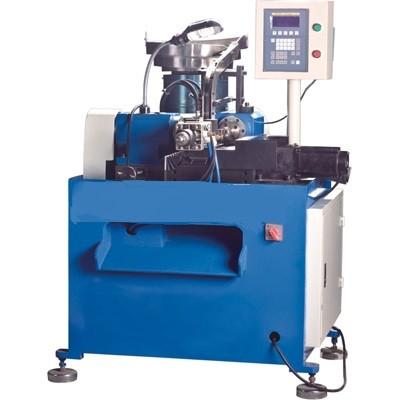

Automatic Feeding Vibrating Disk Slot Milling & Drilling Machine For Brass Ball / turning lathe machine

Description:

This model is designed to process any valve-like products made from copper. The machine tool had passed strict examination and met relevant requirements before leaving factory.

The machine tool is featured by its superior performance, high efficiency and high safety, which is ideal equipment you used to lower production cost and improve production efficiency.

Main parameters:

1. Voltage: 380V (three-phase four-wire), 50HZ

2. Motor power: 1.5KW, double speed

3. Net weight: 600Kg

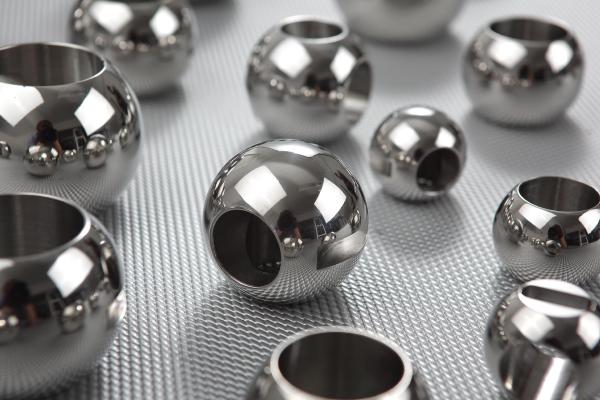

4. Workpiece size: SΦ14~SΦ 39 ball valve

5. Capacity: 15~20 PCS/Min

The machine mainly consists of the following components:

①. feeder ②. electrical control system ③. slot milling mechanism ④ . feeding mechanism

⑤. clamping mechanism ⑥. drilling mechanism ⑦. motor mounting plate

⑧. pneumatic triplet (air filter , pressure regulator and lubricator) ⑨ . power switch ⑩ . rack

Characteristic:

This machine is suitable for the processing of a large quantity of brass valve "ball",stable accurency quality and high relibility.
