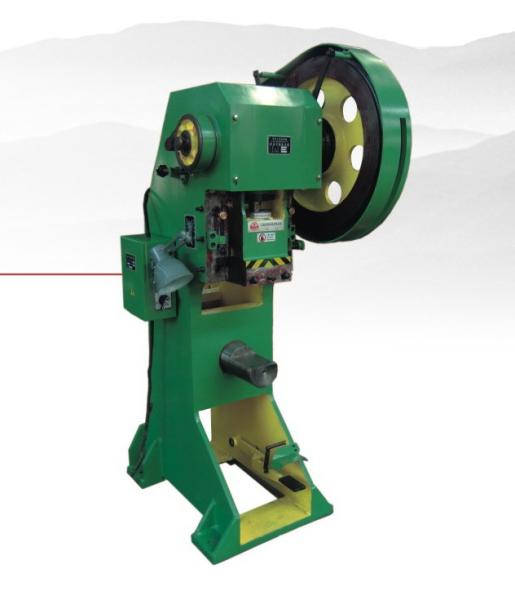

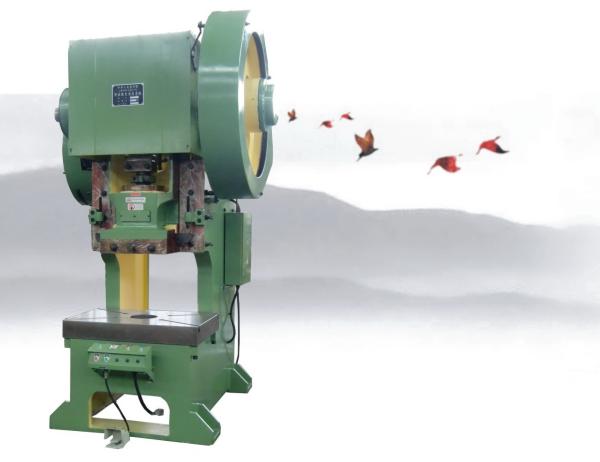

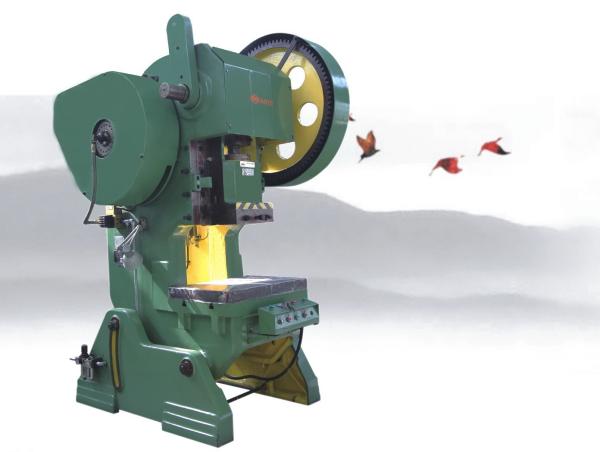

6.3MT Open Type Inclinable Press machine , Hot Die Forging Press Machine / cnc press machine


Description:

Puncher Machine is a metal forming process machine that uses a puncher to force a tool, called a punch, through the workpiece to create a hole via shearing. The punch often passes through the work into a die. A scrap slug from the hole is deposited into the die in the process. Depending on the material being punched this slug may be recycled and reused or discarded. Punching is often the cheapest method for creating holes in sheet metal in medium to high production volumes. When a specially shaped punch is used to create multiple usable parts from a sheet of material the process is known as blanking. In forging applications the work is often punched while hot, and this is called hot punching

Open type inclinable press machine, hot die forging press machine series is suit for punching, cutting, bending, hot forging and other stamping workpiece, widely use
for electrical, motor, Auto vehicles, food cans , machinery processing factory and other industrial sectors, machine can run well at basic parameters and curve range,under the certain confition can be operate Single or continuous time.doing mould adjustment and finish process working.it’s very popular among different kind of industry.

The main performance characteristics:

1. Steel plate welding machine, good rigidity, more stable accuracy.
2. Crankshaft longitudinal, compact structure, beautiful appearance.
3. Electric adjustment of the height of the mould, digital display control height.
4. Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.
5. Combined pneumatic friction clutch brake, joint stable, action sensitivity.
6. Collapse type safety device, to ensure the safety of the whole machine.
7. Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.
8. The slider can be moved with a small movement, emergency stop motion, more secure operation.
9. The circuit uses double valve control, the action is nimble, accord with the safety standard of press.

Specifications:

Competitive Advantage:

1, High rigidity and stable precision.
2, Well-knit and easy operation.
3, Sensitively movement and convenient servicing.

Applications:

1. Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.
2. Widely used in hot forging products,like valves, electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.
