Dual Spindle Metal Manual Lathe Turning Machine , Drilling / Reaming / Tapping Compound Machine
Dual Spindle Metal Manual Lathe Turning Machine , Drilling / Reaming / Tapping Compound Machine
Dual Spindle Metal Manual Lathe Turning Machine , Drilling / Reaming / Tapping Compound Machine
Dual Spindle Metal Manual Lathe Turning Machine , Drilling / Reaming / Tapping Compound Machine
Specifications
Brand Name :
ZYD
Model Number :
SF-80V/S
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1,00pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Maximum diameter of tapping :
M45
Maximum diameter of drilling :
40mm
Spindle speed of drilling :
870~1100r/min
Spindle motor power of drilling :
3kw/4P
Spindle motor power of tapping :
2.2kw/6P
Spindle speed of tapping :
350~550r/min
Machine dimension :
650x1130x1630mm
Machine Weight :
950kg
Description

manual lathe machine / Vertical Double-shaft/dual spindle manual –Drilling ,Reaming&Tapping Compound Machine

Description

Specification:


(1) Suitable for drilling and tapping in quantity productions at one time.

(2) Both the left and right of workbench adopt cylinder for minimal vibration.

(3) Clamp system uses cylinder to hold the mould for fast fixing.

(4 ) Slider system adopts guide way ultrasonic frequency quenching and lubrication system for better capability.

(5) SF-KT126*2 processor can be selected to realize double drill and double tapping.

(6) Manual oil injector,manually feeding lubricating oil before and after the processing can maintain the machine in good function.

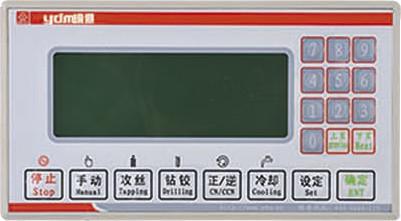

(7) Liquid crystal operation panel can reflect the total quantity of processed products.

Parameter
Units		 Model
SF-70V/S
The maximum diameter of drilling 40mm The maximum diameter of drilling
The maximum diameter of tapping M45 The maximum diameter of tapping
Spindle motor power of drilling 3kw/4P Spindle motor power of drilling
Spindle motor power of tapping 2.2kw/6P Spindle motor power of tapping
Net Weight of Machine 950kg Net Weight of Machine
Spindle speed of drilling 870~1100r/min Spindle speed of drilling
Spindle speed of tapping 380~550r/min Spindle speed of tapping
Spindle travel 110mm Spindle travel

Fuction:

1. Specially designed computer-controlled system,facillitating the operation.

2. Applicable for processing parts of large batch, one-off drilling and threading extending high efficiency.

3. Compact frame with pleasing appearance.
4. Sliding surface treated by ultrasonic quenching with lubrication device, ensuring the surface of high service life

5. Workbench capable of moving to left and right, with a pneumatic device and a cushioning and positioning device

Competitive Advantage:

The electrical is adopted PLC programmable controller. This machine can be applied in components processing in large quantity. The drilling and threading processing can be finishing once. The guide rail(guideway) quenches by super audio frequency. Slide moving use with buffer, low vibrate, and adopts pneumatic clamp, loading and unloading fastly.
