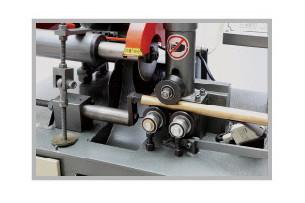

General Type Automaitc Metal Cutter Machine Brass / Aluminum Extruded Sections
General Type Automaitc Metal Cutter Machine Brass / Aluminum Extruded Sections
General Type Automaitc Metal Cutter Machine Brass / Aluminum Extruded Sections
General Type Automaitc Metal Cutter Machine Brass / Aluminum Extruded Sections
General Type Automaitc Metal Cutter Machine Brass / Aluminum Extruded Sections
General Type Automaitc Metal Cutter Machine Brass / Aluminum Extruded Sections
Specifications
Brand Name :
ZYD
Model Number :
ZYD-018
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD4000
Payment Terms :
T/T
Supply Ability :
100PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
WOODEN PALLET
Cutting Dia. :
Φ8-Φ45
Blade Dia. :
Φ90-Φ160
Max cutting length :
120MM
Blade Inner Hole Dia. :
Φ22,Φ27,Φ32MM
Working rate :
10-100PCS/MINS
Machine accurency :
±0.1MM
Main Power :
3KW
Main spindle speed :
Brass 1800RPM,Aluminum 3450RPM
Description

General Type Brass & Aluminum Extruded Sections High Speed Automaitc Cutting Machine​

Description:

1. Suit for cutting different shape, round,square,hexagonal and so on ,especially for Copper and aluminum material.

2. High efficiency,fast cutting;multiple-machine operation by one operator save labor cost,length and perpendicularity calibration saves on material

3. Full-featured fuction:auto-feeding,fixed-length,convertor advance of tool,quick return,metal chop separation and overload protection

4. Stable performance:the conventional mechanical drive and the quality fitting guarantee the reliable performance

Integrated function:the security protective cover increases the sense of security and improves the appearance

Modle UNIT ZYD-T32S ZYD-T50S
Main engine power KW 4KW 5KW
Suitable material - IRON ,ALUMINUM,COPPER
Max cutting dia. MM IRON32,copper,aluminum60 Iron50,copper,aluminum80
Max cutting length MM Standard260(customization available
Fixed-length feeding mode - Servo motor,precision ball screw
Workable cutting tip - Extra hard wolfram steel saw balde,HSS high speed steel ball screw(for copper and aluminum cutting)
Cutting tip inner hole MM 40 40
Cutting precision MM ±0.05 ±0.05
Machine weight KG 500 600
Machine diamension MM 1200x900x1650 1200x900x1650

Advantage:

1. Automatic feeding,fix length,cutting,count, Workpiece and chip separate

2. quency-changing stepless speed regulation device , Automatic warning after cutting finish,Delay stop.

3. Economical energy saving type,cutting finish No waste.

4. Easy operate, safety and reliable.

Applications:

The special designed features are suitable for automatic batch blanking45# steel,20#steel,bearing steel and copper and aluminum profiles

This machinery is ideal ancillary equipment for industries of bearing,Auto parts

Hardware products,electronic components and pneumatic components
