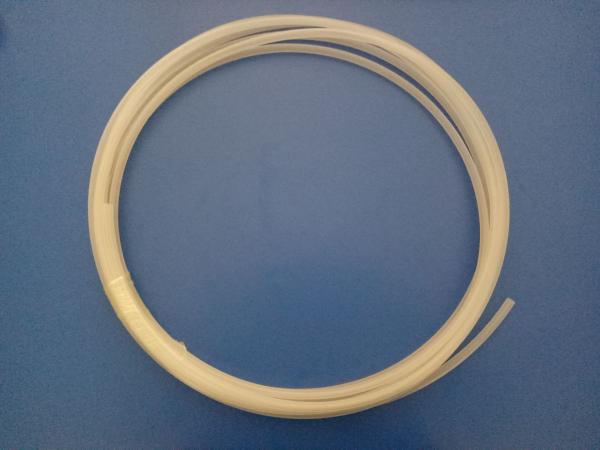

Environmental Protection Raw Materials , Flexible Plastic Pipe / PEX-B Pipe For Stainless Steel Braided Hose
Environmental Protection Raw Materials , Flexible Plastic Pipe / PEX-B Pipe For Stainless Steel Braided Hose
Specifications
Brand Name :
ZYD
Model Number :
ZYD-PEX70/80
Certification :
CE
Place of Origin :
CHINA
MOQ :
1MT
Price :
NEGOCIABLE
Payment Terms :
T/T
Delivery Time :
30DAYS
Packaging Details :
WOODEN PALLET
Product Name :
PEX INNER PIPE
Color :
Transparent
Sustained pressure :
0.5-1Mpa
sizes :
6-12mm
Working Temperature :
-70°C to 110 °C
Pressure :
3.0MPA / 26°C, 1.0MPA /90°C
Application :
Inner pipe
Material :
PEX
Description

Eenvironmental Protection Transparent Stainless Steel Braided Hose , Shower Hose Inner Pipe , Pex Pipe

Description:

Flexible PEX-b Pipe is made of excellent and high purity LDPE raw materials; it can be used at the temperature from 23 ℃ for acid and alkali, with an excellent resistance to the reducing agent, oxidant, toluene, xylene and gasoline.

Flexible PEX-b Pipe can transport the fluid after the steel-wire reinforced. It has excellent anti-aging properties with more than 20 years service time.

The most advantage of flexible PEX-b pipe is its flexibility just like the rubber. It is sanitary and environment friendly and its sanitation meet the standard of B/T 17219-1998, no stink, without lead or mercury, especially for supplying of chemical materials, being an inner line of industrial equipments.

Specifications:

Item Testing result
Appearance Pipe inside and outside surface is clean, smooth, no bubbles, no obvious scratches, no depression, no impurities
Sustained Pressure(26℃) 0.5-1.0Mpa
Shoe A 90-70
Hygienic performance Meet 17219-1998 GB/T standards

Item Hardness Advantage Application

ZYD-PEX80

Transparent,black,or

Other color can choose

 80-85

1. Food Hygiene class

2. Good elastic

3. Aging resistance, chemical resistance

4. No heavy metals (CD)

5. Better strength

 Braided hose

ZYD-PEX70

translucent

 70-75

1. Food hygiene class

2. Soft and elastic

3. Aging resistance, chemical resistance

4. No heavy metals (cadmium)

 Shower hose

Size Outer Diameter (mm) Min Wall Thickness (mm) Min Weight (g/m)
8*5 8 1.5 27.6
8*6 8 1 20
9*6 9 1.5 31.8
9*7 9 1 25.2
10*6 10 2 46
10*7 10 1.5 36.1
10.5*7.5 10.5 1.5 38.2
11*8 11 1.5 40.3
11*7 11 2 50.9
12*8 12 2 63
Outside Diameter tolerance is +0.3

Applications:

Inner pipe for braided hose and shower hose.Green environmental protection

ZYD transparent PEX inner tube is made of high purity thermoplastic elastomer Soft and elastic.health and environmental protection, no odor, no lead, mercury, cadmium and other heavy metals.

ZYD dedicated PEX inner tube, use company's special technology to enhance the special curing process. Products quality reachs national 17219-1998 GB/T standard requirements.

Pipe Especially using for inner pipe of braided hose and shower hose.ZYD transparent PEX inner tube is made of high purity thermoplastic elastomer Soft and elastic.health and environmental protection, no odor, no lead, mercury, cadmium and other heavy metals.

ZYD dedicated PEX inner tube, use company's special technology to enhance the special curing process. Products quality reachs national 17219-1998 GB/T standard requirements.

Pipe Especially using for inner pipe of braided hose and shower hose.

Competitive Advantage:

a. Sanitary and environment friendly

PEX-b Flexible Pipe is made of imported LDPE raw material, meeting FDA requirements and B/T 17219-1998 standard. Its material has no other filler as well as toxic additives, so PEX-b Flexible Pipe can be used for drinking Liquid.

b. Excellent quality with lower prices

PEX-b Flexible Pipe can work at the temperature of 23±3℃ for a long time, without any break when expands twice diameter, and it will restore to their original when the pressure eliminates.

The price of PEX-b Flexible Pipe is more competitive than the EPDM rubber, butyl rubber and silicon rubber, with better performance of EPDM material, much better than PVC material because of denisity
