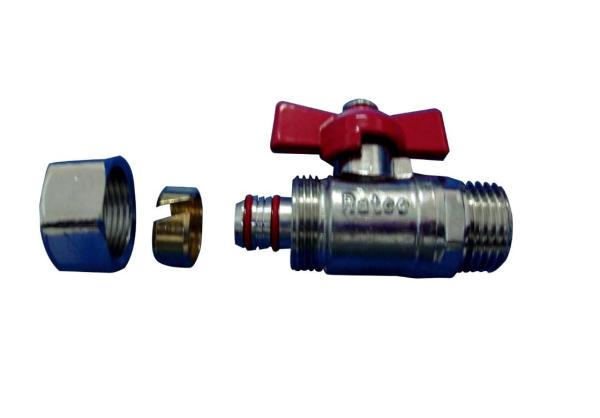

CFull Port Nickel Plated Brass Ball Valve Locking Handle For Gas
CFull Port Nickel Plated Brass Ball Valve Locking Handle For Gas
CFull Port Nickel Plated Brass Ball Valve Locking Handle For Gas
CFull Port Nickel Plated Brass Ball Valve Locking Handle For Gas
Specifications
Brand Name :
ZYD
Model Number :
ZYD-BV081
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD1
Payment Terms :
T/T
Supply Ability :
100000PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON BOX
Material :
CW617 OR 57,59 BRASS
Surface :
Niclke-chrome plated
Handle :
Butterfly with red color butterfly Aluminum handle
Stem :
Brass with two O ring
Ball :
with millor surface chrome plated
Weight :
Can be design as customer requirements
Description
Full Port Hot Forged Male Female Nickle-Plated Brass Ball Valve For Water , Oil, Gas
Product Description
ZYD Ball valve with male-female connections.For plumbing systems,CW617N nickel-plated brass.Full port steel butterfly handle(red).Brass stem with double O-ring,brass ball with chrome-plated with mirror surface.Nut with anti-corrosion,Max.working pressure at 20℃ with water and not dangerous gas,4.2Mpa for 1/2”,3/4”,3.5Mpa for 1”,1-1/4”,1-1/2”,2”. Min.working temperature:-20℃ with 50% glycol solutions.Max.working conditions dry saturated steam:185℃with 1,05Mpa

Main features and materials:

Suitation for plumbing systems

Connections:MXF(ISO 228)

Full port

CW617N Nickle plated brass ball valve

Stem with double O-ring

Nut with anti-corrosion coating,with guarantee seal and hologram

Steel butterfly handle with PVC anti-corrosion coating

Surface: nartural, nickel plated, chrome plated.

Handle: Flat steel, Drawn steel, Aluminum, Aluminium buttelfly.
brass body, brass bonnet, brass ball and brass spindle.

Size: 1/4" ~ 4"

Connection: Thread (MxF, FxF,MxM) & Welding

Thread: BSP & NPT

Also have many other types ball valves for selecting

FATURES:

Normal presure:1.6MPa
Working medium:water
Working temperature:-20≤T≤120 centigrade
Bote-bibcock have a double seal with elastic O-rings , chosen for their high resistance to ageing
Perfect seal at low and high pressure and wear resistant . Solid and reliable for life-time use
the internals of the valve when in the line .
hread: ISO228/1:2000

Applications:

Max working pressure at 20℃with water and not dangerous gas. 4.2Mpa for 1/2”,3/4”;

3.5Mpa for 1”,1-1/4”,1-1/2”,2”.

Min.working temperature:-20℃with 50%glycol solutions

Max working conditions with dry saturated steam:185℃with 1.05Mpa

Quality and inspection:


Fegular checking on line from production in each workshop, one special inspector inspect the goods in random during the period time of production. we are able to provide you test certificate and mill certificate if required
