Frequency Control Aluminium Mirror Vacuum Coating Machine For Mirror Coating
Frequency Control Aluminium Mirror Vacuum Coating Machine For Mirror Coating
Frequency Control Aluminium Mirror Vacuum Coating Machine For Mirror Coating
Frequency Control Aluminium Mirror Vacuum Coating Machine For Mirror Coating
Frequency Control Aluminium Mirror Vacuum Coating Machine For Mirror Coating
Frequency Control Aluminium Mirror Vacuum Coating Machine For Mirror Coating
Specifications
Brand Name :
ZYD
Model Number :
ZYD-SFL
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD100000
Payment Terms :
T/T, L/C
Supply Ability :
10PCS/MONTH
Delivery Time :
50Days
Packaging Details :
NAKE PLASTIC COVER PACKING
Type :
Vacuum coating machine
Power :
210KW
Voltage :
380V
chamber size :
1200L
Water pressure :
≥0.2MPa
Air pressure :
0.5-0.8MPa
Description

ZYD-SFL aluminium mirror vacuum coating machine/glass sheets vacuum coating machine/mirror coating

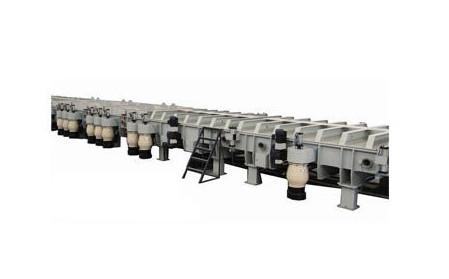

We have two solutions for coating mirro, one is continious magnetron sputtering coating line, another is box type mirror coating machine ,the choice is based on the capacity and film you need

Product Description

Technical configuration (All our machine can be customized by your products and needs):

1. Chamber structure: vertical/horizontal front door structure or continuous coating line. Chamber adopts SUS304 material.size can be customer-made by your products.

2. Sputtering power supply :equipped with DC and medium frenquency power 60KW-100KW

3. Sputtering target: equipped with Aluminum or Titanium targets .

4. Transmission system:frequency control

5. Vacuum system: Diffusion pump (molecular pump is optional)+Roots pump +Mechanical pump + Rotary vane pump(cryogenic pump is optional)

6. Gas control: multi way sevenstar mass flow controller

7. Heating system:Controllable and adjustable from room temperature to 350 (PID temperature control).

9. Control mode: manual operation +semiautomatic + automatic integration / touch screen HMI + PLC

10 .Other technical parameters:

Pump time: 5*10-2pa<4mins

Ultimate vacuum:5*10-4pa

Water pressure≥0.2Mpa 3m3/h, water temperature≤25, gas pressure:0.4-0.8Mpa
