Steel Structure Pipe Production Line , Metal Roll Forming Machines With Waves
Steel Structure Pipe Production Line , Metal Roll Forming Machines With Waves
Specifications
Brand Name :
ZYD
Model Number :
ZYD-BA
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD5000
Payment Terms :
T/T
Supply Ability :
100PCS/MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN PALLET
Raw material :
S/S304, S/S316
Application :
Deep wave pipe
Production Capacity :
2.5-3.5M/min
Dimension(L*W*H) :
10x1.2x1.3M
Speed control :
By inverter
Power(W) :
11.5KW
Description

metal forming machine ZYD-BA Ring Wave Shaping Machine , steel forming machines

steel structure house metal c shape purlin roll forming machine with waves includes in: decoiler , leveling equipment, roll forming system, punching equipment ,cutting equipment, hydraulic station, electric controlling system and supporter for purlin.

We can also customize the machine according to your requirement.

Product Description:

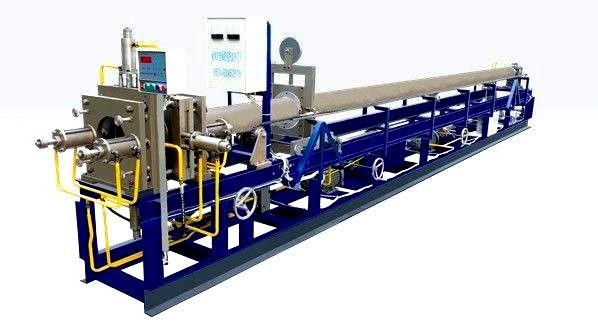

The metal corrugated pipe tube manufacturing machine is specially designed for stainless steel welding corrugated hose,

The metal corrugated pipe tube manufacturing machine is automatic running and can work continously with stable ability.

We can produce different kinds of SS corrugated pipe machines with good quality.

The pipes we produce can use for city fuel gas conveying water supply, gas and liquid.

The final welded corrugated hose conforms to national standard RSB-IF-13-GB/T.

For more details, pls contact with us directly for the exact offer with machine configuration

Specification:

1. Size range: DN8 up to DN50

2. Wall thickness: 0.15-0.3mm

3. Production speed:2.5~3.5m/min

4. Strip thickness: 0.18-0.3mm

5. Material: sus304, 321 and 316L

6. Power:4-7KW

7. Outer dimensions: 8000*1100*1700

Application of the hose: gas hose, solar hose,water hose etc

Packing&Shipping:

Wooden packed and 30 days lead time
