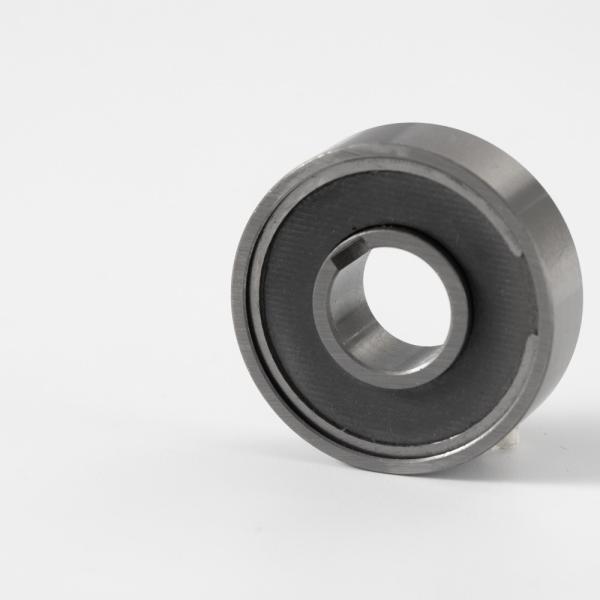

AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing One Way Bearings
Specifications
Brand Name :
Tianniu
Model Number :
AS Series
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiate
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
10000 per month
Delivery Time :
5-10 working days
Packaging Details :
Cartons by sea shipping by airplane
Name :
AS One Way Sprag Bearing Overrunning Clutch
Material :
GCR 15 Bearing Steel
Type :
One way bearings
Thichness (mm) :
19-140
Torque (Nm） :
2.1-1063
Weight (Kg) :
0.01-1.41
Bore Size(mm) :
6-80
Warranty :
12 months
Description

One Way Bearings AS15 AS25 AS60 AS35 Roller Freewheel Clutch Bearing​

Production introduction

Type AS is a rollet type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62..ball bearings. A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page.
The dimensions of the AS type wedge type one-way clutch are the same as those of the 62 series deep groove ball bearings (CSK40). It is a combination of a deep groove ball bearing and a sprag clutch, which has been filled with grease. The seal can prevent dust above 0.3mm from entering the interior. The transmission of torque is in the form of interference fit. The outer ring is pressed with a rigid enough frame with N6 tolerance, and the inner ring is pressed with the outer diameter of the working shaft. When installing, pay attention not to knock the inner ring to press the outer ring into the frame, and not to knock the outer ring to press the inner ring to squeeze into the outer diameter of the shaft. The transmission torque is small (7.4~260N.m), and the limit speed is high. Widely used in printing machinery, packaging machinery, food machinery, electric drum, reducer and testing equipment, etc.
Character
1. NSS-K Series is Cam type clutch
2. Clutches have same diameters as metric medium series ball
bearing.
3. Clutches require bearing support to assure concentricity between
inner and outer race.
4. Clutches must be lubricated before putting in service.
5. Excellent for applications where space is restricted.
The key way is in accordance with DIN 6885 sheet 3.

Products Parameters
Type Size Torque Overrunning speeds Dimensions Weight Drag torque
AS (NSS) dH7 TKN1) nimax2) namax3) Dr6 D5 L s e f
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
6 2.1 5000 7500 19 15.8 6 0.3 0.6 0.3 0.01 0.18
8 3.8 4300 6500 24 20 8 1.3 0.6 0.6 0.02 0.24
10 6.8 3500 5200 30 25.9 9 1.3 0.6 0.6 0.03 0.36
12 13 3200 4800 32 28 10 1.3 0.6 0.6 0.04 0.48
15 14 2800 4300 35 31 11 1.4 0.6 0.6 0.05 0.7
20 40 2200 3300 487 40 14 2.4 0.8 0.8 0.12 1.4
25 56 1900 2900 52 45.9 15 2.4 0.8 0.8 0.14 2.4
30 90 1600 2400 62 55 16 2.4 0.8 1 0.22 7.8
35 143 1300 2000 72 64 17 2.5 0.8 1 0.31 9
40 185 1200 1800 80 72 18 2.5 0.8 1 0.39 10
45 218 1000 1600 85 77 19 2.5 1.2 1 0.44 11
50 230 950 1500 90 82 20 2.5 1.2 1 0.49 13
55 308 800 1300 100 90 21 2.5 1.2 1 0.66 14
60 508 700 1100 110 100 22 2.5 1.2 1.5 0.81 26
80 1063 600 900 140 128 26 2.5 1.2 1.5 1.41 58

NOTES:
AS6 without keyway. ØD = -0-0,009
AS8-12 keyway to DIN 6885.1.
Other sizes to DIN 6885.3
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
Mounting dimensions are identical to ball bearings series 62
