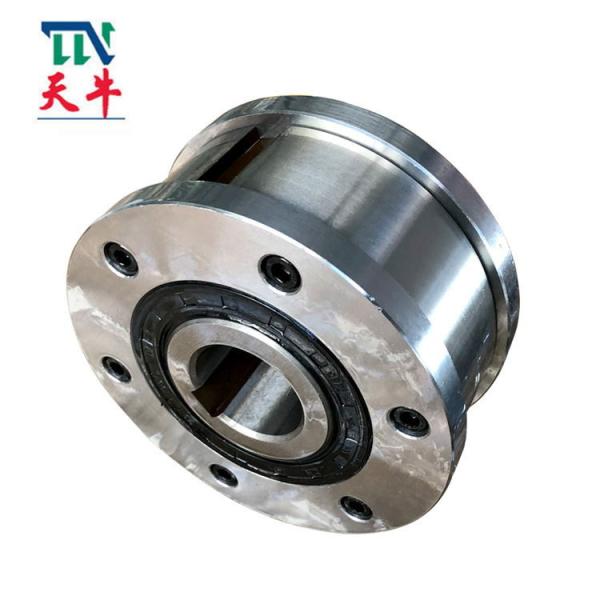

CKZ-C One Side Clutch Bearing Cam Clutch Wedge Type For Packing Conveyer
CKZ-C One Side Clutch Bearing Cam Clutch Wedge Type For Packing Conveyer
CKZ-C One Side Clutch Bearing Cam Clutch Wedge Type For Packing Conveyer
CKZ-C One Side Clutch Bearing Cam Clutch Wedge Type For Packing Conveyer
Specifications
Brand Name :
Tianniu
Model Number :
CKZ-C series
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
10000 per month
Delivery Time :
5-10working days
Packaging Details :
Cartons by sea shipping by airplane
Certification :
ISO-9001
Name :
CKZ-C Wedge type One Way Clutch Bearing For Packing And Conveyer
Material :
GCR 15 Bearing Steel
Type :
Cam bearings
Thichness (mm) :
26-115
Torque (Nm） :
92-1000
Weight (Kg) :
0.95-81.98
Bore Size(mm) :
62-320
Warranty :
12 months
Description

CKZ-C Wedge type One Way Clutch Bearing For Packing And Conveyer​

Production introduction

CKZ-C series is a wedge type one-way clutch, which contains two sets of ball bearing supports. According to different needs, the factory contains lubricating oil or grease.

The inner ring and the shaft, the outer ring and the workpiece are connected by keys, and the workpiece is clamped by the end caps.
Commonly used in textile, chemical, food, packaging, printing and other mechanical equipment. Used as an overrunning or positioning feed clutch

Types CKZ-F are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.

Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design that uses tall sprags with multi-radius active surfaces. Designed specially for large size freewheels to compensate for any eccentricity due to bearing wear.
We can supply any bore size between the minimum and maximum specified in the table, including imperial sizes.

Products Parameters
TYPE

RATED

TORQUE

[N·m]

OVERRUNNING

SPEEDS

[r/min]

 DIMENSION IN MM

WEIGHT

[kg]
OUTER RACE INNER RACE

OTHER

SIZE

INNER

RACE

OUTER

RACE

D

[h7]

 B n-M bw×tw

d

[H7]

 C bn×tn D1 L
CKZ-C1262 92 840 510 62 26 6-M5 4×2.5 12 50 4×1.8 70 48 0.95
CKZ-C1568 115 840 510 68 26 6-M6 4×2.5 15 50 4×1.8 76 48 1.13
CKZ-C2075 158 700 425 75 27 6-M5 5×3.0 20 51 4×1.8 83 49 1.40
CKZ-C25100 448 630 340 100 33 6-M8 6×3.5 25 57 6×2.8 104 55 3.07
CKZ-C30120 530 560 340 120 35 6-M8 12×5 30 63 12×3.3 130 61 4.68
CKZ-C35130 920 490 255 130 37 6-M8 12×5 35 65 12×3.3 140 63 5.75
CKZ-C40140 1516 420 212.5 140 43 6-M8 12×5 40 74 12×3.3 150 72 7.67
CKZ-C45150 1500 420 212.5 150 48 6-M8 14×5.5 45 78 14×3.8 160 76 9.74
CKZ-C50170 2350 350 170 170 51 6-M8 16×6.0 50 84 16×4.3 180 82 13.34
CKZ-C60190 3100 280 170 190 55 6-M8 18×7.0 60 94 18×4.4 200 92 17.71
CKZ-C80200 3960 210 127.5 200 60 6-M10 18×7.0 80 98 18×4.4 210 96 19.98
CKZ-C110250 7000 180 110 250 104 8-M8 32×11 110 146 32×7.4 262 144 50.21
CKZ-C110320 10000 130 80 320 115 8-M20 28×10 110 180 28×6.4 330 175 81.98
