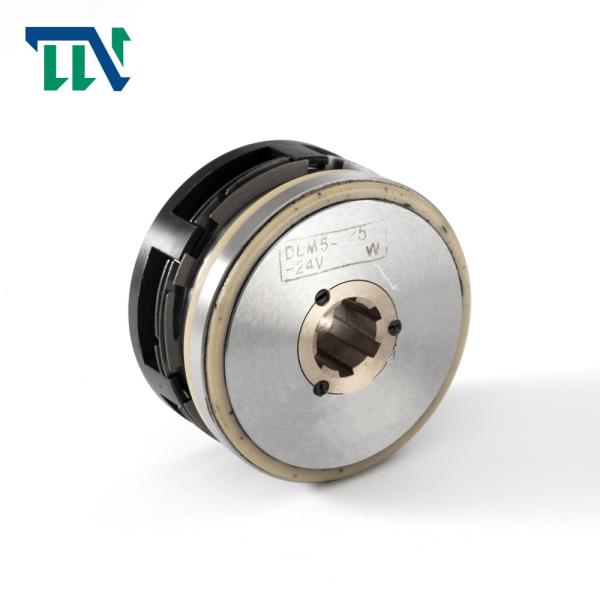

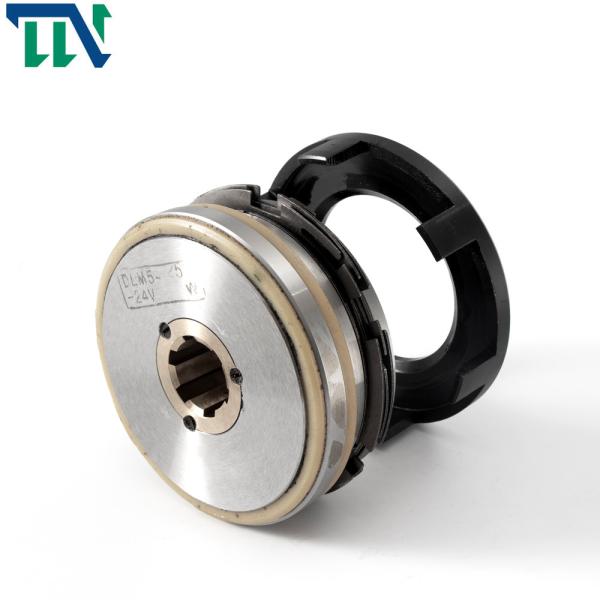

DLM5 Wet Type Multi-disc Electromagnetic Clutch

Products Introduction

DLM2 series is a multi-chip electromagnetic clutch with no slip ring and power-on operation.

The coil does not rotate, a friction pair, compact structure, large transfer moment, fast response

and no no no-load loss. The mechanical transmission system suitable for high frequency

operation can combine or separate the driven part and the active part when the active

part is running. It is widely used in packaging machinery, printing machinery, textile machinery,

light industry machinery and office machinery.

Wet multi-disc electromagnetic clutches and wet multi-disc electromagnetic brakes are mainly used in working machinery (lathes, boring machines, milling machines, multi-energy automatic processing machines), construction machinery, forging machinery, handling machinery, woodworking machinery, ships, special vehicles (PTO), Other general industrial machinery. The torque range is 0.3KGM-20KGM. The clutch is a wet multi-plate electromagnetic clutch with slip ring, which needs to work under lubricated conditions, with small friction plate wear and long service life. With small radial size and large torque, it can be widely used in the mechanical transmission system of machine tools, steel rolling, metallurgical mining, metal rolling, handling, ship fishing, etc.

Dry single-plate electromagnetic clutch: When the coil is energized, a magnetic force is generated. Under the action of the electromagnetic force, the spring plate of the armature is deformed, the moving plate and the "armature" are attracted together, and the clutch is in an engaged state; when the coil is powered off, the magnetic force disappears, the "armature" bounces back under the action of the spring force, and the clutch is in a disengaged state

Products Parameters
